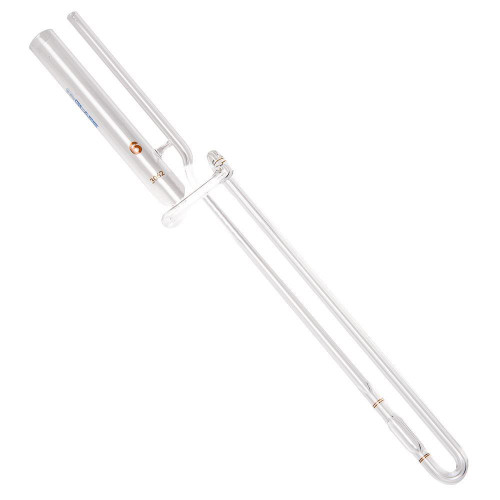

Zeitfuchs Cross-Arm Viscometer, Size 6

Zeitfuchs Cross-Arm Viscometer, Size 6

The Zeitfuchs Cross-Arm Viscometer (Size 6) is a specialized laboratory instrument designed for the precise measurement of kinematic viscosity in transparent and opaque liquids. It is particularly well-suited for testing viscous materials like asphalt binders, bitumen, and road oils, adhering to standardized test temperatures such as 140°F (60°C) and 275°F (135°C). This model is part of a series that covers an extensive viscosity range from 0.6 to 100,000 centistokes (cSt), ensuring high accuracy and repeatability.

With a viscosity range of 200–1,000 cSt and an approximate constant of 1.0 cSt/s, the Size 6 model offers exceptional precision, with a stated accuracy of ±0.2%. Its unique cross-arm design facilitates easy filling and cleaning while the viscometer remains immersed in a temperature-controlled bath, which significantly streamlines the testing workflow and reduces handling errors. The required sample volume is minimal (1 to 3mL), making it efficient for tests where sample material is limited.

For proper operation, the viscometer must be submerged to a minimum depth of 9in (230mm) in a Constant Temperature Viscosity Bath. Each unit is individually calibrated and supplied with a Certificate of Calibration, guaranteeing its accuracy and traceability.

Key Features:

• Viscosity Range: 200–1,000 centistokes (cSt)
• Approximate Constant: 1.0 cSt/s
• Efficient Design: The cross-arm structure allows the viscometer to be easily filled and cleaned while still immersed in a temperature bath.
• Small Sample Volume: Requires only 1–3mL of liquid, conserving test material.
• High Precision: Delivers results with ±0.2% accuracy.
• Compliance: Fully meets AASHTO T 201, ASTM D445, ASTM D446, and ASTM D2170/2170M standards.

Included with Purchase:

• Zeitfuchs® Cross-Arm Viscometer, Size 6
• Certificate of Calibration

Required Accessories (Sold Separately):

• Plastic Viscometer Holder: A 2in (51mm) diameter holder is necessary to secure the viscometer in the bath.
• Constant Temperature Viscosity Bath: Essential for maintaining precise temperature control as required by ASTM D445. These baths typically feature selectable temperature presets and variable control for optimal testing conditions.
