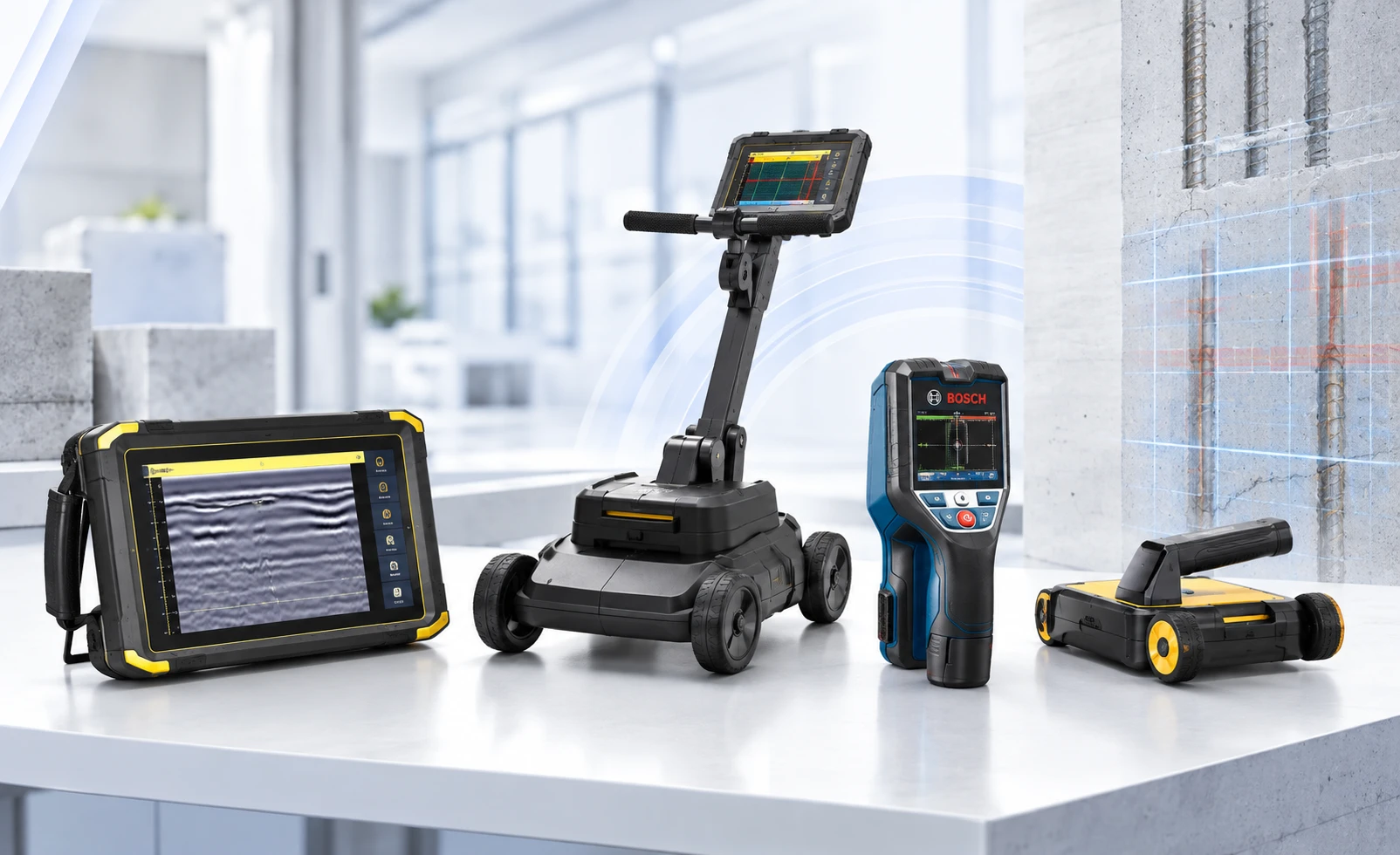

Concrete scanners—using tools like ground-penetrating radar (GPR) and thermal imaging—are non-destructive ways to see inside concrete. You can detect and map hidden or embedded objects—like cables, rebar and electrical conduit—so you can ensure the material is structurally sound and avoid hazards when you core drill, cut or install rebar, making the scanning process complete.
Structural integrity is one of the main reasons you need a concrete scanner. Scanning lets you locate critical items like cables, rebar and electrical conduit embedded in the concrete. So you don’t compromise the building when you modify or repair it. Safety is another reason. A concrete scanner prevents accidental hits on utility lines, cables or other embedded items when drilling or cutting—reducing the risk of injury and delays.
That’s where the benefits really add up. Concrete scanning prevents costly repairs and risk delays by giving you detailed maps of objects. You can plan with more accuracy and efficiency so there are fewer surprises. And that means less risk of injury or damage.
GPR is the most common technology used in concrete scanning. It sends electromagnetic waves and analyzes the reflected signals to detect objects and structural elements. Ground-penetrating radar (GPR) is non-destructive, so you don’t damage the surface. It can detect a range of embedded materials like metallic and non-metallic objects, pipes, conduits, rebar and post-tension cables. It provides accurate measurements of depths, so you can plan drilling and cutting operations more efficiently. And you get real-time data, so you can make decisions on site.
In large buildings, it is used to assess the internal condition of the concrete and ensure the structural stability to withstand expected loads. That’s where GPR really shines. It allows you to precisely map out utilities, so you can plan your work safely and efficiently.
Rebar and cables are part of the reinforced concrete. Drilling into or cutting through them can cause serious structural damage. Concrete scanning, equipped with tools such as the Profometer 630AI PM-630 rebar locator, helps you locate those materials before you start drilling or cutting. And that’s just one of the many benefits of locating rebars.
Concrete scanning is where the real work begins. That’s where you get a clear picture of what lies beneath the surface. You can plan and execute projects with confidence and efficiency. Whether it’s a small concrete slab or a massive infrastructure project, concrete and construction tools can be applied to many construction and maintenance projects.
Of course, there are some challenges. Densely reinforced areas or thick concrete can be tough to detect. Surface conditions like uneven or rough surfaces can throw off data accuracy. And interpreting that data requires experience and expertise. That’s why it’s a good idea to get a professional opinion from a structural engineer or concrete scanning expert you trust.
GPR and X-ray are both used for scanning, but they work in different ways. GPR is more versatile and less invasive. X-ray can provide higher resolution images, but it requires people to be removed from the scan area—and that can be a logistical nightmare. When choosing between GPR and X-ray, consider what you need to detect. GPR can detect both metallic and non-metallic objects. X-ray can only detect metal. GPR is also more portable and flexible, making it a good choice for large areas and complex job sites.
Scanning services are offered by many companies using GPR to scan slabs, columns and other structures. These services are essential for large construction projects, renovation work and other structural modifications. Project managers and structural engineers use GPR data to manage resources, avoid delays and keep workers safe and on schedule.Real-time data allows teams to adjust plans on the fly and reduce mistakes. Concrete scanning keeps concrete structures safe and intact while minimizing damage. By detecting cables and electrical conduits, this method allows for precise planning for drilling, concrete cutting and other construction activities.
That’s why scanning is key to construction projects succeeding. It provides accurate real-time data for engineers and contractors to make informed decisions. And that’s what keeps projects on track, on budget and safe.
Scanning is a non-destructive testing method used to locate embedded objects in concrete structures. It’s a crucial part of the construction industry, helping mitigate and prevent damage. Technology sends radio signals into the concrete and reads the “bounce” that occurs when the signal encounters a material. That bounce-back effect allows the scanner to generate accurate images automatically.
The efficiency, accuracy and safety of GPR make it an essential tool for professionals. It ensures that modifications and repairs can be carried out without compromising the structural integrity of the concrete.
When choosing scanning, you need to consider what you need to detect. GPR scanners are ideal for locating in slab-on-grade, determining the depth or thickness, and providing real-time for direct on-site evaluation. X-ray scanners are better suited for projects requiring detailed imaging of metal and plastic conduits.
In the end, it’s all about the equipment and expertise. Follow best practices and make informed decisions, avoid hitting hidden objects and stay on track.
That’s why concrete scanning is so important. It’s not just a tool-it’s a way to get your project done safely, on time and on budget.
Subsurface inspection is a critical process in construction and engineering projects to locate and identify objects, voids and other structural elements in concrete structures. Ground penetrating radar (GPR) is a widely used method for subsurface inspection, providing accurate and reliable data on the location and depth of objects or voids beneath the surface. Concrete scanning equipment like GPR scanners generates images of subsurface objects so professionals can make informed decisions on drilling anchor holes, sawing and other construction activities. By using GPR technology, construction teams can ensure concrete integrity, avoid hitting hidden objects and improve overall project safety and efficiency.
Choosing the right scanner depends on several factors, the type being scanned, the depth and size of the objects being detected and the level of accuracy required. GPR scanners are commonly used for scanning because they are non-destructive, fast and accurate. For many construction projects GPR scanners provide the best solution because of its non-destructive nature, speed and accuracy. However X-ray scanners may be more suitable for certain applications like detecting small objects or inspecting with complex geometry.
When choosing a concrete scanner consider the following:
Depth Penetration: How deep can the concrete scanner look?
Resolution: Can the concrete scanner detect small details?
Accuracy: Does the concrete scanner provide accurate results?
Ease of Use: Is the scanner user friendly and easy to operate and interpret?
Cost: What’s the cost of the concrete scanner and any associated training or maintenance?
By considering these factors you can choose the right concrete scanner for your needs.
Safety: Detecting hidden objects and defects prevents accidents and injuries.
Cost Savings: Concrete scanning minimizes destructive testing and repair costs.
Efficiency: Fast and accurate results improve project efficiency. GPR technology allows for immediate data visualization and real-time analysis to respond to project needs.
Quality Control: Detecting defects and irregularities ensures quality and integrity of concrete structures.
Construction: Detecting embedded objects and inspecting during construction. Scanning is great for detecting embedded objects in floors during construction activities.
Infrastructure: Inspecting and maintaining infrastructure like bridges and roads.
Engineering: Designing and inspecting concrete structures like buildings and foundations.
Some of the top includes:
Hilti PS 1000-B X-Scan Concrete Scanner: A GPR scanner that provides high resolution images beneath the surface. Easy to use and accurate.
Conquest 100: A GPR scanner that delivers fast and accurate results for detecting embedded objects in concrete structures. Reliable and high performance.
GSSI Utility Scan: A GPR scanner that provides high resolution images of objects beneath the surface including utilities and pipes. Unmatched data visualization and versatility.
These scanners have advanced features to suit various concrete scanning applications and provide accurate measurements and efficient project execution.
To get the best out of scanning follow these best practices:
Use the Right Tool for the Job: Choose the right scanner and settings for the specific application to get accurate results.
Calibrate: Calibrate the scanner to maintain accuracy and reliability.
Multiple Directions: Concrete structure from multiple directions to ensure all objects are detected.
Read the Data: Don’t make mistakes and make decisions.
Record the Results: Keep a record of the scan results including defects found for future reference and analysis.
