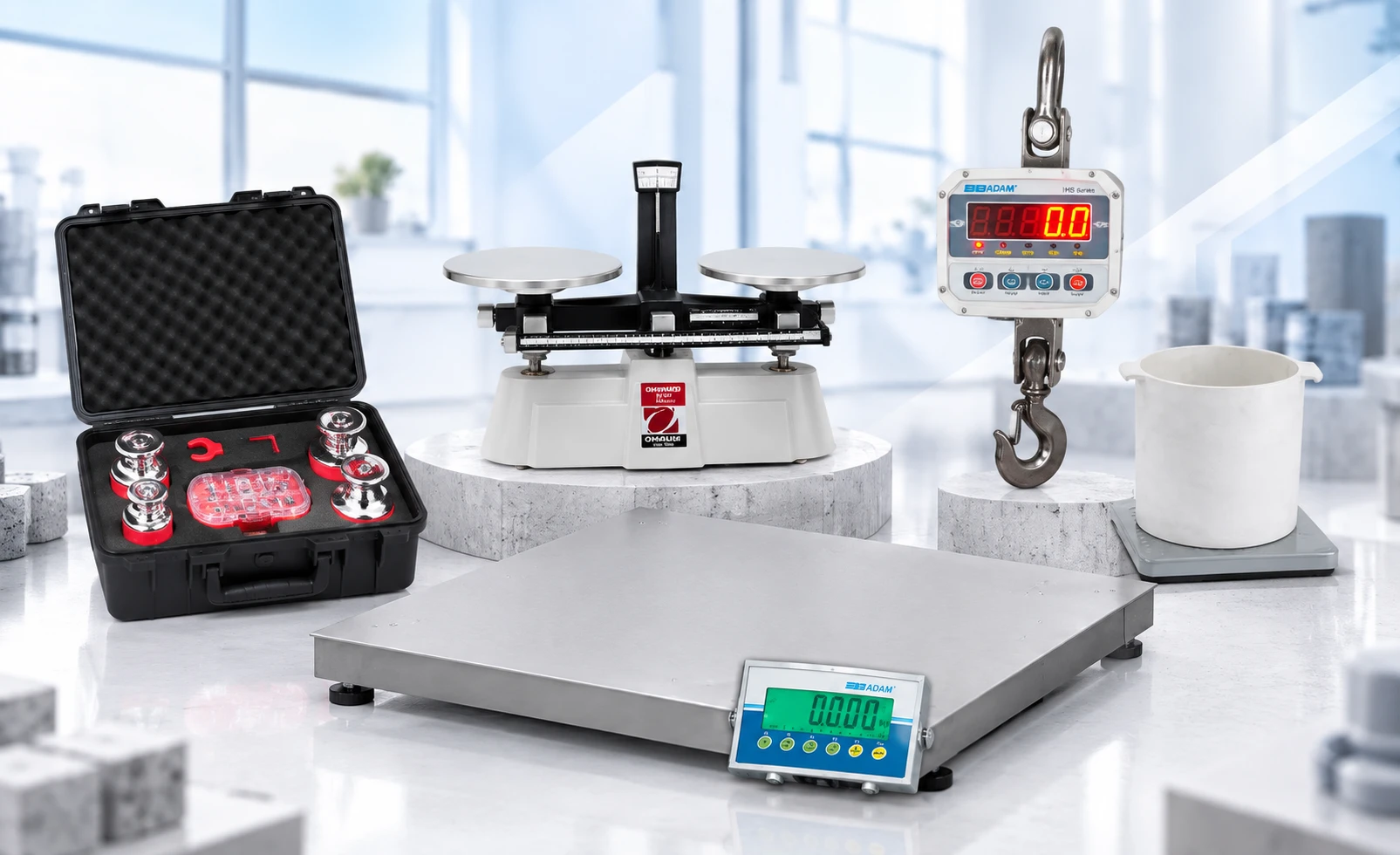

Floor & Platform Scales for Material Testing
Match the Platform to the Load and Loading Method
Choose a floor scale for loads handled at ground level: bulk containers, pallets or equipment moved onto the platform. Begin with the platform size and maximum combined load, then check the required readability. Confirm loading access—pallet truck, cart or crane—before selecting a platform size.
Platform area matters as much as capacity. A load can be within the scale's limit yet overhang the platform or exceed its safe working area. Readability is the smallest displayed increment, not a guarantee of accuracy; repeatability and installation conditions also affect results.
Compare Platform and Pallet-Beam Configurations
The Adam PT 312-5 Platform Scale lists 5,000lb capacity and 1lb readability; the Adam PT 312-10 lists 10,000lb and 2lb. These examples show different load/resolution choices. Verify the exact model, including platform dimensions and any approval or environment suffix, rather than applying one configuration's specifications across the range.
For pallet weighing, compare the Adam AELP 1000 Pallet Beam Scale and Adam AELP 2000. These two-beam sets support pallet-truck loading; check beam length, cable length, indicator compatibility and any intended non-pallet uses before adding accessories.
Choose Shared-Use and Washdown Options Carefully
Several floor scales also serve bench applications, such as the Adam CPWplus 150. Check platform height and indicator placement for each intended use rather than assuming every CPWplus configuration suits both roles.
Where cleaning or wet conditions matter, review washdown and stainless configurations such as the Adam GFK 150aM and Adam PT 110S. A stainless platform or IP-rated listing must be verified for the complete assembly—indicator, load cells and cables—before assuming washdown suitability.
Specify Indicators, Power and Installation
Confirm whether the package includes an indicator, stand and cable, or whether these are separate purchases. Check electrical supply, cable routing and the mounting or anchoring arrangement recommended by the manufacturer. Avoid inventing installation requirements: follow the instructions supplied with the selected configuration.
Where a configuration is offered with alternative indicator options, choose based on the functions you need—basic weighing, checkweighing or data output. Confirm interface compatibility with existing printers or systems rather than assuming universal connections.
Plan Verification and Complete the Setup
Use appropriate calibration weights where the instrument instructions call for them. Large-capacity platform scales may require verification procedures beyond handheld masses; confirm requirements before ordering.
For lighter bench-based loads, compare laboratory bench scales; for portable precision work, see portable balances. Do not promise services, custom fabrication or blanket compliance from the category listing alone; verify each product's documentation and suitability for the intended use.
