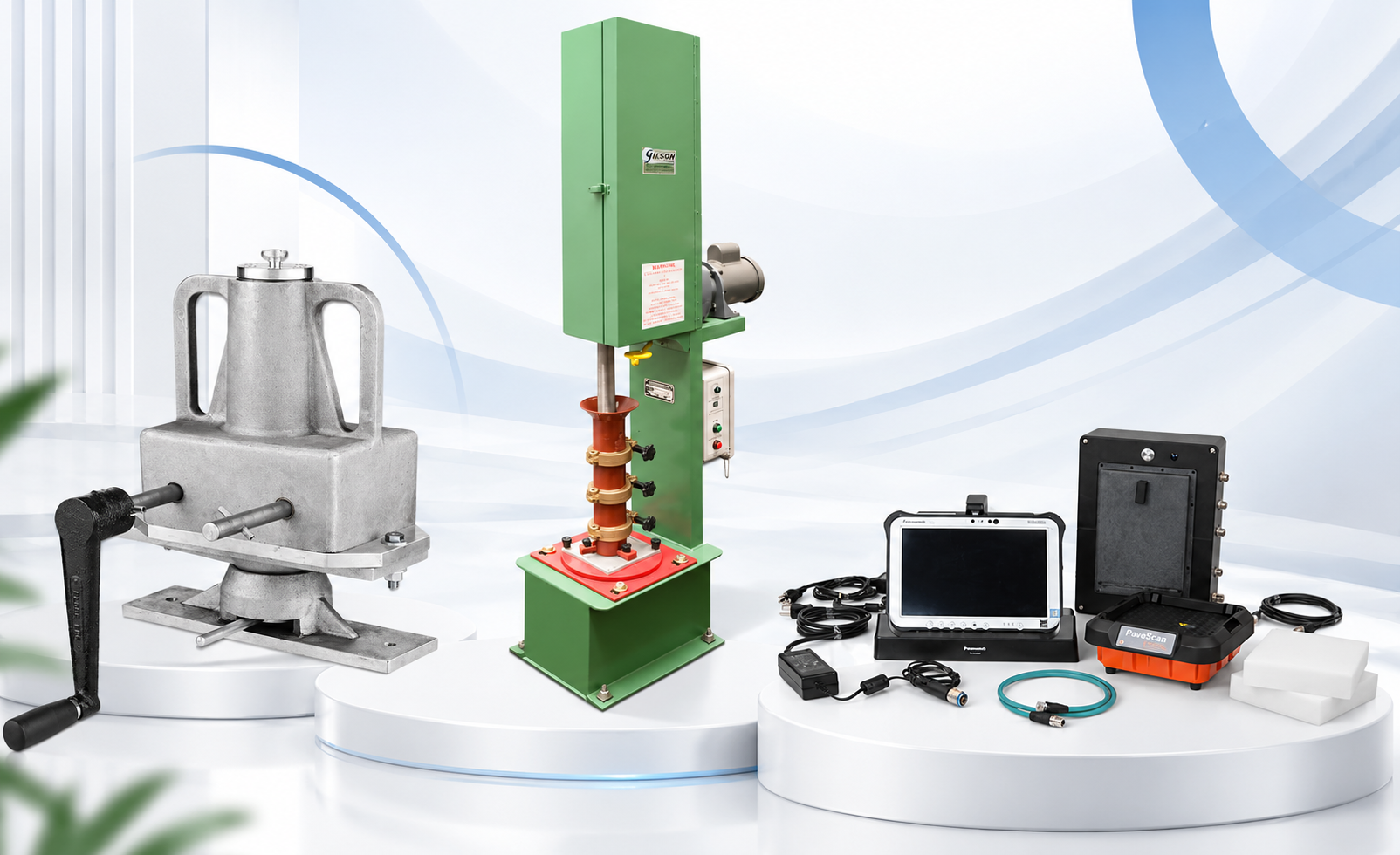

The CBR field test set is a comprehensive solution designed for efficient and accurate CBR testing, enabling engineers to make reliable CBR determinations directly on-site. Built around a robust, modified load frame, the set features a two-speed gear box with a 10,000 lbf capacity and 3.5 inches of lift, offering sufficient flexibility to meet almost any type of height requirement encountered in the field. This flexibility is essential for adapting to varying site conditions, whether testing road subgrades, foundations, or soils in road constructions.
Field tests involve forcing a penetration piston into the soil and comparing the depth of penetration in relation to the load applied, typically using a heavy piece of equipment such as a loaded dump truck as the reaction load. The CBR field test set includes all the necessary components for this process: a dial indicator for precise measurement, a load ring to monitor applied force, and a long dial support bridge and steel bridge support for stability during testing. The swivel base and connector set ensure proper alignment and adaptability, while the penetration piston and extension set allow for accurate depth measurement as the piston is driven into the soil.
To further enhance testing, the set comes equipped with a surcharge plate and a range of surcharge weights, including slotted surcharge masses, to simulate real-world loading conditions. The magnetic holder and magnetic indicator provide secure and accurate placement of the penetration dial gauge, ensuring consistent readings throughout the test. The inclusion of a proving ring adds another layer of accuracy, allowing for precise load measurement during CBR testing.
Designed in accordance with ASTM recommendations and Army Corps standards, the CBR field test set is engineered to quickly yield reliable relative strength determinations without the need for lab tests. This makes it an invaluable tool for engineers and technicians who need to assess soil strength and capacity in real time, directly in the field. The test set is also supported by a full range of replacement parts, including connector sets, piston extensions, and surcharge masses, ensuring long-term functionality and compliance with industry standards. For related Field Density Tests, including soil resistivity testing equipment, Certified MTP offers a variety of options.
With its comprehensive array of components and accessories, the CBR field test set is ideal for making CBR determinations in a variety of field conditions. The equipment is designed to work seamlessly together, providing accurate, repeatable results that inform critical decisions in road constructions, foundation design, and other geotechnical applications. By relying on the CBR field test set, engineers can confidently evaluate soil strength, optimize pavement thickness, and ensure the durability of infrastructure projects—all while benefiting from the speed and efficiency of on-site testing.
California Bearing Ratio Equipment is tough enough for long term soil testing and small enough to save space in your lab. This equipment meets California Bearing Ratio, ASTM test standards, Federal Aviation Administration, and Federal Highway Administration for laboratory, compacted or in-place soils and base course materials. The procedure involves preparing test materials, testing and calculating CBR test values. The set includes various accessories such as additional weights and tools to enhance functionality.
This test measures the load bearing capacity of a soil sample by applying a standard pressure to it in a load frame. The CBR machine is used to evaluate soil strength by measuring soil penetration resistance during testing. These tests involve forcing a piston into the soil to measure penetration depth against the load applied.
CBR value is also used to predict how the soil will perform under traffic and environmental conditions. CBR load values are used to estimate subgrade surface modulus and guide engineering decisions in building foundations. The load ring is a critical component for making soil strength determinations. The magnetic indicator ensures precise measurements during soil penetration tests. The piston extension is part of the essential components for the CBR field test set. Replacement parts are available for maintaining the functionality of the CBR field test set. The swivel head is included as part of the essential tools and equipment.
California Bearing Ratio is a basic test in civil engineering used to measure the mechanical strength of laboratory compacted soils. This test measures the load bearing capacity of a soil sample by applying a standard pressure to it. This test is used in road and bridge construction projects as it gives valuable information about the soil’s ability to carry loads. Testing efficiently yields strength determinations in situ, without needing laboratory analysis. By determining soil strength test of CBR helps geotechnical engineers design safe and sustainable infrastructure. The test measures how well a soil sample can withstand pressure hence it is an essential tool in evaluating soil for construction purpose. The test involves inserting a piston into the soil and measuring the depth of penetration against the applied load, often using heavy equipment like dump trucks as a load. Comparing the depth of penetration against the applied load enables quick on-site assessments. Connector sets are part of the comprehensive CBR field test set, which includes various components designed to meet specific engineering standards. A field CBR test set typically includes equipment such as jacks, load rings and various weights for conducting tests. Tests are useful in determining soil strength without the need for tests. The penetration dial gauge, with features like a magnetic holder, plays a crucial role in measuring soil penetration. Testing can quickly yield strength determinations, allowing for immediate assessment in the field. This strength determination is essential for evaluating soil strength. CBR does not rely on traditional tests, making it a more efficient alternative. Surcharge masses are part of the components included in the CBR field test set. Three masses are essential components of the CBR field test set, designed according to U.S. Army Corps of Engineers and ASTM standards.
The California Bearing Ratio is a crucial component in road design, as it helps determine the thickness of subgrade and pavement layers. This penetration test measures the resistance of soil to penetration by a standard piston, making it indispensable in road constructions for evaluating soil bearing capacity. In the field, the CBR test is typically performed using a field set, which includes essential components like dial indicator, penetration piston and surcharge plate.
The CBR test is used to evaluate soil bearing capacity and is often used in conjunction with lab to get a complete understanding of soil properties. The set includes a proving ring with dial indicator to measure soil penetration accurately. A magnetic holder holds the dial gauge in place and the long dial support bridge provides stability during testing.
In road design, the CBR test results are used to calculate the required thickness of subgrade and pavement layers so roads can withstand expected traffic loads. The test also evaluates foundation stability and determines the required depth of excavation.
CBR test is used in road design to determine the thickness of subgrade and pavement layers. The test results are used to estimate subgrade surface modulus, a key parameter in pavement design. The relation between soil penetration depth and the load applied during CBR is critical for accurate strength determinations without relying on laboratory methods. CBR value is also used to predict how the soil will perform under traffic and environmental conditions. Higher CBR value means higher soil strength and load bearing capacity which is required for roads to withstand heavy traffic and harsh weather conditions. By providing accurate soil strength data, including the use of slotted surcharge weights, the CBR test ensures roads are built to last.
CBR tests are used to determine soil strength without tests. The CBR test procedure involves preparing a soil sample, compacting it to a certain density and then applying a standard load using a load frame. The test measures the penetration depth by forcing a piston into the soil sample under the applied load and then calculates the CBR value. The testing equipment includes an indicator to ensure precise measurements during soil penetration tests. CBR can quickly give strength determinations, so you can make assessment in the field. This method gives a strength determination by applying pressure to the soil and measuring the depth of penetration. CBR does not rely on traditional tests, so it’s an efficient and practical alternative. There are two standardized tests, ASTM D-1883 and AASHTO T-193. The test procedure involves several steps such as collecting soil samples, preparing the samples, soaking tank and calculating the CBR value. This methodical approach ensures accurate and reliable results, so CBR test is a trusted test in Field Density Test Equipment for Soil Testing.
Although CBR test is a widely used and established test, it has its limitations. The test is sensitive to sample specimen preparation and compaction methods which can affect the results. CBR test does not account other important soil properties such as shear strength and compressibility which can affect the soil behavior. Future development of the test may involve use of advanced technology such as machine learning and artificial intelligence to improve the test accuracy and efficiency. Researchers are also looking into alternative test method such as dynamic cone penetrometer (DCP) test which can provide more comprehensive information about the soil behavior. These developments will improve the reliability and scope of soil testing in civil engineering projects.
CBR Accessory Kit includes Molds, Surcharge Weights, Swell Plates, Filter Screens for ASTM D1883 and AASHTO T193.
