Field density tests are the unsung heroes of construction. They measure the in-place density of soil to ensure that the soil is stable and can support the weight of the structures built on it. Field density testing is a critical part of construction work to ensure safety and compliance. Achieving maximum soil density is crucial for ensuring the strength and stability, which directly impacts the durability of the structures built on it. (That’s a lot of weight.) You do this by digging a hole, doing a density test and comparing the results to a standard density. By testing the density and moisture of the soil, engineers and construction pros can make informed decisions about compaction methods and verify if the desired level of compaction has been achieved, such as through measuring specific gravity in soil. Compaction is key to the stability and longevity of structures. Compaction efforts must meet specific standards for different types of construction work. Without it, you’re building on shaky ground.
Soil density is a critical parameter in construction and engineering projects. It directly affects the structural stability and load-bearing capacity. Think of it like a seesaw: the denser the material, the more weight it can support. Soil density is the mass per unit volume, typically expressed in weight per unit volume (pounds per cubic foot or kilograms per cubic meter). Understanding soil density is crucial to determining the best compaction methods and ensuring it can support the intended loads without settlement or failure.
There are several types of soil density. Dry density is the weight per unit volume excluding the weight of water. Wet density includes the weight per unit volume plus the weight of water. Saturated density is the weight of soil per unit volume when it’s fully saturated with water. Relative compaction is the measure of the field density compared to its maximum dry density. That’s the measure of how well compacted your material is.
Soil density is key to designing and building stable and durable structures. It affects settlement and bearing capacity. Knowing the soil density means construction projects are built on solid ground—and that minimizes the risk of structural failures. Proper compaction is required in most construction projects to ensure safety and stability.
Soil density testing is not just about complying with regulations. It’s about ensuring the safety and durability of your construction. It’s about preventing issues like uneven settlement, structural damage and severe drainage problems. Soil density testing is for projects from skyscrapers to roads and residential landscapes. It’s about building a solid foundation for any structure.
The right compaction methods and equipment can make all the difference. Soil compaction tests or density tests involve testing and monitoring the soil compaction and density characteristics. These tests are critical to construction and engineering sectors. They need to know the soil compaction level before work can start. By testing the density of a soil sample, you can determine if the backfill material for a construction project has the correct compaction reading to support foundations, highways, roads, athletic fields and other earth retaining structures.

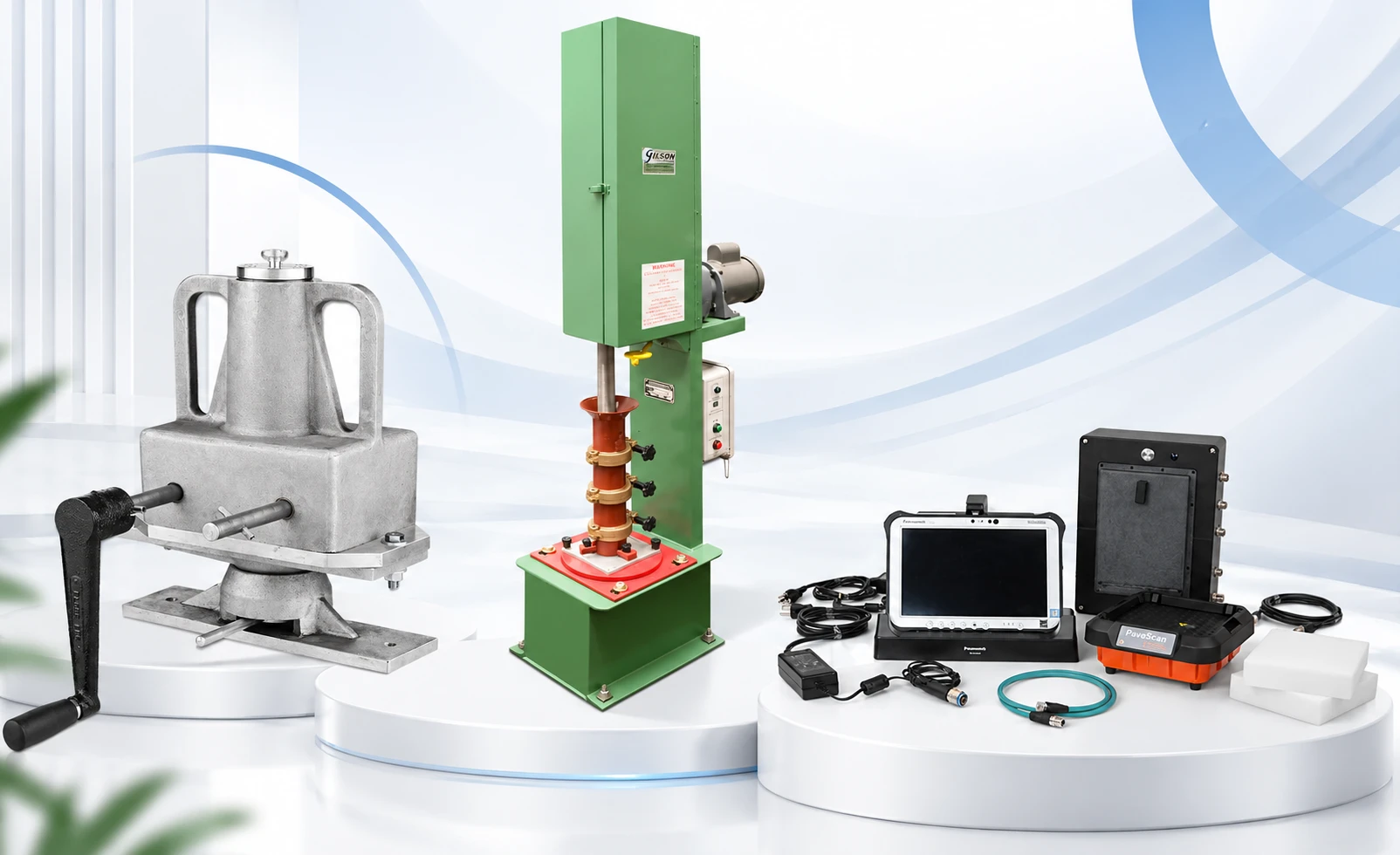

Field density test equipment (FDT) is used in both field and laboratory settings. There are various methods used for field density testing, including the balloon density test. This test is known for its accuracy and ease of use. Certified MTP has various field density test equipment to suit your soil testing needs. So why wait? Learn more about compaction testing and field density test equipment.
Field density tests are essential for engineers to provide recommendations when building structures. At the heart of that process is determining the maximum dry density and optimum moisture content of soil. The Proctor test is a laboratory standard for that. Proctor test results are used to assess if field compaction meets project requirements. But one of the most advanced methods for measuring density and moisture content in the field is the nuclear density test. That uses radioactive sources and is precise, but requires specialized equipment and trained personnel. Nuclear density gauges are portable devices used for rapid, on-site soil compaction testing.
Soil density is key to soil compaction tests. Compaction tests help you achieve that maximum density to ensure stability and durability in your construction. To do a soil compaction test, you first need to determine the maximum dry density of the soil in the lab through moisture density testing. It is important to use samples from the same soil for accurate comparison. Then you can measure the final compaction in the field by comparing the field value to the lab value. The laboratory value for maximum dry density is used as a reference. You have several methods to choose from for compaction tests. The chosen method should align with project standards and regulatory codes to ensure successful implementation. The sand cone method and balloon density testing are two of the most popular.
The sand cone method is used in the field to check if you’ve reached your desired compaction level. It measures bulk-the total mass of soil per unit volume, including both solids and pore spaces. To use the sand cone method, you’ll need field density test equipment. That includes a top-rated sand cone apparatus and sand. For concrete testing in fresh field conditions, equipment like the concrete funnel for slump cone filling is also essential. The sand cone apparatus is a highly accurate and reliable testing technique. It’s recognized for its effectiveness and ease of use.
When you begin a sand cone test, place a flat base plate on a clean, level area of the test site. Use that plate as a guide to excavate the necessary amount of compacted soil material. The total volume of soil removed depends on the maximum particle size of the soil. You can make excavation easier with field density test equipment accessories like mallets, chisels and scoops. Carefully collect your excavated material and store it properly. The sample should be carefully collected to ensure accurate results.
You start a sand cone test by filling your sand cone with a pre-weighed amount of density sand. Then you invert it onto the density plate over the opening. Open the rotary valve to let the density sand flow into the excavated hole—this is the sand filling process. After that, weigh the sand cone with the remaining sand. You use an equation to divide the mass of sand in the hole by the initial density of the sand. The calculation uses the known density of the calibration sand. Then you perform additional calculations to determine the wet and dry densities for verification. The wet weight of the soil sample is used before moisture correction.
The nuclear density test is a non-destructive method to measure density and moisture content. It uses a nuclear density gauge that emits gamma radiation into the soil and measures the amount of radiation scattered back to the gauge. The gauge calculates the density and moisture content based on that amount of radiation scattered. Direct transmission is a mode where the probe is inserted into a pilot hole to measure density directly through the soil.
The nuclear density test is used in construction projects because of its quick and accurate results. That makes it very useful for measuring soil density and moisture content in deep or hard-to-reach areas like beneath pavement or in embankments. The precision and speed of the nuclear density test make it a very useful tool to ensure proper compaction and stability, especially in earth embankments and other structural fills.
Balloon density testing is another field density test. The void ratio-measuring the proportion of voids to solids in soil-is a crucial factor in compaction. Balloon density testing is well-established, accurate and reliable. The equipment is user-friendly, cost-effective and doesn’t require any specialized training. Balloon testing does not require extensive training or a special license.
To use balloon field density equipment, you start by excavating a test hole where the soil is collected and set aside. A balloon field density test machine is then placed over the hole. Instead of using sand to fill the hole, you calibrate a water vessel to pressurize a rubber balloon into the excavation. The gauge on the rubber balloon apparatus measures the volume of water displaced so you can calculate the total volume. That field density test equipment is more user-friendly than the sand cone method, which contributes to its popularity. It’s also ideal for quick and repeated testing since it uses contained water.
Field density tests are a crucial step in ensuring the stability and durability of structures. Before you start, the site must be cleared of any debris, vegetation or obstructions. The area must be levelled and compacted to ensure accurate results.
To conduct a field density test, you excavate a test hole to a depth of about 12 inches (30 cm) using a hand auger or a mechanical excavator. The hole should be large enough to accommodate the testing equipment. You take a sample from the test hole and store it in an airtight container for further analysis.
Field density tests are a crucial part of ensuring proper compaction and stability in construction projects. That’s where these tests come in—and why they’re so important.
Moisture content measurement is critical in determining the dry density. You measure this using a speedy moisture tester or a nuclear gauge. That’s because moisture content measurement is key to understanding how dense it can be. Moisture determinations are essential for accurate compaction analysis.
Density measurement follows the same principle. You use a sand cone, balloon gauge to measure. Each method has its advantages, but all aim to provide an accurate measurement.
Data analysis is where the real work happens. You collect data from the field density test and use it to determine the moisture content and other relevant parameters. This analysis helps you check if the compaction meets the project requirements.
Reporting the results of the field density test is where you get to see the fruits of your labor. You report the data in a format that’s easy to understand, complete with graphs, charts and tables. That way, you can use the data for future reference and comply with regulatory standards.
When you follow these steps, construction professionals can ensure their field density tests are accurate and reliable. And that provides essential data for soil compaction and stability.
Maximum dry density (MDD) and optimum moisture content (OMC) are two important parameters in soil compaction. MDD is the max density it can achieve when compacted to its optimum moisture content. OMC is the moisture content at which the soil achieves its MDD. These parameters are typically determined through laboratory tests.
Understanding MDD and OMC is crucial in determining the right compaction methods. Compacting soil to its MDD ensures it can support the intended loads without settlement or failure. Compacting soil to a density lower than its MDD will result in reduced load-bearing capacity and increased settlement. By achieving the right balance of moisture content and compaction, construction professionals can ensure the longevity and stability of their structures.
Field density tests are essential in ensuring that happens. Here’s how you do one:
First, you prepare the test site-clearing it of any debris or obstruction. Then you compact the soil to the desired level. Next, you excavate a test hole to the required depth. You collect the excavated soil and set it aside for further analysis.
Several factors can affect field density test results. Soil type and composition, moisture content, compaction method and equipment used, and test procedure and technique all come into play. Understanding these factors is key to getting accurate and reliable test results.
Environmental conditions—temperature, humidity and all the rest—can really make or break the accuracy of your test results. That’s why it’s so crucial to factor those conditions in when you’re interpreting your data.
Regulations and compliance are a big part of soil density testing. In the United States, the American Society for Testing and Materials (ASTM) sets standards for soil density testing. That includes the ASTM D1556 standard for the sand cone method, the ASTM D2167 standard for the balloon density test, and the ASTM D422 standard for particle size analysis.
That’s where the real value of field density testing comes in. It’s not just about getting the right numbers—it’s about using those numbers to build a safe, stable structure.
What is the purpose of field density testing? To determine the density and moisture content of soil to ensure proper compaction and load-bearing capacity.
What are the different field density test methods? There are several, including the sand cone method, the balloon density test and the nuclear density test.
How do I choose the right field density test method or field scale for my project? That depends on your project requirements, soil type, moisture and compaction method.
