Asphalt Flash Point Testers: Cleveland & Tag Open-Cup Apparatus
Select the Apparatus for the Required Procedure
Flash point testing requires apparatus matched to the material and specified test method. This category includes Cleveland and Tag open-cup equipment; neither should be treated as a closed-cup tester. Confirm the required procedure before selecting an instrument or comparing results from different methods.

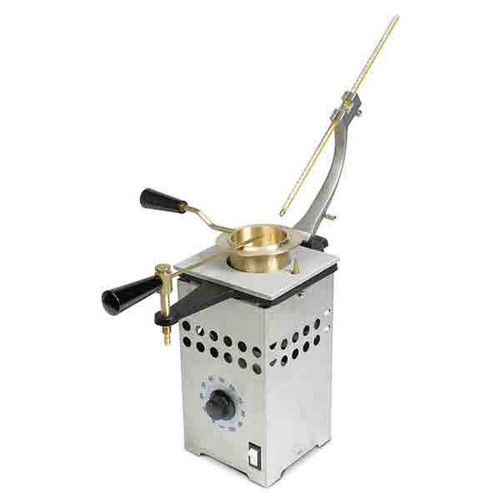

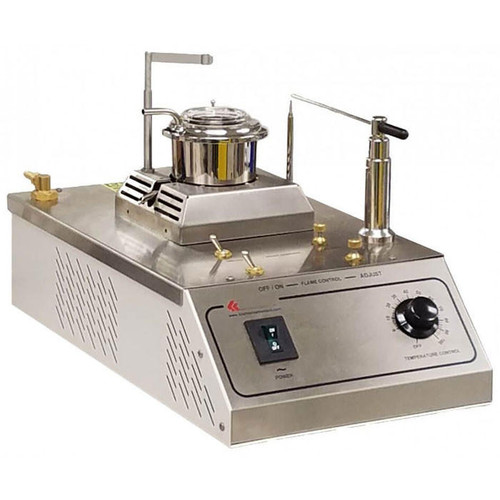

The Cleveland Flash Point Tester uses an open cup and test-flame arrangement. The Tag Open Cup Apparatus is a separate instrument listed for applications including cutback asphalt. Check the documented application and operating limits of each unit rather than choosing by the shared flash-testing label.
Review Heating, Ignition and Temperature Measurement
Compare the heating controls, ignition arrangement and thermometer positioning provided with the selected tester. The Cleveland listing identifies a test-flame burner requiring an external gas supply. Confirm supply connections and installation requirements for the exact configuration.

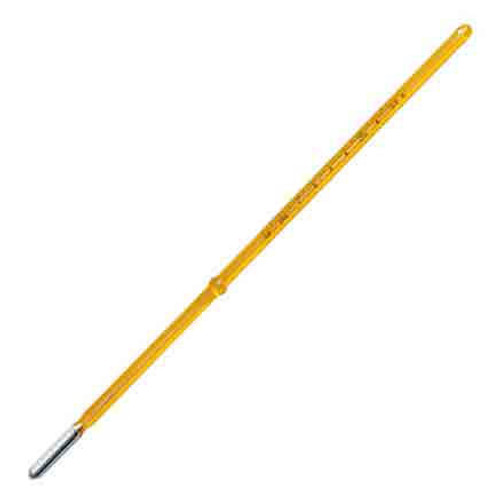

Temperature-measuring equipment is listed separately from both testers. Verify the required instrument specification and documentation against the procedure; do not substitute a thermometer solely because its maximum temperature is high enough. Check compatibility and any applicable restrictions before choosing a mercury, non-mercury or digital arrangement.
Choose Compatible Cups and Replacement Parts
The Replacement Flash Cup for the Cleveland Flash Tester is a brass component for the Cleveland apparatus. The Tag listing uses a glass sample cup. These cups serve different systems and should not be interchanged.
A Heater Coil for the Cleveland Flash Tester is also listed. Confirm the supported unit, electrical configuration and replacement specification before ordering a coil. A related product name does not establish compatibility with every version of the tester.
Plan the Complete Laboratory Setup
Check electrical supply, bench space, ventilation and gas requirements using the manufacturer's instructions and your laboratory's approved safety procedures. Identify which components ship with the apparatus and which temperature instruments, supplies or replacement parts must be ordered separately.
Use the prescribed handling, heating and ignition procedure for the sample. A flash point result does not establish all occupational exposure or handling requirements, and no single tester replaces the need for laboratory risk assessment and trained operation.
