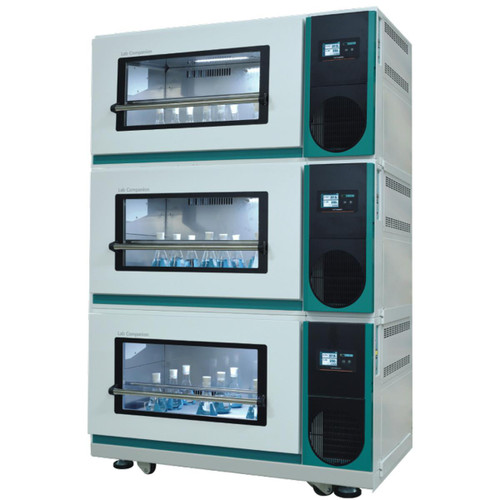

ISS-7200 Incubated Shaker (Multi-Stackable), 230V

ISS-7200 Multi-Stackable Incubated Shaker, 230V

The ISS-7200 is a high-capacity, triple-stackable incubated shaker designed for versatility and reliability in demanding laboratory environments. It combines precise temperature control with robust shaking capabilities, making it ideal for a wide range of applications, including cell cultures, fermentation studies, and molecular biology.

Key Features & Benefits

High-Performance Incubation and Shaking

• Wide Operating Range: Achieve experimental conditions for diverse applications with a temperature range of Ambient +10°C up to 80°C and a shaking speed of up to 400 rpm.
• Flexible Operation: Choose from three modes to suit your needs: simultaneous temperature and shaking, temperature only, or shaking only.
• Stable & Quiet Operation: A specialized shaking structure minimizes vibration, ensuring a stable environment for your samples. The direct-drive motor is engineered for outstanding durability and comes with a 5-year warranty, providing smooth and consistent agitation for even high-load samples.

Designed for User Convenience

• Easy Sample Access: The convenient glide-up door allows for effortless loading and unloading of samples.
• Intuitive Control: A full-color touch display provides an intuitive interface for setting and monitoring parameters. Accurate temperature and speed are maintained via microprocessor PID control with auto-tuning and calibration functions.
• Mobile Monitoring: Stay connected to your experiments from anywhere. With the optional LC GreenBox, you can monitor the shaker's status in real-time using the LC Connected mobile app.
• Effortless Observation & Maintenance: High-brightness, low-power LED lighting illuminates the interior for clear observation. A built-in spill drain port simplifies cleaning and maintenance.

Unmatched Safety & Reliability

• Advanced Over-Temperature Protection: A dual-layer electronic and mechanical system (A-OT and B-OT) provides redundant safeguards to prevent overheating and protect your valuable samples.
• Intelligent Safeguards: The controller lock function prevents accidental changes to your settings, while a soft start/stop function protects samples from sudden jolts. The unit also features overcurrent protection and smart self-diagnostics that continuously check for abnormal conditions and trigger alarms if deviations occur.
• GMP & Data Integrity: For labs requiring stringent data management, the ISS-7200 can be integrated with the optional 21 CFR Part 11 compliant LC DataKeeper, making it suitable for GMP audits.

Sustainable Design

• The refrigerated models (R models) feature an eco-friendly design using R-600a refrigerant to minimize greenhouse gas emissions and support sustainability goals.

Technical Specifications

Model: ISS-7200

• Temperature Range: Ambient +10°C to 80°C (Amb. +18°F to 176°F)
• Temperature Fluctuation: ±0.1°C at 37°C
• Temperature Variation: ±0.6°C at 37°C
• Shaking Motion: Orbital
• Speed Range: 30 to 400 rpm (Max speed varies with load and stacking)
• Amplitude: 50.8 mm / 2.0 in (diameter)
• Timer: Up to 999 hours, 59 minutes
• Chamber Volume: 198 L / 7.0 cu ft
• Platform Dimensions (W x D): 755 × 520 mm / 29.7 x 20.5 in
• Internal Dimensions (W×D×H): 809 × 624 × 393 mm / 31.9 × 24.6 × 15.5 in
• External Dimensions (W×D×H): 1307 x 996 x 755 mm / 51.5 x 39.2 x 29.7 in (single unit)
• Net Weight: 300 kg / 661.4 lbs
• Electrical Requirements: 230V, 50/60Hz, 3.7A
