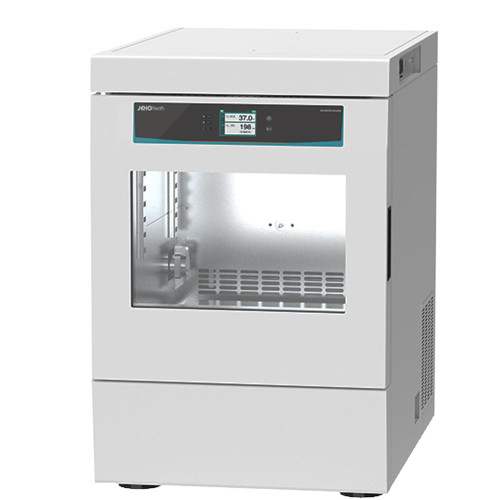

ISS-3075 Incubated Shaker (Stackable), 230V

ISS-3075 Incubated Shaker (Stackable), 230V

The ISS-3075 Incubated Shaker offers exceptional performance and versatility for laboratories, research facilities, and biotech environments. Designed to maximize space, enhance sustainability, and ensure safety, this shaker delivers precise control and reliability to meet a wide range of experimental needs.

Key Features:

Space-Efficient Design

• Double stacking capability: Save valuable lab space with a compact, stackable design.
• Optimal Shaking Conditions: Operates at up to 500 rpm and 80°C, allowing for a variety of experimental setups.

Flexible Operating Modes

• Three Modes in One: Choose from Temperature & Shaking, Temperature only, or Shaking only to suit your experiment’s requirements.
• Integrated Internal Power Outlet: Power additional devices conveniently within the chamber.

Advanced Shaking Technology

• Minimized Vibration: Ensures stable operation for optimal sample handling.
• Orbital Shaking Motion: Features a 19.1mm (0.75-inch) diameter amplitude for precise motion.

Sustainability in Mind

• Eco-Friendly Refrigerant: Uses R-600a refrigerant (for R models) to reduce greenhouse gas emissions.
• Energy-Efficient LED Illumination: Low-power, high-brightness LEDs make it easy to observe samples while saving energy.

User Convenience

• Accurate Control: Microprocessor PID control and auto-tuning guarantee precise temperature and rpm settings.
• Mobile Monitoring: With LC Connected and the optional LC GreenBox, monitor your shaker anytime from your smartphone.
• Countdown Timer: Program shaking operation for up to 999 hours and 59 minutes.
• Intuitive Interface: Enjoy ease of use with a color touch display for fast operation and settings adjustment.
• Easy Maintenance: Spill drain port provides effortless cleaning and internal upkeep.
• 21 CFR Part 11 Compliance: Optional integration with LC DataKeeper for GMP audits.

Safety First

• Advanced Over-Temperature Protection: Includes both electronic (A-OT) and backup (B-OT) systems to ensure reliable temperature control.
• Independent Safety Sensors: A secondary precision sensor adds another layer of fail-safe temperature monitoring.
• Overcurrent Prevention: Protects against damage or interruptions if objects obstruct the shaker.
• Soft Start/Stop Mechanism: Prevents sample spills and ensures smooth operation.
• Self-Diagnostic System: Detects and alerts users to abnormal conditions in real time.

Smart Functionality

• Real-Time Alarms: Notifies users of discrepancies between set and actual rpm/temperature.
• Automatic Restart: Resumes operation automatically after power restoration.

Technical Specifications:

• Model: ISS-3075
• Temperature Range (℃/℉): Amb. +5 to 80 / Amb. +9 to 176
• Fluctuation (at 37℃): ±0.1℃ / ±0.18℉
• Variation (at 37℃): ±0.5℃ / ±0.90℉
• Shaking System: Orbital
• Amplitude (mm/inch): 19.1 / 0.75
• Speed Range (rpm): 20 to 500 (stackable: 20 to 250)
• Speed Stability (rpm): ±1
• Timer (Count-Down): 999 hours 59 minutes
• Max Load (rpm): 500 (10kg/22 lbs), 400 (15kg/33 lbs), 250 (stacked)
• Volume (L/cu ft): 80 / 2.8
• Platform Dimensions (W×D, mm/inch): 350×350 / 13.8×13.8
• Interior Dimensions (W×D×H, mm/inch): 440×440×418 / 17.3×17.3×16.5
• Exterior Dimensions (W×D×H, mm/inch): 578×815×854 / 22.8×32.1×33.6
• Shelves (Standard/Max): 2 Standard / 8 Max
• Net Weight (kg/lbs): 153 / 337.3
• Electrical Requirements: 230V, 50/60Hz, 6.2A

The ISS-3075 is designed for laboratories seeking a reliable, versatile, and efficient shaking solution. With its eco-friendly features, intuitive controls, and robust safety mechanisms, this incubated shaker meets the highest standards for performance and sustainability.
