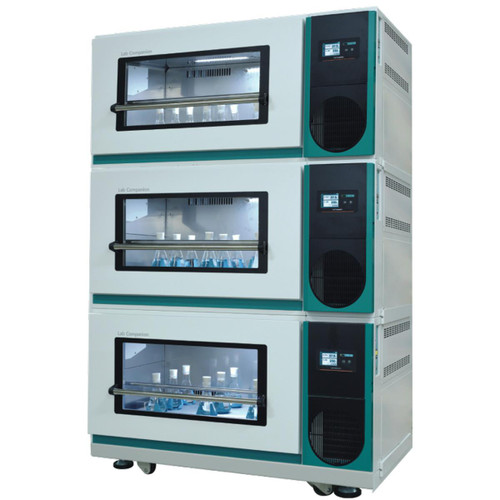

ISS-7200R Incubated Shaker (Multi-Stackable)

ISS-7200R Multi-Stackable Incubated Shaker

The ISS-7200R is a high-capacity, triple-stackable incubated shaker engineered for a wide range of demanding laboratory applications, from cell culture to protein expression. Combining precision performance with user-centric design, this unit delivers exceptional reliability and efficiency.

Key Features & Advanced Functionality

High-Performance Shaking and Incubation:

• Wide Temperature Range: Achieve precise thermal conditions from ambient -20°C (minimum 4°C) up to 80°C, accommodating diverse experimental protocols.
• Powerful Orbital Shaking: A robust shaking mechanism provides speeds from 30 to 400 rpm, ensuring uniform mixing and aeration for your cultures. The direct-drive motor is engineered for minimal vibration and outstanding durability, backed by a 5-year warranty.
• Flexible Operation: Choose from three modes to suit your needs: Temperature & Shaking, Temperature only, or Shaking only.

Designed for Convenience and Usability:

• Space-Saving Stackable Design: Maximize your lab space by stacking up to three units without compromising performance.
• Easy Sample Access: The smooth glide-up door provides effortless access to the chamber, simplifying the process of loading and unloading samples.
• Intuitive Control: A vibrant, full-color touchscreen display allows for easy programming and monitoring. The system also features microprocessor PID control and temperature auto-tuning for unparalleled accuracy.
• Remote Monitoring: Stay connected to your experiments from anywhere with the LC Connected mobile app, which provides real-time monitoring and alerts (requires optional LC GreenBox).
• Internal Visibility: High-intensity, low-power LED lighting illuminates the chamber, allowing for clear observation of your samples without disturbing the internal environment.

Uncompromising Safety and Reliability:

• Multi-Layered Over-Temperature Protection: The advanced electronic system (A-OT) is complemented by a mechanical backup system (B-OT), ensuring your valuable samples are protected from temperature excursions even in the event of an electronic failure.
• Operational Safeguards: Features like soft start/stop shaking, a controller lock function, and overcurrent protection prevent spills, unauthorized changes, and mechanical damage.
• Smart Self-Diagnostics: The shaker continuously performs real-time diagnostics to monitor its operational status and will trigger an alarm if any deviations from setpoints or system errors are detected.
• GMP & Data Integrity: For labs requiring regulatory compliance, the ISS-7200R can be integrated with the optional LC DataKeeper software, which is fully compliant with 21 CFR Part 11.

Technical Specifications

• Temperature Range: Ambient -20°C to 80°C (Min. 4°C)
• Temperature Fluctuation (at 37°C): ±0.1°C
• Temperature Variation (at 37°C): ±0.5°C
• Shaking Motion: Orbital
• Shaking Speed Range: 30 to 400 rpm (reduces to 30-200 rpm when stacked)
• Amplitude: 50.8 mm (2.0 inches)
• Max. Load & Speed: Up to 15 kg at 250 rpm (single unit), 15 kg at 200 rpm (stacked)
• Chamber Volume: 198 L (7.0 cu ft)
• Platform Dimensions (W x D): 755 × 520 mm (29.7" x 20.5")
• Exterior Dimensions (W x D x H): 1307 x 996 x 755 mm (51.5" x 39.2" x 29.7") per unit
• Net Weight: 320 kg (705.5 lbs)
• Electrical Requirements: 120V, 60Hz, 10A
• Refrigerant: R-600a (Eco-friendly)
