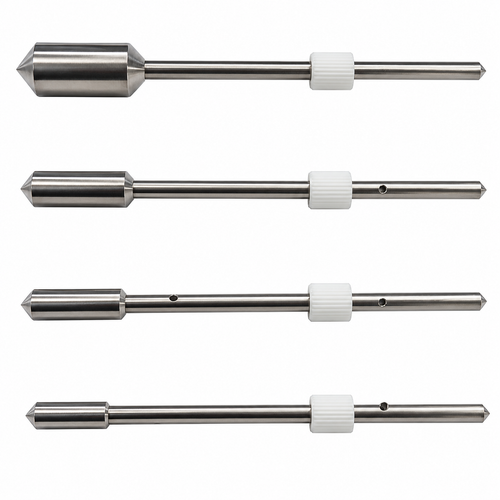

TR Series Viscosity Spindles Set for Rotational Viscometer

TR Series Viscosity Spindles Set for Rotational Viscometer

The TR Series Viscosity Spindles are designed for use with both Standard and High-Performance Rotational Viscometers. The set includes four spindles, ranging from the lower viscosity TR8 to the higher viscosity TR11, giving labs the flexibility to test a wide range of viscosity levels. Spindles can be purchased individually or as a complete set of four. Sample Chambers are sold separately to fit each spindle, and additional stainless-steel chambers and spindles are recommended for labs running multiple samples simultaneously.

Complete Set Includes: TR8, TR9, TR10, and TR11 Spindles

TR8 Spindle

• Shear Rate: 0.92N
• Standard Viscometer Range: 14 to 3,000,000 mPa.s
• High-Performance Viscometer Range: 2 to 7,000,000 mPa.s
• Most commonly used for asphalt binder testing

TR9 Spindle

• Shear Rate: 0.34N
• Standard Viscometer Range: 75 to 16,000,000 mPa.s
• High-Performance Viscometer Range: 12 to 37,000,000 mPa.s
• Ideal for medium-to-high viscosity materials

TR10 Spindle

• Shear Rate: 0.28N
• Standard Viscometer Range: 146 to 31,000,000 mPa.s
• High-Performance Viscometer Range: 24 to 72,000,000 mPa.s
• Suitable for high viscosity applications

TR11 Spindle

• Shear Rate: 0.25N
• Standard Viscometer Range: 300 to 64,000,000 mPa.s
• High-Performance Viscometer Range: 50 to 149,000,000 mPa.s
• Best suited for very high viscosity materials

Key Features:

• Durable stainless-steel construction for long-lasting performance
• Compatible with both Standard and High-Performance Rotational Viscometers
• Wide viscosity range to accommodate a variety of testing needs
• Easy to clean and maintain
• Additional spindles available for specialized viscosity applications

Meets the Following Standards:

• AASHTO T 316
• ASTM D4402/4402M
• EN 13302
