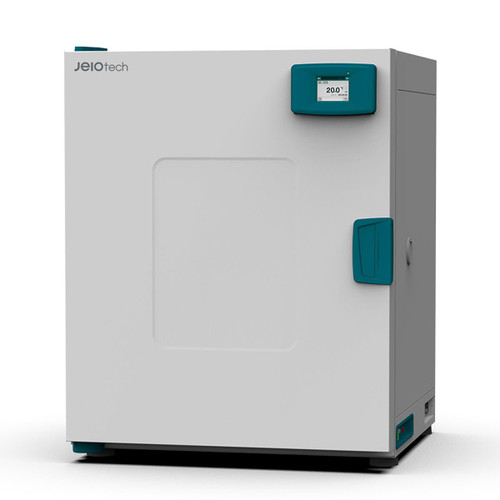

IB4-15AS Incubator, Air-Jacket, 150 / 5.30 (L / cu ft), 230V

IB4-15AS Air-Jacketed Incubator, 150L / 5.30 cu ft, 230V

The IB4-15AS Incubator is designed to deliver precise, reliable, and efficient temperature control for sensitive laboratory processes. With its air-jacketed design, advanced safety features, and intuitive controls, this incubator is an ideal choice for research facilities, pharmaceutical labs, and biotechnology applications.

Key Features

1. Intuitive Touch Controller

• 3.5-inch TFT color LCD display with an easy-to-use interface.
• Convenient 'Wait On/Wait Off' timer function for better experiment planning.
• Controller lock function prevents unintended pressing or adjustments.

2. Superior Temperature Control

• Highly accurate temperature performance with 3-point calibration.
• Wide temperature range: Ambient +5°C to 80°C (41°F to 176°F).
• Fluctuation at 37°C: ±0.10°C (±0.18°F).
• Variation at 37°C: ±0.55°C (±0.99°F).
• Airflow optimization ensures uniform heat transfer, maintaining consistent conditions throughout the chamber.
• Over-temperature limiter and alarms for maximum safety and quick response to deviations.

3. Enhanced Data Management

• Built-in RS-232 and USB-B ports for seamless communication with PCs.
• Optional software allows advanced operation and data management directly from your computer.
• Compatible with LC GreenBox (mobile monitoring system) for real-time monitoring and control from anywhere.
• Integration with 21 CFR Part 11 compliant LC DataKeeper for GMP audits, ensuring regulatory compliance.

4. Safety and Reliability

• Equipped with the highest-level overheating prevention system (Patent 10-0397583).
• IEC Class II protection and DIN 12880 Class 3.1 temperature protection standards.
• Abnormalities are notified through audiovisual alerts for quick action.
• Automatically resumes operation within 30 seconds of a power blackout, ensuring minimal disruption to experiments.

5. Optimized for Incubation Success

• Water tray option prevents media drying, extending incubation durations.
• Logs up to 12 historical events (run times, stops, errors) for better analysis.
• Designed for long-term reliability with minimal failure points.

Specifications

• Model: IB4-15AS
• Chamber Volume: 150 L / 5.30 cu ft
• Temperature Range: Ambient +5°C to 80°C (41°F to 176°F)
• Temperature Fluctuation: ±0.10°C (±0.18°F)
• Temperature Variation: ±0.55°C (±0.99°F)
• Heating Time to 37°C: 49 minutes
• Recovery Time at 37°C: 9 minutes
• Interior Dimensions: 550 x 376 x 710 mm (21.62 x 14.8 x 27.95 inches)
• Exterior Dimensions: 728 x 704 x 914 mm (28.66 x 27.7 x 36.0 inches)
• Net Weight: 60 kg (132.28 lbs)
• Shelves (Standard/Max): 2 / 8
• Max Load per Shelf: 20 kg (44.09 lbs)
• Electrical Requirements: 230V, 50/60 Hz, 3.5A

Why Choose the IB4-15AS Incubator?

The IB4-15AS offers unmatched reliability, precision, and convenience for applications requiring strict temperature control. Its advanced features and durable design make it a valuable investment for any lab seeking to optimize workflows and ensure consistent results.
