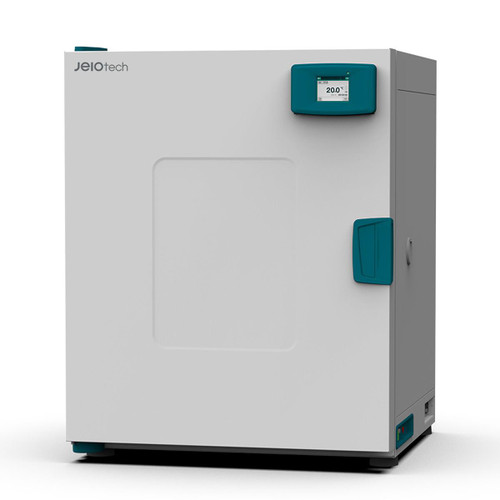

IB4-05AS Incubator, Air-Jacket, 60 / 2.19 (L / cu ft), 230V

IB4-05AS Air-Jacketed Incubator (60 L / 2.19 cu. ft), 230V

The IB4-05AS is a state-of-the-art air-jacketed incubator designed to deliver exceptional temperature control, advanced safety features, and user-friendly operation. With a 60-liter chamber, it is ideal for a wide range of applications, from microbiology to cell culture experiments.

Key Features:

1. Intuitive Touch Controller

• Equipped with a 3.5-inch TFT Color LCD display for seamless operation.
• User-friendly interface allows for quick and accurate adjustments.
• Includes a 'Wait on / Wait off' timer for scheduling tasks efficiently.

2. Reliable Temperature Control

• Wide temperature range from ambient +5°C to 80°C (41°F to 176°F) ensures flexibility for diverse applications.
• Outstanding temperature stability with a fluctuation of ±0.10°C (±0.18°F) at 37°C.
• Uniform heat distribution with airflow optimization ensures consistent results, maintaining variation within ±0.48°C (±0.86°F) at 37°C.
• Features a 3-point calibration system for precise performance.
• Alerts for upper and lower temperature deviations enable quick corrective action.

3. Enhanced Experiment Monitoring and Data Management

• Supports RS-232 and USB communication interfaces for convenient data transfer (USB-B standard; RS-232 optional).
• Optional LC GreenBox Mobile Monitoring System allows for remote monitoring and control anytime, anywhere.
• Compatible with Building Management Systems (BMS) for real-time temperature monitoring and alerts.
• Integrated with 21 CFR Part 11 compliant LC DataKeeper software, making it suitable for GMP-compliant facilities and audits.

4. Unparalleled Safety Features

• Equipped with a patented overheating prevention system (Patent 10-0397583).
• Over Temperature Limiter ensures safe operation by preventing excessive heating.
• Compliant with IEC Class II protection standards and DIN 12880 Class 3.1 temperature protection.
• Logs the last 12 operational events, including run times, stops, and errors, for easy troubleshooting.

5. Reliability for Long-Running Experiments

• Water tray (optional) reduces media evaporation, extending incubation periods.
• Automatic recovery feature restores operation after power outages of up to 30 seconds.
• Lockable control panel prevents accidental changes or tampering.
• Audio-visual alerts notify users of any abnormalities, ensuring fast responses.

Performance Specifications:

• Chamber Volume: 60 L / 2.19 cu. ft.
• Temperature Range: Ambient +5°C to 80°C / 41°F to 176°F.
• Temperature Fluctuation: ±0.10°C / ±0.18°F at 37°C.
• Temperature Variation: ±0.48°C / ±0.86°F at 37°C.
• Heating Time to 37°C: 40 minutes.
• Recovery Time at 37°C (door open 30s): 9 minutes.
• Control Panel: 3.5-inch TFT Color LCD.
• Communication Interfaces: USB-B (standard), RS-232 (optional).
• Standard Functions: 12 programmable functions.

Durable Design:

• Interior Dimensions (W x D x H): 380 x 330 x 480 mm / 14.96 x 12.99 x 18.9 inches.
• Exterior Dimensions (W x D x H): 558 x 648 x 684 mm / 21.97 x 25.5 x 26.93 inches.
• Net Weight: 40 kg / 88.18 lbs.
• Shelving: 2 shelves included (standard), expandable to 4 shelves.
• Max Load per Shelf: 20 kg / 44.09 lbs.

Electrical Requirements:

• Operates at 230V, 50/60 Hz with a current of 3.5 A.

The IB4-05AS incubator is the perfect blend of precision, safety, and convenience, making it an essential tool for any laboratory focused on reliable and consistent results. Whether you’re working on cutting-edge research or routine incubations, this incubator ensures maximum performance, safety, and ease of use.
