IB4-05S Incubator, Forced Convection (IB4-S), 60 / 2.19 (L / cu ft)

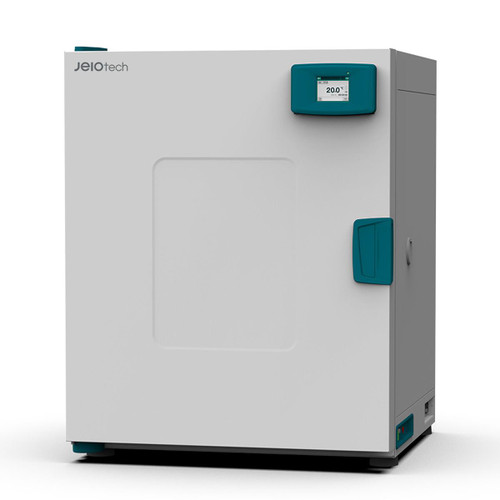

IB4-05S Forced Convection Incubator

The IB4-05S is an advanced forced convection incubator designed for precision, reliability, and ease of use in laboratory settings. With a 60-liter (2.19 cu ft) chamber, this model is engineered to provide a stable and uniform environment crucial for sensitive applications such as cell culture, microbiology studies, and sample storage.

Key Features and Benefits

Intuitive Touch Controller At the heart of the IB4-05S is a user-friendly touch controller featuring a vibrant 3.5-inch color LCD. This intuitive interface allows for simple setup and monitoring of all parameters. The 'Wait on / Wait off' timer function enables precise scheduling for your experiments, ensuring they start and stop exactly when needed.

Reliable Temperature Control

• Precision and Accuracy: Achieve superior temperature accuracy across a wide range with our 3-point calibration system. Set upper and lower temperature limits to receive immediate alerts for any deviations, allowing for quick intervention.
• Uniformity: The chamber's airflow is meticulously optimized for uniform heat transfer, guaranteeing exceptional temperature distribution with a variation of just ±0.41°C at 37°C.

Convenient Data Management and Remote Monitoring

• PC Connectivity: Easily manage operations and export data for analysis with the optional RS-232/USB port and dedicated software.
• Mobile Access: Monitor and control your incubator from anywhere at any time with the optional LC GreenBox mobile monitoring system.
• Building Integration: Seamlessly connect to your Building Management System (BMS) for centralized monitoring and rapid response to any irregularities.
• GMP Compliance: For facilities requiring stringent data integrity, the incubator integrates with the 21 CFR Part 11 compliant LC DataKeeper software, making it ideal for GMP audits.

Enhanced Safety and Convenience

• Overheating Prevention: A patented, highest-level overheating prevention system and an Over Temperature Limiter provide unparalleled safety for your valuable samples. The unit complies with IEC Class II and DIN 12880 Class 3.1 protection standards.
• Event Logging: The system automatically logs the last 12 events, including run times, stops, and errors, for easy troubleshooting.
• Space-Efficient Design: Maximize your lab space by stacking two units securely with the optional stacking kit.

Features to Minimize Incubation Failure

• Media Protection: An optional water tray helps maintain humidity, delaying media from drying out and allowing for longer incubation periods.
• Door Alarm: An alarm activates if the door is left open too long, helping to maintain internal temperature stability.
• Power Failure Recovery: The incubator automatically resumes previous operations if power is restored within 30 seconds of an outage.
• Controller Lock: Prevent accidental changes to your settings by locking the controller with the press of a button.

Technical Specifications

• Model: IB4-05S
• Chamber Volume: 60 L / 2.19 cu ft
• Temperature Range: Ambient +5°C to 80°C / Ambient +9°F to 176°F
• Temperature Fluctuation (at 37°C): ±0.15°C / ±0.27°F
• Temperature Variation (at 37°C): ±0.41°C / ±0.74°F
• Heating Time (to 37°C): 4 minutes
• Recovery Time (to 37°C after door open): 4 minutes
• Control Panel: 3.5-inch TFT Color LCD
• Communication Interface: USB-B, RS-232 (Optional)
• Event Record Function: Logs the last 12 events
• Interior Dimensions (W x D x H): 380 x 330 x 480 mm / 14.96 x 12.99 x 18.9 in
• Exterior Dimensions (W x D x H): 558 x 648 x 684 mm / 21.97 x 25.5 x 26.93 in
• Net Weight: 41 kg / 90.39 lbs
• Shelves (Standard / Max): 2 Standard / 4 Maximum
• Max. Load per Shelf: 20 kg / 44.09 lbs
• Electrical Requirements (120V, 60Hz): 5.8 A
