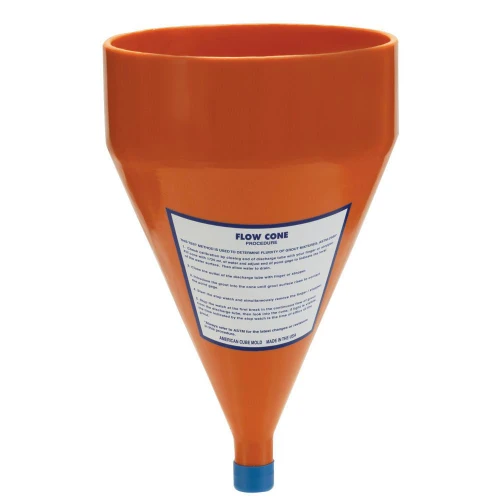

Grout Flow Cone, Plastic, 1/2in Orifice

Plastic Grout Flow Cone with 1/2" Orifice

The Polyethylene Grout Flow Cone offers an affordable, durable, and user-friendly solution for measuring the flowability of fluid hydraulic grouts, specifically those used in preplaced aggregate concrete. Its robust plastic construction ensures longevity and simplifies the cleaning process, making it ideal for frequent use in the field.

This flow cone is specifically designed to comply with ASTM C939 standards for testing fluid hydraulic cement grout. The method is intended for use with grouts that have an efflux time of 35 seconds or less. This model includes a precision-machined 1/2" (12.7mm) stainless steel discharge orifice and a protective cap.

Key Features:

• Material: Lightweight and durable polyethylene
• Orifice: 1/2" (12.7mm) stainless steel orifice included
• Compliance: Meets ASTM C939 test standards
• Application: Ideal for field measurements of grout flowability

Cast Aluminum Grout Flow Cone Set

For enhanced precision and stability in both field and laboratory settings, the Cast Aluminum Grout Flow Cone Set is the quintessential tool for construction professionals. This comprehensive set is engineered for accurately determining the flow of hydraulic cement grout, including preplaced-aggregate (PA) concrete grouts.

The core of the set is a rugged cast aluminum flow cone featuring a 7" (178mm) top inside diameter. It comes with a replaceable orifice at the base, providing versatility for different grout consistencies. The set includes a sturdy steel tripod stand for stable positioning, an adjustable point gauge for precise volume measurement, and a large 6-liter (6qt) steel beaker to collect the grout from a single test. This robust construction ensures consistent, repeatable results every time.

Specifications:

• Flow Cone Material: Cast Aluminum
• Top Inside Diameter: 7" (178mm)
• Orifice Size: Available with a 0.5" (12.7mm) or 0.75" (19mm) orifice
• Gauge Assembly: Adjustable point gauge for accurate measurements
• Stand Material: Sturdy steel tripod
• Beaker: 6L (6.3qt) graduated steel beaker included
• Compliance: The 0.5" orifice configuration meets ASTM C939 standards. The 0.75" orifice is available for less flowable grouts but is not compliant with the standard.

Included Items:

• Cast Aluminum Flow Cone
• Steel Tripod Stand
• 6L Steel Beaker
• Adjustable Point Gauge Assembly
• Choice of 0.5" or 0.75" Orifice

Recommended Accessories for Grout Testing:

To ensure precise and efficient testing, Certified MTP offers a range of essential accessories:

• Flow Cone Stand: A dedicated stand designed to securely position and level your flow cone during testing.
• Interchangeable Orifices:
  • 0.5" Orifice: For standard ASTM C939 testing.
  • 0.75" Orifice: Recommended for thicker, less flowable grouts.
• Grout Sample Beakers:
  • 2qt Steel Beaker: Perfect for collecting grout from a single test.
  • 6qt Steel Beaker: Offers sufficient capacity for up to three consecutive tests without emptying.
• Large Display Digital Stopwatch: Essential for accurately measuring efflux time. Our stopwatch features a large, easy-to-read display and a timer capacity of up to 60 minutes, guaranteeing precise flowability measurements.

Certified MTP is your trusted source for all cement, mortar, and concrete testing equipment. From grout flow cones to cube molds and more, we provide the high-quality supplies you need to ensure accurate and reliable results.
