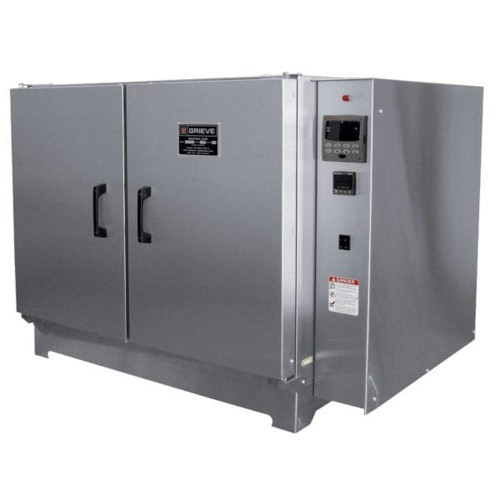

Grieve NT-800R High Temp Oven, Forced Convection, 800F, 4.3 cu ft

Grieve NT-800R High Temp Oven, Forced Convection, 800F, 4.3 cu ft

The Grieve NT-800R is a high-temperature forced convection oven unit designed to reach temperatures up to 800°F, making it ideal for a variety of industrial applications. With a spacious 4.3 cubic feet interior, it provides ample room for materials and components during the heating process. The forced convection feature ensures even temperature distribution, promoting consistent and efficient heating throughout the oven. This model is perfect for tasks that require precise temperature control and reliability in a high-heat environment.

Standard Features for High Temperature Bench Ovens

Safety Equipment- All of our high temperature bench ovens come equipped with safety features to ensure the protection of both your workers and the oven itself. These include an emergency shut-off switch, overheat protection, and a reinforced door with heat-resistant glass.

Temperature Control

Our high temperature bench ovens offer precise temperature control for consistent and accurate results. A digital control panel allows you to easily adjust the temperature and monitor it throughout the heating process.

Durable Construction

Made from heavy-duty materials, our high temperature bench ovens are built to withstand extreme temperatures and everyday use. The exterior is made of sturdy steel while the interior is lined with durable insulation to maintain heat and prevent any damage to the oven's components.

Versatility

• Meets the Requirements of the Following Standards:

• NFPA 86 (Standard for Ovens and Furnaces)

• NFPA 70 (National Electric Code)

• OSHA

• Caution:

• When processing combustible material fire protection should be considered

• Processing flammable solvents or vapors requires forced exhaust to provide safety ventilation. For more information see Class A Solvent Processing page at this website

For additional safety and operational guidelines, please reference the National Fire Protection Association standards and other available resources.

Safety Equipment

• Adjustable manual reset excess temperature interlock to turn off heat on malfunction of main temperature controller

• Separate heating element control contactors to turn off heat on malfunction of main control contactors

Controls

• Analog non-indicating temperature controller

• Red pilot light to indicate heater operation

• On-Off switch

Construction

• 115 volt, 208 volt, 230 volt or 460 volt, 1-phase, 50-60 HZ- other input power available

• 3-wire cord with plug on 115 volt models requires 30 ampere 115 volt service

• 3-wire cord only on 208 and 230 volt models

• 460 volt models incoming power hardwired to control panel

• Durable, electrically isolated, Incoloy tubular heating elements

• Shelves adjustable on 2” centers

• Stainless steel shelves on 1000⁰F models

• Insulated with 6 lbs per cubic foot density rockwool insulation

• 304 stainless steel interior with plated hardware

• Brushed stainless steel exterior

• Fiberglass door gasket with stainless steel spring insert

• Fully assembled and factory tested

• 1 year limited warranty

MODEL            NTR-800

MAXIMUM OPERATING TEMP            800°F

AIR FLOW        Bottom to Top, Forced Convection

CONTROL ACCURACY  ± 0.5%

OVEN UNIFORMITY     ± 15°F

RISE TIME - ELECTRIC  55 mins

RISE TIME - GAS          Not Rated

WORKS SPACE DIMENSIONS (WxDxH)           26" x 22" x 13"

SHELVES INCLUDED     2

NUMBER OF SHELVES MAX    6

SHELF CAPACITY          20

MAX LOAD CAPACITY  Not Available

DOORS Manual

LOADING METHOD     Shelf

APPROXIMATE SHIP WEIGHT  310 lbs

OUTSIDE DIMENSIONS (WxDxH)        39.5" x 34" x 30"

Oven Specifications

Our high-temperature ovens are engineered to deliver precise temperature control and uniform heat distribution, ensuring optimal performance for your industrial needs. The specifications of our ovens include:

• Maximum Temperature: Capable of reaching up to 2200°F (1200°C), our ovens are designed to handle the most demanding heat requirements.

• Power: With a robust 1500 watts of power, these units provide reliable and consistent heating.

• Standard Plug: Equipped with a 110V standard plug, our ovens are easy to integrate into your existing setup.

• Door Type: Featuring a wide opening door, loading and unloading materials is both convenient and efficient.

• Control Panel: The digital control panel comes with a programmable controller, allowing for precise adjustments and monitoring of the temperature.

• Thermocouple: A high-temperature, durable high temperature thermocouple ensures accurate temperature measurement throughout the heating process.

• Shelves: Adjustable and removable shelves offer customizable loading options to suit various materials and components.

• Pre Drilled Vent Hole: Pre-drilled vent hole for safe and efficient ventilation, maintaining optimal operating conditions.

Industrial Applications and Benefits

Our high-temperature ovens are versatile tools suitable for a wide range of industrial applications, including:

• Sintering: With precise temperature control and uniform heat distribution, our ovens are ideal for sintering applications, ensuring consistent and high-quality results.

• Annealing: Perfect for annealing processes, our ovens provide the necessary heat treatment and stress relief for various materials.

• Hardening: Whether for quenching or tempering, our ovens deliver the required heat for hardening applications, enhancing material properties.

• Heat Treatment: From brazing to soldering, our ovens support various heat treatment processes, offering flexibility and reliability.

The benefits of using our high-temperature ovens include:

• Precise Temperature Control: Achieve accurate and consistent results with our advanced temperature control systems.

• Uniform Heat Distribution: Ensure even heating of your products, reducing the risk of defects and improving quality.

• Energy Efficiency: Designed to be energy-efficient, our ovens help lower your operational costs while maintaining high performance.

• Durability: Built with high-quality materials and components, our ovens are designed to withstand rigorous use and provide long-lasting service.

Ordering and Support

To order our high-temperature ovens, please contact us. Our team is ready to assist you with your order and provide a detailed quote tailored to your needs.

For more information on our ovens, including specifications, features, and accessories, please visit our website or download our catalog. We offer a complete range of support services, including installation, maintenance, and repair, ensuring your oven operates at peak performance.

Please note that our ovens are custom-built to meet your specific requirements. Contact us to discuss your needs, and we will guide you through the review process to ensure your oven meets all your specifications and expectations.

Thank you for considering our high-temperature ovens. We look forward to working with you to meet your industrial heating needs.
