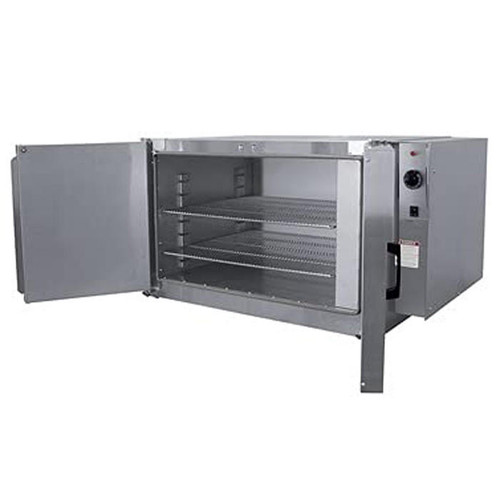

Grieve NB-350 Forced Convection Bench Oven, 350°F, 7 cu ft, 230V
The Grieve NB-350 is a forced-convection bench oven with a 7 cu ft work chamber and a maximum operating temperature of 350°F (177°C), supplied here for a 230 V single-phase supply. A recirculating blower moves heated air side to side through the work space for even heating of shelf loads, making the oven suitable for drying, baking, dehydrating, preheating and curing in laboratory and production settings.
The oven is of welded steel construction with a 304 stainless steel interior and a brushed stainless steel exterior, insulated with 2 in of 6 lb/cu ft rockwool. Heat is supplied by Incoloy-sheathed tubular elements located in the heat chamber, away from the work space. The door is sealed with a silicone rubber gasket.
Controls include a calibrated main temperature controller, an independent manual-reset excess-temperature interlock that cuts power to the heaters if the maximum temperature is exceeded, an on-off switch and a red pilot light indicating heater operation. An electrical interlock shuts off the heat if the recirculating blower is turned off. Two removable nickel-plated wire shelves are included, adjustable on 2 in centers, with room for up to seven shelves. Each oven is factory tested before shipment.
Specifications
- Model: Grieve NB-350 (part number NB-3502)
- Work space (W x D x H): 28 x 24 x 18 in
- Outside dimensions (W x D x H): 41 x 30 x 23 in
- Volume: 7 cu ft
- Maximum temperature: 350°F
- Heating: 2000 W
- Electrical: 230 V, 1-phase, 60 Hz, 3-wire cord
- Temperature uniformity: ±10°F
- Rise time: approximately 17 minutes
- Shelves: 2 included, 7 maximum
- Approximate shipping weight: 210 lb
Typical Uses
- Drying samples, small parts and cleaned components
- Preheating plastics and curing potting compounds
