Analog Multimeter with High Voltage DC and Battery Check

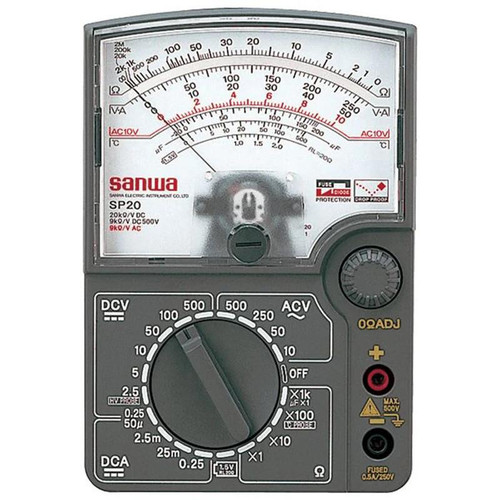

The Sanwa SP20 Analog Multimeter: Your Essential Tool for Precision and Durability

The Sanwa SP20 is a robust and versatile analog multimeter, expertly engineered to meet the demands of both hobbyists and professionals. This portable multi-tester stands out with its remarkable shock-resistant design and a comprehensive suite of 20 measurement functions, ensuring accurate readings even in challenging environments.

Key Features & Capabilities:

• Extensive Measurement Range: Beyond standard AC/DC voltage and current, the SP20 excels in specialized measurements. It offers high voltage DC measurement up to 25kV (when paired with the optional HV-10 probe), crucial for electronics involving high power. It also accurately measures resistances up to 2MΩ and capacitance with a full-scale value of 500μF, providing a broad spectrum of diagnostic capabilities.
• Designed for Versatility: Specifically tailored for troubleshooting low-power circuits and essential home electric appliance testing, this multimeter is an indispensable tool for a wide array of applications.
• Precision Engineering: Featuring an internal magnet type, taut-band meter, the SP20 ensures reliable performance with a full-scale accuracy of 3%. Its advanced design minimizes potential errors, giving you confidence in every reading.
• Rugged Durability: The SP20 boasts a protective covering designed to absorb impacts, making it drop-shock proof. This robust construction safeguards the device from accidental drops and everyday wear and tear, ensuring longevity.
• Enhanced Safety Features: Circuit protection is paramount. The device is safeguarded by a high-capacity fuse (250V/0.5A with a 500 Ampere blowout capacity), providing peace of mind during operation.
• Convenient Battery Check Function: Easily verify the status of 1.5V batteries, a practical feature for quick diagnostics.
• Expandable Functionality: With optional accessories, the SP20 can also perform temperature measurements (-20 to +200℃ with the T-THP probe), adding another layer of utility.
• User-Friendly Design: Comes equipped with a practical tilt stand for optimal viewing angles during benchtop use.

What's Included:

• Sanwa SP20 Analog Multimeter
• One set of high-quality test leads
• Detailed instruction manual for easy setup and operation

Technical Specifications:

• DCV: 0.25/2.5/5/10/50/100V (20kΩ/V); 500V (9kΩ/V) | Tolerance: ±3% of full scale
• ACV: 10/50/250/500V (9kΩ/V) | Tolerance: ±3% of full scale
• DCA: 50μ/2.5m/25m/0.25A | Tolerance: ±3% of full scale
• Resistance: 2k/20k/200k/2MΩ | Tolerance: ±3% of arc
• Capacitance: 500μF (Approximate value)
• DC High Voltage: DC25kV (with optional HV-10 probe) | Tolerance: ±20% with probe
• Temperature: -20 to +200℃ (with optional T-THP probe) | Tolerance: ±3% (using T-THP)
• Battery Check: 1.5V (1.0～2.0V) | Approximate value
• Frequency Characteristic: AC10V range 40Hz to 100kHz: frequency response within ±3%
• Battery: R6P (AA battery) 1.5V x 2
• Built-in Fuse: F0305 Φ6.3x30mm 0.5A/250V 300A Glass fuse
• Size/Mass: H144×W99×D41mm / Approx. 270g

The Sanwa SP20 is more than just a multimeter; it's a reliable partner for accurate electrical diagnostics, built to last and adapt to your evolving needs.
