Analog Multimeter with Built-In Case

Analog Multimeter with Built-In Protective Case

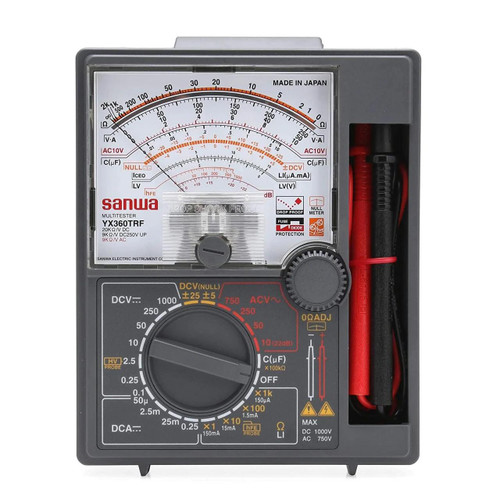

The YX360TRF analog multimeter is a reliable, versatile tool designed for low-voltage and high-voltage circuit measurements. Engineered with precision, it features a shock-resistant, built-in protective case that doubles as a convenient tilt stand, making it ideal for fieldwork, workshops, and everyday use. Whether you’re an electronics hobbyist or a professional technician, this durable multimeter provides accurate readings across a wide range of applications.

Key Features:

• Drop-Shock Resistant Design: Built to withstand accidental drops, ensuring durability and longevity.
• Null (Zero Center) Measurement: Offers ±5V and ±25V DCV range with a full-scale accuracy of ±5%, perfect for precise readings.
• High Resistance Capability: Measures resistance up to 200MΩ with low voltage for advanced circuit testing.
• Capacitance and Decibel Measurement: Easily measure capacitance up to 10μF and signal power in dB.
• Wide Measurement Range: Covers DCV, DCA, ACV, resistance, capacitance, load line current, and dB.
• High Voltage Testing: Capable of measuring up to 25kV DC with an optional HV-10T probe.
• Integrated Test Lead Storage: Includes a storage compartment for the attached test leads, keeping everything organized.
• Replaceable Fuse Protection: Equipped with a 250V/0.5A replaceable fuse for enhanced circuit safety.

What It Measures:

1. DC Voltage (DCV): Range from 0.1V to 1000V. High voltage up to 25kV with optional probe.
2. AC Voltage (ACV): Ranges from 10V to 750V with 9kΩ/V input resistance.
3. Direct Current (DCA): Measures from 50μA to 0.25A for accurate current readings.
4. Resistance: Ranges from 2kΩ to 200MΩ, with multiple multipliers (x1, x10, x100, x1k, x100k).
5. Capacitance: Measures up to 10μF for capacitors.
6. dB Signal Power: Measures from -10dB to +62dB, ideal for audio and signal testing.
7. Load Current: Measures load line current from 1.5μA to 150mA.
8. hFE Transistor Testing: Optional HFE-6T probe allows accurate transistor gain testing.

Specifications:

• Battery: Requires 2 x R6 (IEC) or UM-3 (1.5V) batteries.
• Fuse: Φ5.2x20mm (250V/0.5A) replaceable.
• Dimensions & Weight: H159.5 x W129 x D41.5 mm, weighing approximately 320g.
• Included Accessories: Attached test leads and instruction manual.
• Accuracy:
  • DCV: ±3% to ±5% of full scale
  • ACV: ±4% of full scale
  • DCA: ±3% of full scale
  • Resistance and Capacitance: Approximate values

Why Choose the YX360TRF Multimeter?

The YX360TRF is not just a tool—it’s a dependable partner for precise measurements. Its shockproof design, wide range of functions, and ability to handle high-voltage testing make it an excellent choice for electricians, technicians, and engineers. Whether you’re testing circuits, diagnosing issues, or measuring components, this multimeter ensures you get accurate and reliable results every time.

Optional Accessories:

• HV-10T High Voltage Probe: Enables DC voltage measurements up to 25kV.
• HFE-6T Transistor Testing Probe: Allows for hFE transistor gain measurements.

Upgrade your toolkit with the YX360TRF multimeter and experience top-tier performance, durability, and precision.
