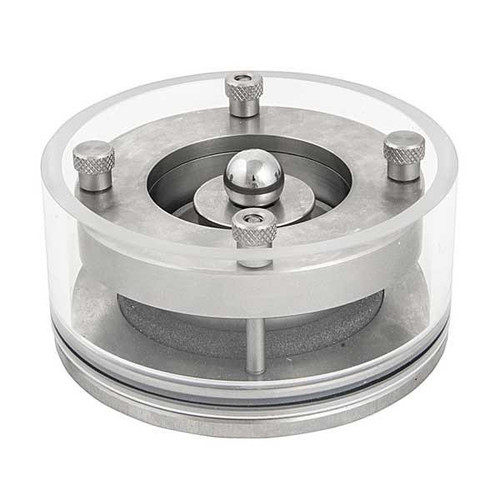

2in Fixed Ring Consolidometer

Features:

• Durable, long-lasting stainless steel construction
• Collar has lifting knobs for easy specimen removal
• Compatible with most consolidation load frames

Included Items:

• Fixed Ring Consolidometer
• Cutting Sample Ring
• Two Porous Stones
• Loading Ball

Consolidometers measure soil specimens for strength and for estimation of potential settlement of pavements and structures. These fixtures contain the soil specimens in rings and are generally placed in Consolidation Load Frames for loading.  Consolidometers either have fixed rings, meaning the specimen ring is fixed to the base, or floating rings, where the ring is supported by the friction of the specimen. Fixed and Floating Ring Consolidometers are available in a range of sizes in both in and mm diameters. Consolidometers are designed to fit Consolidation Load Frames, as well as most other manufacturers' units. When using Fixed Ring Consolidometers, applied forces load the specimen from the top as the base of the ring is fixed in place.



Specimen Size	2.0in (50.8mm)
Consolidometer Type	Fixed Ring
Estimated Shipping Weight	8.0lb (3.63kg)



Meets Test Methods:
AASHTO T216
ASTM D 2435
ASTM D 4546
