3in Fixed Ring Consolidometer

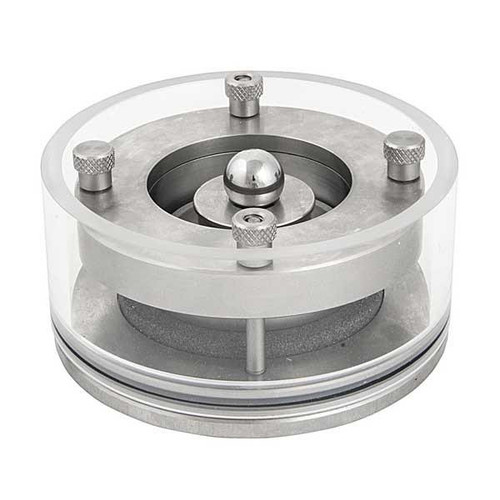

3in (76.2mm) Fixed Ring Consolidometer

The 3in Fixed Ring Consolidometer is designed for laboratory soil consolidation testing and is compatible with Karol-Warner and other manufacturers’ Consolidation Load Frames. It features a stainless steel base with an acrylic inundation ring for easy observation during testing. The specimen is loaded from the top while the base remains fixed.

The device includes a 1in (25.4mm) high stainless steel cutting sample ring with built-in cutting edges for efficient sample preparation. Clamping rings with lifting knobs ensure easy removal after testing. The setup also includes a loading pad, acrylic inundation ring, top and bottom porous stones, and a load-bearing ball. Individual components are available separately. This consolidometer works with most standard Consolidation Load Frames.

Features:

• Compatible with most Consolidation Load Frames
• Durable stainless steel construction
• Transparent acrylic inundation ring for visibility during preparation and testing

Included Items:

• 3in Fixed Ring Consolidometer
  • Cutting Sample Ring
  • Two Porous Stones
  • Loading Ball

Specifications:

• Specimen Size: 3.00in (76.2mm)
• Consolidometer Type: Fixed Ring
• Product Dimensions: 5 x 2.25in (127 x 57.15mm) (Dia. x H)

Standards Compliance:

• AASHTO T 216
• ASTM D4546
• ASTM D2435/2435M
