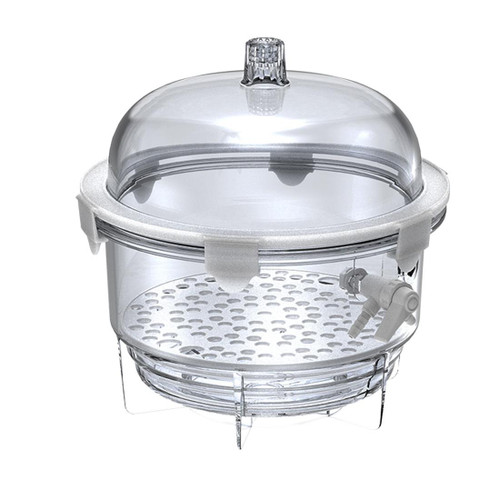

VDR-25 Vacuum Desiccator (Round), 10L (0.4cu ft)

VDR-25 Vacuum Desiccator (Round), 10L (0.4cu ft)

Discover the VDR-25 (Round) Vacuum Desiccator, an essential tool for your laboratory needs, offering a generous 10L (0.4 cu ft) capacity.

Superior Performance & Unmatched Convenience

• Exceptional Vacuum Integrity: Achieve and maintain a maximum vacuum of 1 Torr (1.33×10⁻⁴ Mpa) for over 72 hours, ensuring a stable environment for sensitive samples.
• Airtight, Greaseless Seal: A high-quality silicone gasket provides a perfect seal without the need for messy grease, creating a clean and cost-effective testing atmosphere.
• Durable & Clear Construction: Made from highly transparent, shatterproof, and non-corrosive polycarbonate, the VDR-25 is both robust and easy to clean.
• Effortless Operation: The integrated three-way stopcock allows for convenient and uniform vacuum draw, release, and gas exchange. Barbed fittings on each side ensure tubing remains securely attached.
• Secure Handling: A flange lock holds the top and bottom sections together, preventing accidental separation when not under vacuum.

Versatile & Customizable Models

• UV Protection: Choose a model with UV-blocking effects (U/UG models) to minimize damage and discoloration of light-sensitive materials.
• Vacuum Monitoring: Select models equipped with a vacuum gauge (G/UG models), conveniently located at the center of the lid for at-a-glance vacuum level checks.
• Cross-Compatibility: The top and bottom components of our round and cylindrical desiccators are designed to be compatible, offering greater flexibility and diverse applications.

Technical Specifications

• Internal Volume: 10 L / 0.4 cu ft
• Gauge Range: 0 to -0.1 Mpa
• Nozzle Diameter: 9.5 mm / 0.37"
• Max. Permissible Vacuum: 1.33x10⁻⁴ Mpa
• Net Weight: 2.5 kg / 5.5 lbs

Materials

• Lid & Bottom: Polycarbonate
• Perforated Sample Tray & Locker: Polypropylene
• Vacuum Seal: Silicone Rubber

Dimensions

• Overall (Ø x H): 316 x 325 mm / 12.4" x 12.8"
• Internal (Ø x H): 242 x 206 mm / 9.5" x 8.1"

Note: All models are RoHS compliant, except for VDR-U models.
