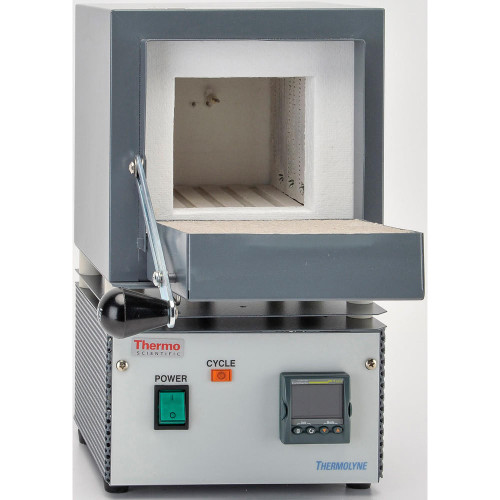

Thermolyne Furnace: FB1410M Benchtop Muffle, Max. 2192F, 2.1L, 240V
The ashing Muffle Furnace is used for ashing, ignition tests, gravimetric analyses and volatile matter determinations. For construction materials, furnaces are used for tests of soils, aggregates and cement. This unit has rugged components and top quality materials to assure longest service life. It also has custom-formed refractory cement which enhances durability and thermal efficiency. Max. temp. 2192F (1200C) Chamber capacity 120in3.
This unit has single set-point control ramp directly to set-point and dwell at that temperature. Display shows actual temperature or set-point. Over-temperature protection and 0.3in (7.6mm) LED digital display for °C or °F. Thermocouple failure and runaway protection.
Multiple elements in sides, tops and/or bottoms. Since doors and backs have no elements, only the center two-thirds of the chamber is uniform and chamber size should be selected accordingly. Safety interlock door switches. Power to the elements is cut off when the door is opened. Insulated door and latching handle for safety and energy efficiency. Supplied with cord and plug.
Muffle 0.07ft³ (2L) capacity 212–2,192°F (100–1,200°C)
Benchtop unit has built-in port to remove moisture and contaminants while extending heating element and furnace life. Thermocouple break protection, two open-coil heating elements for fast and efficient heat-up, thermal-efficient ceramic insulation, oven door safety switch, power cord and 0.31in (7.8mm) rear port to monitor.
Features:
Included Items:
-
Muffle Furnace (120V, 50/60Hz or 240V, 50/60Hz)
Accessories:
-
Crucible Tongs to remove beakers and other labware from the furnace
-
Porcelain Crucibles for loss-on-ignition of cement, fly ash and soils available in 10, 30 or 45mL
-
Resistant Gloves to protect operator from high temps when placing or removing items in the furnace
Specifications:
Capacity (English) 0.07 cu.ft.
Certifications/Compliance CSA approved
Capacity (Metric) 2.1 L
Temp (Metric) 100C to 1100C Celsius - For precise measurements, consider using the ASTM 68F Thermometer, 293 to 401F known for its accuracy and reliability.
Type Single Setpoint
Consumption 1520 w
Stability 0.5 at 1000C (5.0 at 1000C)
Dimensions (D x W x H) Interior 6 x 5 x 4.25 in. (13 x 12.7 x 10.8 cm)
Dimensions (L x W x H) Exterior 15.8 x 10 x 14.5 in. (40 x 25 x 37 cm)
Length (English) 15.8 in.
Length (Metric) 40 cm
Width (English) 5 in.
Width (Metric) 25
Width (Metric) Interior 12.7 cm
Height (English) 14.5 in.
Height (English) Interior 4.25 in.
Height (Metric) 37 cm
Height (Metric) Interior 10.8 cm
Depth (English) Interior 6 in.
Depth (Metric) Interior 13 cm
Electrical Requirements 240 V 50/60 Hz
Voltage 240 V
Frequency 50/60 Hz
Features and Design
The Thermolyne furnaces have several features that make them perform and safe. One of the key features is the ceramic fiber insulation which allows for faster heat up times and lower energy consumption. The custom formed refractory cement surrounds the elements reducing contamination and extending the life. The insulated door has a convenient latch and forms a shelf when open. A safety switch removes power to the elements when the door is open preventing thermocouple failure and runaway conditions. The back of the chamber has a diameter port for injecting special atmospheres or monitoring chamber temperatures with independent measuring devices.
Specifications and Operation
The Thermolyne furnaces operate with digital control for accurate control. They heat to the set temperature and thermocouple break protection cuts power to the elements preventing thermocouple failure and runaway conditions. UL listed and CSA certified for safety. Specifications: 120V or 240V, 1050w to 1500w depending on model. Shipping weight and dimensions vary by model but are benchtop size. Single display and simple controls for easy monitoring.
Applications and Uses
Thermolyne furnaces are versatile and economical for ashing organic and inorganic samples, determining volatile and suspended solids, analysis, treating small steel parts and tests. For research only. Any restrictions on the purchaser to use the product(s) for internal research purposes only do not apply to the products on the associated web pages. The purchaser should ensure the product is suitable for their use or intended application considering capacity range and services required. Product information is in English. Review product content correction statement and internal research use restriction disclaimers before purchasing.
