TH3-KE-065 Temperature & Humidity Chamber Tabletop, 65/2.3 (L/cu ft)

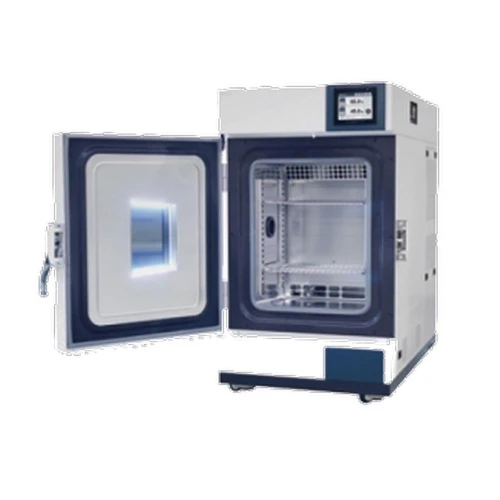

Introducing the TH3-KE-065 Tabletop Temperature & Humidity Chamber

Achieve precise environmental control in a compact package with the TH3-KE-065 Temperature and Humidity Chamber. Designed for tabletop use, this 65-liter (2.3 cubic foot) chamber is the ideal solution for laboratories and research facilities where space is at a premium but accuracy and reliability are non-negotiable.

Optimized Performance and Versatility The TH3 series offers three distinct model configurations (KE, ME, PE) tailored to your specific testing requirements. The TH3-KE model provides an expansive temperature range from -40°C to 100°C and a humidity range of 20% to 95% RH, ensuring it can handle a wide array of applications, from material testing and stability studies to electronics conditioning.

Key Features:

• Advanced Control System: A user-friendly 5.6-inch color touchscreen controller allows for intuitive operation. You can easily set up complex test profiles with up to 100 patterns and 2000 total segments, monitor progress with real-time graphs, and document your results effortlessly.
• Superior Structural Design: The chamber's compact design is optimized for miniaturization without sacrificing performance. Excellent thermal insulation and a double-sealed door ensure exceptional temperature and humidity stability, providing reproducible results every time.
• Stable Humidity Control: Our differentiated external humidification system provides stable humidity control while simplifying maintenance. The efficient water recirculation system minimizes the need for refilling, even during long-term, high-humidity tests.
• User-Centric Convenience: Monitor your samples with ease through the heated, tempered glass door and internal LED lighting. LED status indicators allow you to check the chamber's operational state from a distance. Standard cable ports make connecting external equipment simple, and the easily removable condenser grill streamlines cleaning and maintenance.
• Uncompromising Safety: Your work is protected by a multi-layered safety system, including an electronic over-temperature shutdown, a mechanical backup limiter, and alarms for low water levels and open doors. Fuses and overcurrent protection are built-in to safeguard both the unit and your valuable samples.

Technical Specifications at a Glance:

• Chamber Volume: 65 L / 2.3 cu ft
• Temperature Range: -40°C to 100°C
• Temperature Fluctuation: ±0.3°C
• Humidity Range: 20% to 95% RH
• Humidity Fluctuation: ±1% RH
• Interior Dimensions (W x D x H): 400 x 330 x 495 mm
• Exterior Dimensions (W x D x H): 600 x 1050 x 1060 mm

Connectivity and Compliance: Stay connected and compliant with our advanced data management options. The TH3-KE-065 comes standard with an RS-232 port and can be upgraded with RS-485 for multi-device control. For industries requiring GMP compliance, the chamber can be integrated with LC DataKeeper software, which is fully compliant with 21 CFR Part 11. Additionally, with the optional LC Connected system, you can monitor and control your chamber from anywhere using a mobile app.

Whether for research, quality control, or product development, the TH3-KE-065 offers the precision, reliability, and convenience you need to advance your work.
