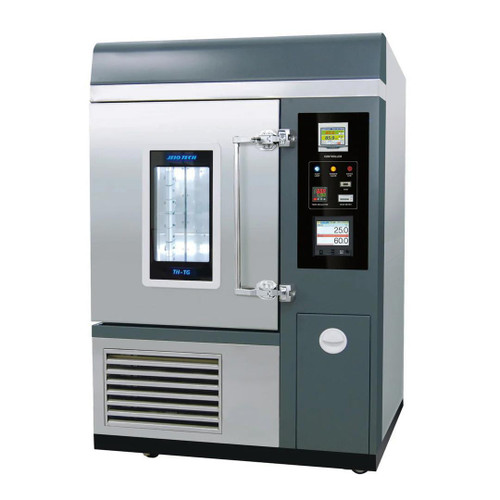

TH-G-408 Temperature & Humidity Chamber (Low Temp), 408 / 14.4 (L/cu ft)

TH-G-408 Low Temperature and Humidity Chamber

Introducing the TH-G-408 Temperature and Humidity Chamber, a high-performance environmental testing solution designed for precision, reliability, and long-term operation. With a spacious 408-liter (14.4 cu ft) capacity, this chamber is engineered to meet the rigorous demands of various industries, including electronics, automotive, pharmaceuticals, and materials science.

Unmatched Performance and Stability

At the heart of the TH-G-408 is a microprocessor PID controller that provides exceptional temperature and humidity stability. With features like automatic tuning and simple temperature calibration, you can achieve precise environmental conditions with ease. The chamber's advanced design adapts the humidification tank to the exterior, enhancing performance for long-duration tests by ensuring consistent humidity control from 25% to 95% RH.

The powerful mechanical dual-stage refrigeration system allows the chamber to reach temperatures as low as -40°C and as high as 100°C, with rapid heating and cooling rates. Our innovative water recycling and filtering system minimizes water consumption, making it ideal for continuous, extended operation.

Key Features:

• Temperature Range: -40°C to 100°C (-40°F to 212°F)
• Humidity Range: 25% to 95% RH
• Exceptional Uniformity: Delivers outstanding temperature fluctuation (±0.3°C) and variation (±0.5°C) for reliable, repeatable results.
• Energy Efficient: An optimized insulation system and an air-tight, two-point latching door prevent heat leakage, keeping the exterior surface safe to touch (under 60°C) and reducing operational costs.
• User-Friendly Control: A 5.7-inch color LCD touchscreen controller provides an intuitive interface for programming and monitoring. View operating progress in graph mode, store data on a built-in SD card, and benefit from trilingual (English, Chinese, Korean) support.

Designed for Convenience and Safety

The TH-G-408 is built for user convenience and safety. A front-loading, portable water container makes refills simple, and a direct water system connection is available for uninterrupted long-term testing. Observe your samples clearly through the heated, tempered glass door, illuminated by energy-efficient LED lighting.

Safety is paramount, with features including an automatic overheat shut-off, low water level alarms, a key-operated door lock, and over-current protection.

Specifications at a Glance:

• Chamber Volume: 408 L / 14.4 cu ft
• Internal Dimensions (W×D×H): 600×630×800 mm / 23.6×24.8×31.5 inch
• Refrigerant: R-507 (Eco-friendly)
• Standard Accessories: Includes 2 wire shelves (max. 10), and one 50mm cable port for external probes.
• Connectivity: Comes standard with an RS-232C port. An optional RS-485 port allows for simultaneous control of up to 9 units.

Whether you are conducting stress tests, stability studies, or quality control, the TH-G-408 Temperature and Humidity Chamber offers the performance, reliability, and ease of use your lab requires.
