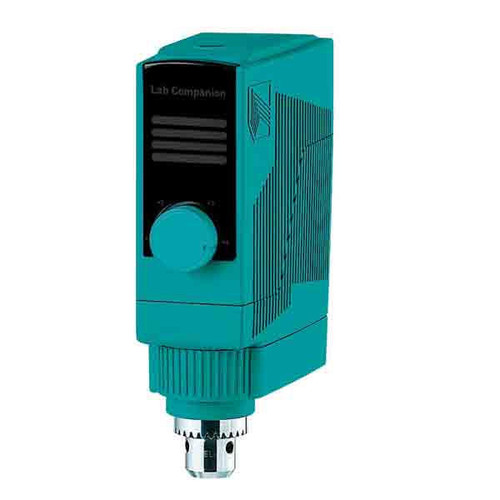

MSD-0420 Overhead Stirrer (Hi Performance), 19 Max Torque (N·cm)

MSD-0420 High-Performance Overhead Stirrer

Maximum Torque: 19 N·cm

Experience superior performance and quiet operation with the MSD-0420 Overhead Stirrer, designed for demanding laboratory applications.

Advanced Performance & Unmatched Convenience

• Vibration-Free & Silent Operation: Equipped with a state-of-the-art, maintenance-free Brushless DC (BLDC) motor, this stirrer provides exceptionally smooth, quiet, and powerful performance for years to come.
• Powerful Torque for High-Viscosity Tasks: With a maximum torque of 19 N·cm, the MSD-0420 effortlessly handles high-viscosity substances, making it suitable for a wide range of applications, from creams and polymers to dense chemical solutions.
• Consistent Speed Control: The integrated PID feedback control system automatically adjusts to changes in viscosity, ensuring a constant motor speed for reliable and reproducible results every time.
• Intelligent Best Effort Function: The stirrer intelligently manages its speed to continue stirring even when the workload exceeds its normal capacity, preventing interruptions to your process.
• Smooth Start & Stop: A microprocessor-controlled soft start and stop function prevents accidental spills and splashes, protecting your samples and ensuring a safer lab environment.
• User-Friendly Digital Display: The well-illuminated digital display panel features sensitive touch buttons and shows the set/present RPM, power ratio (%), and run time simultaneously, allowing for at-a-glance monitoring.
• Versatile Stirring: Selectable stirring directions accommodate various impeller shapes, enhancing mixing efficiency.
• Data Connectivity: A built-in USB port enables external control and data collection. The unit comes complete with Jeio Tech software and a USB cable for seamless integration with your computer systems.
• Compact Design: The slim, compact head design allows for flexible configuration with other lab equipment and accessories, maximizing your bench space.

Robust Safety Features

• Efficient Heat Dissipation: The sturdy aluminum main body is designed to efficiently absorb and dissipate heat generated by the motor, ensuring stability during long runs.
• Overload & Overheating Protection: Built-in safety features guard against overload and overheating, allowing for safe, continuous operation without risk of damage to the unit.
• Accidental Change Prevention: A keypad lock function prevents unintentional changes to your settings, safeguarding the integrity of your experiment.

Technical Specifications

• Model: MSD-0420
• Speed Control: PID Feedback Control
• Speed Range: 80 to 2,000 rpm
• Chuck Range (Diameter): 3 to 10 mm (0.1 to 0.4 inches)
• Max. Stirring Capacity (H₂O): 20 Liters
• Max. Viscosity (cP):
  • ~2,000 rpm: 5,000
  • ~1,200 rpm: 10,000
  • ~300 rpm: 30,000
  • ~200 rpm: 50,000
• Max. Torque: 19 N·cm
• Motor Rating (Input/Output): 70 W / 40 W
• Materials:
  • Body: Powder-coated Aluminum
  • Cover: Polypropylene
  • Motor: BLDC
• Overall Dimensions (W×D×H): 75 x 215 x 150 mm (2.9 x 8.5 x 5.9 inches)
• Net Weight: 2.8 kg (6.2 lbs)
• Protection Class (DIN EN 60529): IP30
• Electrical Requirements: 120V, 60Hz, 0.5A
