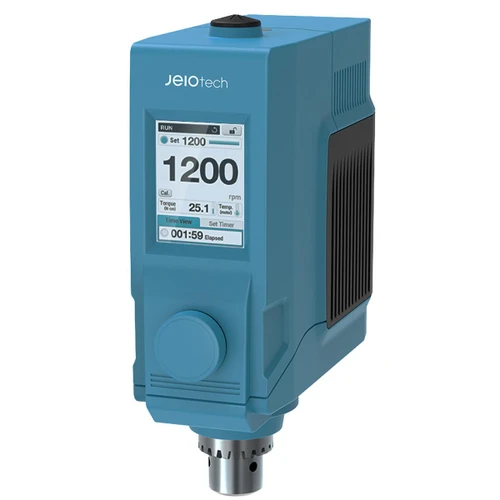

MSH-0520 Overhead Stirrer (Prestige), Max Torque 20.8 (N·cm)

MSH-0520 Overhead Stirrer (Prestige) – High-Performance Lab Mixing

The MSH-0520 Overhead Stirrer is a premium laboratory solution designed for scientists and technicians who require precision, power, and long-term reliability. With a maximum torque of 20.8 N·cm, this unit is engineered to handle a wide range of viscosities, ensuring consistent results across diverse applications, from chemical synthesis to food testing.

Key Performance Features

• Maintenance-Free BLDC Motor: Experience years of silent, vibration-free operation. The brushless DC motor provides smooth yet powerful stirring without the wear and tear of traditional motors.
• PID Feedback Control: Maintains constant speed even as the viscosity of your sample changes. Whether your mixture thickens or thins, the system adjusts in real-time to keep your RPM steady.
• Best Effort Function: An intelligent safety system that manages stirring speed when the workload exceeds capacity, preventing sudden stops or equipment strain.
• Splash Prevention: Microprocessor-controlled "soft start" and "soft stop" functions prevent accidental spills and splashes, protecting your workspace and sample integrity.

Intuitive Control & Connectivity

• Touch LCD Controller: A vibrant, intuitive interface displays set vs. actual RPM, remaining run time (up to 99h 59min), and real-time motor torque.
• Visual Health Monitoring: The motor temperature is indicated by a three-color display system, providing an immediate visual warning to prevent overheating.
• Remote Operation: Monitor your experiments from anywhere via the JeioTech Android app. Configure your lab network through the included Jeiotechsoft software or use the optional Bluetooth broadcaster for local remote control.
• External Controller & PC Link: Includes a dedicated external controller for safe operation outside of fume hoods. A built-in USB port allows for seamless data collection and PC management using the provided Jeio Tech software.

Safety & Design

• Heat Dissipation: The sturdy powder-coated aluminum body acts as a heat sink, efficiently emitting thermal energy to protect the motor during continuous operation.
• Electrical Protection: A separated power adapter minimizes electrical hazards, while the IP30 protection class ensures a safe operating environment.
• Safety Cut-offs: Includes automatic overload and overheat protection. If a workload is deemed harmful to the motor, the unit will safely cease operation.

Technical Specifications

• Speed Range: 50 to 2,000 RPM
• Stirring Capacity: Up to 60L (H2O)
• Max Viscosity: Supports up to 50,000 cP (at 300 RPM)
• Chuck Range: 3 to 10 mm (0.1 to 0.4 inches)
• Dimensions: 80 x 185 x 235 mm
• Net Weight: 3.1 kg (6.8 lbs)
• Power Supply: Universal AC 100-240V, 50/60Hz

Package Includes: MSH-0520 Main Body, External Controller, Jeio Tech Software, USB Cable, and Power Adapter. (Impellers and stands are sold separately to allow for custom configuration based on your specific lab requirements).
