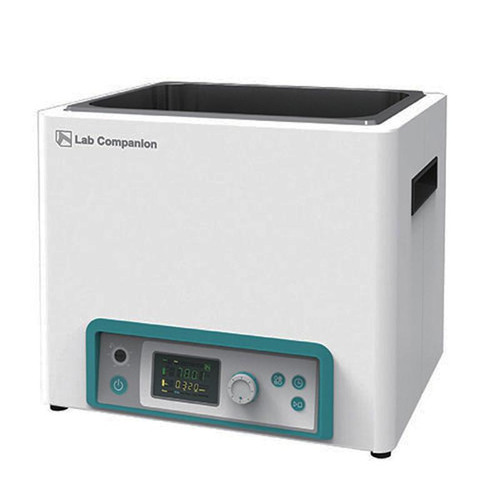

Jeio Tech BW3-10G Heating Bath (11.5L)

The Jeio Tech BW3-10G Heating Bath is an advanced, reliable solution designed for precise temperature control in laboratory settings. Built with performance, convenience, and safety in mind, this heating bath is ideal for applications such as critical research, quality control, and regulatory testing.

Performance

• Temperature Range: Ambient +7°C to 100°C (12.6°F to 212°F).
• Control System: Microprocessor PID control with automatic tuning and calibration ensures consistent and accurate heating.
• Stability: Temperature stability of ±0.3°C (±0.54°F) at 50°C.
• Heat-Up Time: Reaches 70°C in approximately 36 minutes.

Convenience

• User-Friendly Display: Easy-to-read digital LED display with 0.1°C resolution for precise monitoring.
• Timer Modes: Dual wait on/off timer modes (1 minute to 99 hours and 59 minutes).
• Memory Function: Stores up to three frequently used temperature settings for quick access.
• Corrosion-Resistant Construction: Made from durable stainless steel, compatible with water, silicone fluids, and other bath fluids.
• Compact Design: Low-profile reservoir design saves space and enhances usability.
• Programming Functions: Ideal for laboratories requiring advanced control for demanding experiments.

Safety

• Baffle Plate Design: Isolated heater and sensor prevent direct contact with users or samples for enhanced safety.
• Comprehensive Protection System: Features alarms for low fluid levels, dry-running, over-temperature, and over-current situations.
• Splash-Proof Keypad: Protects against accidental fluid damage.

Specifications

• Model: BW3-10G
• Bath Volume: 11.5L (0.4 cu ft).
• Exterior Dimensions (W × L × H): 360 × 300 × 294 mm (14.2 × 11.8 × 11.6 inches) with gable cover.
• Interior Dimensions (W × L × H): 300×240, 200/ 11.8×9.5, 7.9
• Temperature Accuracy: ±0.3°C at 50°C.
• Net Weight: 22 kg (48.5 lbs).
• Electrical Requirements: 120V, 50/60 Hz, 8.3A.

Applications

The BW3-10G is perfect for laboratories conducting:

• Biological and chemical research.
• Pharmaceutical quality control.
• Materials testing.
• Regulatory compliance testing.

Why Choose the Jeio Tech BW3-10G Heating Bath?

With robust construction, excellent safety features, and cutting-edge performance, the BW3-10G ensures that your lab processes run smoothly, efficiently, and safely. Whether you’re working on high-precision experiments or routine tasks, this bath delivers reliable results.

Cat. No.: AAH41316U
