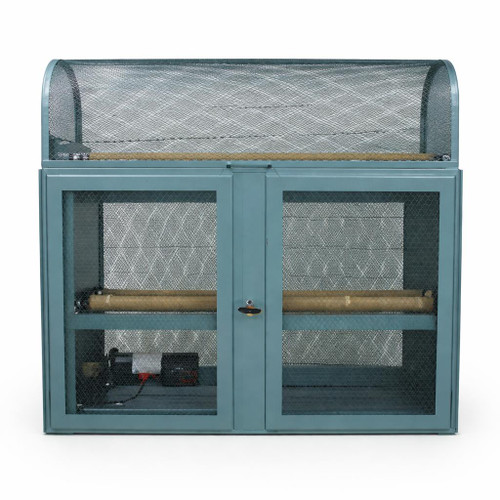

Jar Mill, 802FVM, 1HP, TE 230/460/60/3 Independent Dual Drive

Jar Mill, Model 802FVM: High-Performance Milling with Independent Dual Drive

Experience superior control and reliability with the Jar Mill 802FVM, engineered for a wide range of industrial and laboratory applications. This model features a powerful 1 HP, Totally Enclosed (TE) motor, operating at 230/460V, 60Hz, 3-phase, with an independent dual-drive system for versatile performance.

Key Features:

• Variable Speed Control: Equipped with totally enclosed DC drive motors, the 802FVM allows for precise, solid-state control of roll speed. Adjust the speed anywhere from a gentle 50 RPM to a rapid 300 RPM to perfectly match your material and process requirements.
• Durable, High-Performance Rolls: The rolls are 2 ½ inches in diameter and constructed from a long-wearing, oil, solvent, and chemical-resistant Neoprene rubber. This material is specially designed to bleed off static electricity generated during operation, ensuring a safer work environment.
• Smooth and Secure Operation: Each roll is mounted in robust, lifetime-lubricated ball bearing pillow blocks for smooth, maintenance-free rotation. Free-turning ball bearing jar stops are mounted at each end of the drive rolls, guaranteeing that jars remain securely in place during operation.
• Versatile Jar Accommodation: The mill features a three-position lateral adjustment for the idler roller, enabling it to handle a wide variety of container sizes. It can accommodate standard jar sizes from 000 through size 6, as well as any round container from 2 ½ inches to 15 inches in diameter.
• Optional Jar Positioners: Enhance your milling process with optional jar positioners. Made from durable polyurethane, these positioners keep multiple jars separated and precisely positioned on the rolls. They are simple to install and can be quickly adjusted to any location.

Customizable Options:

Tailor the Jar Mill 802FVM to your specific needs with a range of available options:

• Revolution Counters and Automatic Timers for process monitoring and control.
• Advanced Motor Controls for enhanced operational management.
• Sound-Proof Enclosures to reduce noise levels in your workspace.
• Explosion-Proof Motors for hazardous environments (constant speed of 290 RPM).
• Roll Guard Covers for increased operator safety.

Model 802FVM Jar Mill Specifications:

• Roll Length: 72"
• Overall Dimensions (L x W x H): 90-3/4" x 16-1/2" x 40"
• Motor: 1 HP
• Max Loading Weight (per tier): 260 lbs
• Approximate Shipping Weight: 610 lbs
