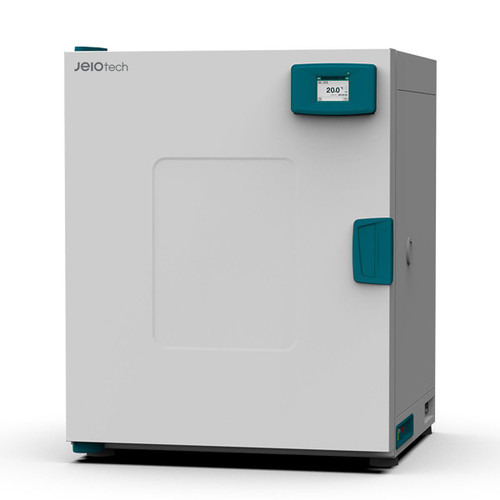

IB4-03AV Incubator, Air-Jacket (Advanced), 25 / 0.88 (L / cu ft), 230V

IB4-03AV Advanced Air-Jacket Incubator – Precision and Efficiency for Reliable Performance

The IB4-03AV Air-Jacket Incubator offers advanced features to meet the demands of modern laboratories, ensuring precise temperature control, optimal space utilization, and user-friendly functionality. Designed for research and testing environments, this incubator stands out with its innovative capabilities, robust construction, and ease of use.

Key Features

Intuitive Large Touch Interface

• 5-inch TFT color LCD display for seamless control.
• User-friendly interface displaying events, alerts, and real-time temperature graphs at a glance.
• Automatically suggests three frequently used temperature settings for quick setup.
• Includes a "Wait On/Wait Off" timer for flexible operation planning.

Unique Structural Functions

• Water Tray Feature: Reduces media drying, extending incubation time and ensuring optimal growth conditions (optional).
• Stackable Design: Double-stackable with an optional stacking set to maximize lab space utilization.

Real-Time Monitoring and Control

• Integration with BMS (Building Management System) for temperature supervision and quick response to abnormalities (optional).
• Remote monitoring and control via LC GreenBox Mobile Monitoring System (optional), allowing access anytime, anywhere.

Convenient Experimentation and Data Management

• Equipped with RS-232/USB ports and software for seamless operation and data management from a PC.
• Automatic data storage with easy export functionality via USB in CSV format for hassle-free editing.
• Logs up to 36 recent events, including errors and door openings, to maintain operational transparency.
• Optional integration with 21 CFR Part 11-compliant LC DataKeeper software, ideal for meeting GMP audit requirements.

Enhanced Temperature Control Performance

• Precision Control: Advanced temperature accuracy and stability with a 3-point calibration system.
• Ramp Control™ Technology: Allows customizable ramping rates (℃/min) for specific experimental needs.
• Uniform temperature distribution through optimized airflow, maintaining variations as low as ±3.5℃ at 37℃ for consistent results.

Detailed Specifications

• Model: IB4-03AV
• Chamber Volume: 25 L / 0.88 cu ft
• Temperature Range: Ambient +5 to 80℃ / 41 to 176℉
• Temperature Fluctuation at 37℃: ±0.10℃ / ±0.18℉
• Temperature Variation at 37℃: ±0.31℃ / ±0.56℉
• Heating Time to 37℃: 44 minutes
• Recovery Time at 37℃: 5 minutes
• Control Panel: 5-inch TFT Color LCD
• Communication Interface: USB-B, RS-232
• Data Storage: Automatic storage in CSV format
• Temperature Ramping Rate: 0 to 2.0℃/min (or 3.6℉/min)

Physical Dimensions

• Interior Dimensions (W x D x H): 300 x 210 x 400 mm / 11.81 x 8.27 x 15.75 inches.
• Exterior Dimensions (W x D x H): 478 x 527 x 604 mm / 18.8 x 20.75 x 23.78 inches.
• Net Weight: 31 kg / 68.34 lbs.

Capacity and Load

• Shelving: Includes 2 standard shelves; expandable to 4 shelves (maximum).
• Max Load Per Shelf: 20 kg / 44.09 lbs.

Electrical Requirements

• 230V, 50/60 Hz, 2.5A for reliable and efficient energy consumption.

Why Choose the IB4-03AV Incubator?

The IB4-03AV combines precision engineering, advanced functionality, and user convenience, making it ideal for laboratories focused on efficiency and accuracy. Whether you’re conducting research, diagnostics, or quality control, the incubator’s robust features and reliable performance ensure it meets the diverse needs of any scientific or industrial application.

Optional accessories and software further enhance its versatility, making the IB4-03AV the perfect choice for modern lab environments.
