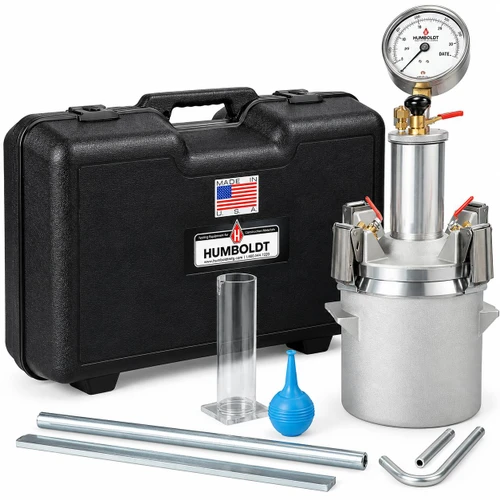

Humboldt Concrete Air Entrainment Meter Kit

Humboldt Concrete Air Entrainment Meter Kit for Accurate Air Content Testing

The Humboldt Concrete Air Meter is a high quality, reliable and easy to use device to measure the air content of freshly mixed concrete. Similar to the AR-B air meter, this meter exceeds ASTM requirements and has an all-brass super pump, the most reliable and highest quality pump available. The meter’s stainless steel clamping system and watertight seal ensures precise measurements. The clamping system has a holding capacity of up to 2,500 lbs, it’s tough. The large easy to read gauge gives clear and accurate readings. The result is very reliable and precise measurements. With its versatility the bucket can also be used as a 0.25 cu ft unit weight measure, it’s a must have for .

Technical Specifications

• Exceeds ASTM requirements

• Easy to use

• Extra durable stainless steel clamping system with four, one-piece, self-locking clamps

• Watertight seal by o-ring

• Large, easy to read, -inch diameter, heavy-duty, direct percentage gauge with calibration adjustments, similar to the Super Air Meter

• Accurate to the nearest 0.1%

• Bucket or pressure chamber has EZ-grip, cast handles

• Bucket can be used as a 0.25 cu ft unit weight measure, and is one of a selection of concrete air meters for various testing needs

• Lid on pressure meter has smooth sloped top for easy cleaning

• Machined base for level setting during

Supports

• ASTM C231

• ASTM C31

• ASTM C192

• AASHTO T152

Additionally, when working with ASTM standards, it's important to understand the ASTM mesh size, crucial for selecting the right sieve based on specific testing requirements.

Features and Accessories

• Humboldt all-brass Super Pump for reliable and accurate measurements

• Large, heavy-duty, easy to read gauge with calibration adjustments, can calculate the SAM number for advanced measurement capabilities

• Bucket has cast handles for a secure grip

• Bucket can be used as a 0.25 cu ft unit weight measure

• Includes:- Durable plastic carrying case with die-cut foam padding

• Tamping rod

• Strike-off bar

• Rubber bulb syringe* Plastic calibration vessel

• Inside calibration tube

• Outside calibration tube

• Consider Adam Equipment scales for any accurate weighing needs.

• Unit weight measure

• Operating instructions

Also, concrete air testing products are available.

Humboldt Concrete Air Meter Kit Applications and Benefits

The Humboldt Concrete Air Meter is used in concrete testing applications:

• Measuring air content in freshly mixed concrete

• Determining unit weight of concrete

• Slump cone tests

• Consolidating

The benefits are:

• Accurate and reliable measurements

• Easy to use for testing

• Durable for long life

• Versatile for multiple uses

• ASTM and AASHTO compliant

• Manages air voids in concrete mixtures for freeze-thaw durability

• Rapid field testing using the chace air indicator method

• Manages water in concrete mixtures to prevent damage from freezing water

Supports: ASTM C231, ASTM C31, ASTM C192, AASHTO T152

The H-2787 air meter is the most precise air content measuring device available. With -treated, cast aluminum and cast-in handles on the base, the H-2786A is heavy duty, yet lightweight and easy to handle.

This air meter has the best clamping system available, with large stainless steel clamp levers and a holding capacity of 2,500 lbs. each. The clamping system provides proper tension by self-locking clamps to secure the lid to the base. Proper tension aided by an o-ring ensures a watertight seal, making it dependable and accurate. Using a high-volume Pump, this system is efficient and fast. The meter has a large, accurate pressure direct percentage gauge with safety glass and bold color dial face. Color coded for entrapped and entrained readings.

• Type B pressure meter

• Molded polyethylene case with inner molded reinforced walls to hold the meter and accessories.

• Plastic Calibration Vessel

• Calibration Outside Tube

• Calibration Inside Tube

• Strike-off Bar

• 24” Long Tamping Rod 5/8” diameter rounded to a hemispherical tip at both ends

• 3 oz. Bulb Syringe

• 16 oz. Rubber MalletEach unit is pressure tested and calibrated before shipment. Each meter is assigned a specific customer serial number. Conforms to ASTM C231 & AASHTO T152

To ensure the Humboldt Concrete Air Meter operates dependably and lasts long, regular maintenance and care is necessary. Start by cleaning the concrete air meter with a soft brush and mild detergent to prevent dirt and debris buildup. This simple step helps maintain the accuracy of your readings.

Check the clamping system and o-ring for wear and tear and replace as needed to ensure a watertight seal which is critical for air content measurements. Calibration is also important; use the calibration tube and make necessary calibration to maintain the meter’s accuracy.

Store in a dry, cool place away from direct sunlight and extr temperatures to prevent damage to the materials. The plastic carrying case is designed to keep the kit organized and protected during transport. Always follow the operating carefully to get accurate results and dependable operation.

Check the gauge and pressure chamber regularly to ensure they are working properly. Use the tamping rod and strike-off bar to prepare the concrete specimen properly and make sure it is well-seated in the pressure chamber. Check the air void spacing and air content in the concrete to meet the required standards.

Refer to the user manual for more maintenance and care instructions and contact the manufacturer if you have any questions or concerns. Proper maintenance will extend the life of your concrete air meter and get you accurate and reliable results.

Compare to Other

When comparing the Humboldt Concrete Air Meter to other air meter on the market such as the Forney Press-Aire Meter and the Gilson Concrete Air Meter, several key advantages stand out. The Humboldt type has a gauge and robust system making it more durable and reliable than many others.

In price, the Humboldt type is competitively priced and offers great value for the quality and features it provides. Its certification and compliance to industry standards such as ASTM and AASHTO ensures accuracy and reliability.

The use of brass in the Humboldt kit makes it more corrosion and wear resistant and longer lasting. The easy to read gauge and simple operation makes it accessible to those with limited experience and its versatility can test various types of concrete including ready-mix concrete.

Customer support and warranty options provides additional peace of mind making the Humboldt Concrete Air Meter a valuable tool for many applications.
