Humboldt Concrete Air Entrainment Meter, 8L

Humboldt Concrete Air Entrainment Meter, 8L

Concrete Air Testing

Concrete air testing is crucial to ensure quality and longevity of concrete structures. By measuring air content in fresh concrete, construction professionals can determine if the right amount of entrained air is present. Entrained air is tiny, evenly distributed air bubbles intentionally introduced into the concrete mix. These air voids are necessary for improving workability of concrete and resistance to freeze thaw cycles. Using concrete air meters, also known as air entrainment meters, allows for measurement of air content to prevent issues like reduced strength or surface defects. Reliable air meters like Concrete Air Meter are must have for anyone who wants to ensure their concrete meets highest standards for durability and performance.

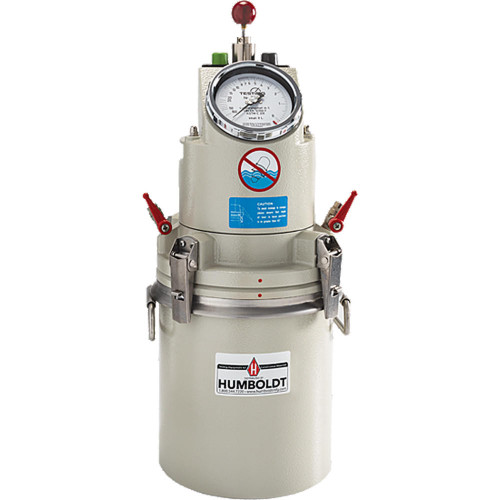

Humboldt H-2782, Concrete Air Entrainment Meter, 8L

Meets: ASTM C231, EN 12350-7, BS 1881, GOST 10181

The H-2782 8 Liter air meter has push buttons for easy test operation. The meter is easy to use and extra durable stainless steel clamping system has four one-piece self-locking clamps that quickly seal the lid to the base with proper tension aided by an o-ring to ensure a watertight seal. It also has stainless steel handles. The large 4-inch (100mm) dia. heavy-duty direct percentage gauge with calibration adjustments is accurate to the nearest 0.1%. This gauge is built into the cover for protection from damage. The meter has a machined base to ensure the meter sets level when testing. The air meter comes with calibration kit and instructions.

Browse Certified MTP for all your concrete test equipment needs like concrete air entrainment meters.

Features and Benefits

The Humboldt Air Entrainment Meter is designed to make air content testing in fresh concrete easy and accurate. It comes with everything you need to get started: calibration tubes and vessel, tamping rod, aluminum straightedge, water syringe and operation. The robust pump has a large easy grip handle to build the necessary pressure for testing and a protective shield to keep the piston area free from dirt and water. Supplied with a hard case and die-cut foam padding, the meter is easy to transport and store and will stay protected on the job site. The Humboldt Air Entrainment Meter is built to last and is a must have for professionals who need precise air content measurements to ensure the strength and longevity of their concrete projects, or concrete vapor emission testing before installing floor coverings.

Technical Specifications and Applications

Meets industry standards such as ASTM and AASHTO, the Humboldt Air Entrainment Meter is suitable for all types of concrete mixes including lightweight aggregates and air entrained concrete. The unit has a highly accurate pressure gauge with ±0.5% accuracy at full scale to give you reliable air content readings every time. The stainless steel calibration vessel and easy to clean construction makes it durable and practical for repeated use in harsh environments. This air meter is for routine concrete testing and quality control, research and development. It helps you identify and address potential issues in concrete mixes to meet project specifications and enhance the durability of the finished structure.

Concrete Air Entrainment Test Accessories:

Tamping Rods for Slump Cone Test have hemispherical tips and are for use when consolidating concrete specimens in tests that include slump, air content and strength or when obtaining precise slump readings during concrete testing.

Concrete Strike-Off Bar is used to remove excess material

Replacement Gauges in Concrete Air Meter Parts are quality gauges that fit most Type B Concrete Air Meters, and tools like the Crack Width Gauge Card are also essential for measuring crack widths in concrete.

Support and Quality Control

Humboldt provides excellent support and quality control for the Air Entrainment Meter. Each unit comes with operating instructions and a user manual to get you started and to maintain accurate results. You have access to a knowledgeable support team via email or phone. The air meter is warranted and you can have confidence in the product. Humboldt also offers a wide range of accessories and replacement parts including calibration vessels, tamping rods and syringes to keep your equipment in top shape. For more information or support visit the Humboldt website or contact the support team.
