Forney LAG-0060 Fresh Concrete Field Test Kit for 6in x12in Concrete Test Cylinders, Lite

The Fresh Concrete Tester Set—Lite is a cheaper kit that has all the tools you need to test fresh concrete.

This concrete test kit includes the popular Digital Scale with Case, 110 lb (50 kg) capacity and 0.1 lb (0.045 kg) readability. The scale is compact 10in x 8in x 2in and easy to take on site. The bucket from the Forney Pressure Air Meter (1/4 cu ft) is also a unit weight measure, makes testing easier. For your soil testing needs, check out the Sand Cone Density Apparatus Set.

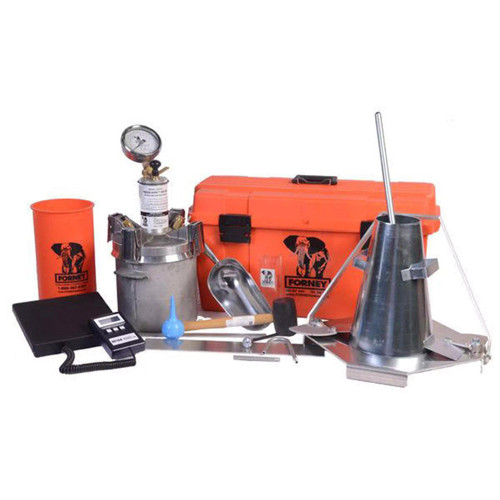

Kit includes:

• PRESS-AIR METER: 1 x Air Meter / Press-Aire Meter for air content measurement. Air meter parts are available separately for easy maintenance. The Press-Aire Meter can also be used for bulk density determining air content.

• SLUMP CONE, SPUN METAL PER DWG. 20647: 1 x Slump Cone

• SLUMP TEST BASE, PORTABLE PER DWG. 40486 REV. H (HM-212): 1 x Portable Slump Test Base (12in x 12in x 1in)

• SCOOP, ROUND MOUTH 38 OZ. (#2 SCRA-38): 1 x Scoop, Round Mouth, 38 ounces (4in diameter, 12in handle)

• TAMPING ROD, 5/8in X 23-1/4in PER DWG. 10540: 1 x Tamping Rod, 23-1/4in (59.1 cm) long with 5/8in (1.59cm) diameter

• SCALE, 110 LB X 0.005 LB MEETS ASTM C94 COMES W/CASE (TIF-9010A): 1 x Digital Field Scale, 110 lb x 0.005 lb

• CYLINDER MOLDS, 6 x 12in PLASTIC W/LIP - 24 PER CASE: 1 x Case of 24 Plastic Cylinder Molds, 6in x 12in (152.4mm x 304.8mm)* STRAIGHTEDGE, ALUMINUM 2in x 18in: 1 x Aluminum Strike Off Bar, 2in x 18in (5.08cm x 45.72cm)

• HAMMER, RUBBER 16 oz (RM16): 1 x Rubber Hammer, 16 oz (0.45 kg)

• THERMOMETER, 25/125°F, POCKET 1in DIAL, 5in STEM, 1 DEG INC, (T125): 1 x Thermometer, 25°F to 125°F (-4°C to 52°C), 5in (12.7 cm) stem, 1in (2.54 cm) dial

Meets:

• AASHTO T152

• ASTM C 231

Accessories:

• Tamping Rods for Slump Cone Test: These rods have hemispherical tips and are used to consolidate concrete specimens during slump, air content and strength tests.

• Concrete Strike-Off Bar: 2in x 18in aluminum bar to remove excess concrete from samples.

• Replacement** Gauges and Pumps:** High quality replacement gauges and air pumps to fit most classic Type B Concrete Air Meters, including those used in the USA across various industries.

The Forney Pressure Air Meter for Concrete Test Kit for 6in x12in Concrete Test Cylinders is a complete and affordable solution for fresh concrete testing. The Lite version has everything you need to perform accurate and consistent field tests, including determining air content determination. The Digital Scale provides precise measurements, the air meter, slump cone and other tools meet ASTM and AASHTO testing standards so your project meets industry requirements.

The components are durable and easy to use, made from high quality materials. Perfect for small residential projects to large commercial projects. The 6 x 12in plastic cylinder molds are for reliable casting and curing of concrete samples, 24 molds per case for heavy testing. The cast aluminum base of the air meter allows for easy water clean up.

Forney’s kit and accessories are used throughout the USA and are trusted by construction professionals for accuracy, reliability and following testing protocols. Whether in a lab, on a job site or in an industrial setting this kit will give you reliable results for fresh mix testing. Forney LA-0316 Concrete Air Meter Kit measures entrained air in fresh compacted concrete. The most popular kit in the industry for air entrainment testing, gives fast and accurate results, a must have for any fresh mix testing operation.

The kit consists of two parts: the base (measuring chamber) and the cover assembly. The base is aluminum with machine flanged rims for durability and easy clean up. The cover assembly has pressure gauge, air release lever, air bleeder valve, air pump and valves for testing and calibration.

Easy to disassemble for replacement of worn or damaged parts for long term reliability. Includes all the accessories you need for accurate measurements: syringe, tamping rod, strike-off bar, calibration vessel, calibration tubes, inside and outside tubes, calibration vessel, orange carrying case, parts list and instructions. Calibration set is critical for precise measurements.

One of the benefits of this kit is it’s barometric pressure independent so you get consistent and reliable results. Forney LA-0316 is ASTM C231 compliant, Meter classic Type B and operates on the principle of Boyle’s Law. Cast aluminum with stainless steel clamps and orange carrying case, 32 lb (14.5 kg) and meets Test Methods: AASHTO T152 and ASTM C 231. Conforms to ASTM C231 and AASHTO T152 standards.

Specifications

Forney Press-Aire Meter is ASTM C231, Meter classic Type B. Operates on the principle of Boyle’s Law. Base capacity is 1/4 cubic feet for various determinations: unit weight, volume change and bulk density in field conditions.

Meets ASTM C-231 requirements, capacity of at least 0.20 ft³ (0.006 m³) and barometric pressure independent. Stainless steel clamps are fresh concrete corrosion resistant for long life and easy to use. 4 inch diameter sealed gauge with adjustable pointer and stainless steel case for clear and accurate readings.

Brass petcocks have ball valves for easy and durable operation and check valve eliminates the problems of older O-ring seals. Super Pump requires fewer strokes to get to test pressures for more efficiency and user convenience. Forney Press-Aire Meter that measures air is a must have for determining entrained air content in fresh mix. It measures the volume change when pressure is applied to the fresh concrete to make sure the fresh concrete has the right amount of air entrainment. That’s key to quality and durability of the concrete.

Used in construction, engineering and research industries, the meter is a key tool for quality control and quality assurance. It makes sure the fresh concrete meets the air entrainment requirements and gives you the data to make informed decisions.

So, what measures entrained air content in fresh mix concrete? Forney Press-Aire Meter with orange carrying case ensures the fresh mix concrete meets the specifications and that’s the key to success and longevity of the project. The orange color helps locating the items.

Concrete Testing

Concrete testing is a critical process in the construction industry, ensuring that the material used meets the required standards for strength, durability and performance. One of the key aspects of concrete testing is determining the entrained air content which impacts the concrete’s workability, freeze-thaw resistance and overall durability. By measuring properties such as unit and bulk density, professionals can assess the quality of fresh mix concrete and make informed decisions to optimize the mix design. Accurate testing helps prevent potential issues in the final structure, ensures safety and longevity. Enhance your concrete testing process by utilizing effective cement chamber solutions designed for optimal curing and testing efficiency.

Forney Press-Aire Air Meter Test Kit

Forney Press-Aire Concrete Air Meter Test Kit for 6in Cylinder Molds, Lite, is a complete solution for accurate and fast field testing of fresh mix concrete. Includes Press-Aire Meter, slump cone, digital scale and accessories in a durable carrying case. Press-Aire Meter measures entrained air content in fresh compacted concrete, meets ASTM and AASHTO standards. Components are made of aluminum and stainless steel for durability and easy use in the field.

Applications and Benefits

The Forney Air Meter Test Kit is used in construction, engineering and research industries for quality control and assurance. Applications range from small residential to large commercial projects where entrained air content measurement is critical. Benefits include fast and accurate results, industry standards compliance and multiple tests such as unit weight and bulk density determinations. Kit is easy to disassemble and maintain for long term reliability and performance. By using this kit, you can ensure your concrete meets the specifications for strength and durability.

Press Aire Meter Kit Maintenance

Maintenance of the Press Aire Meter Kit is important for accurate and reliable results. Clean the interior surfaces and calibration tubes regularly to prevent buildup and ensure smooth operation. Replace worn or damaged parts promptly to maintain measurement integrity. Check the air bleeder valve, air release lever and pressure gauge regularly for proper function. Calibrate the meter periodically using the supplied calibration vessel to ensure accuracy. By following these maintenance practices you can extend the life of your kit and your concrete testing.

Conclusion and Recommendation

In summary, the Forney Air Meter Test Kit for 6in Cylinder Molds, Lite is a must have for construction professionals. The complete kit, ease of use and industry standards compliance makes it a reliable choice for concrete testing. Whether for small or large projects, this kit has the tools to ensure quality and durability of fresh mix concrete. Reliable and accurate testing solutions Forney’s commitment to quality and innovation is evident in this kit, make it a recommended investment for any construction professional looking for reliable and accurate testing solutions.
