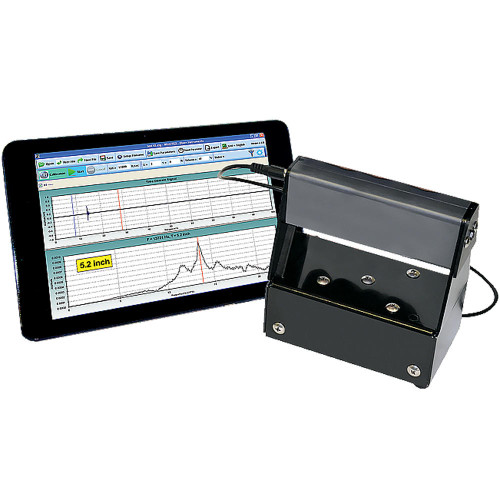

Concrete Thickness Gauge

The Concrete Thickness Gauge is a non destructive testing device used to measure the thickness of concrete slabs, tunnel linings, walls and other plate like structures. This is a must have tool for construction professionals, engineers and

What is a Concrete Thickness Gauge?

A concrete gauge is a non destructive testing device used to measure and test the thickness of concrete slabs, tunnel linings, walls and other plate like structures. This is a must have tool for construction professionals, engineers and inspectors to ensure the quality and safety of concrete structures. The concrete thickness gauge measures the concrete without the need to drill, core, or excavate sites using ultrasonic testing making it a cost effective and efficient solution. By giving accurate measurements it helps to maintain the integrity of concrete slabs and other plate like structures to meet industry standards.

How it Works

The Concrete Thickness Gauge uses the Impact Echo principle to measure the concrete slabs, tunnel linings, walls and other plate like structures. This non destructive testing method involves applying a mechanical impact to the surface of the concrete, generating a stress wave that travels through the material. The stress wave is then reflected back to the surface where it is detected by the gauge. By measuring the time it takes for the stress wave to travel through the concrete and back the gauge can calculate the concrete thickness.

The Impact Echo principle is based on the fact that the velocity of the stress wave is affected by the properties of the concrete, density and modulus of elasticity. By calibrating the gauge to the type being tested, users can get accurate thickness measurements. Calibration ensures greater accuracy in thickness measurements. Also the gauge can detect voids, honeycomb areas, cracks and delamination, making it a must have tool for quality control and assurance in construction projects.

What is a Sonic Echo Foundation Tester to measure Concrete Slab Thickness?

Sonic Echo Foundation Tester (Concrete Thickness Gauge) is a nondestructive system for measuring the concrete slabs, tunnel linings, walls, and plate-like structures. It can take individual coating thickness measurements, high accuracy, repeatability, and thickness measurement accuracy. Using the Impact Echo principle, it can detect voids, honeycomb areas, cracks, and delamination in concrete. No invasive methods required, it’s a must-have for checking concrete structures.

Features

• Measures concrete slab thickness without drilling, coring or excavating

• Detects voids, honeycomb areas, cracks and delamination in concrete

• For pavements, tunnel linings, walls and plate like structures

• User friendly, no special training required

• Designed for continuous use with ergonomic probes that enhance user comfort

• Connect to a Windows based computer or tablet for data acquisition and analysis with the Profoscope+ Rebar Locator and Covermeter.

• Perfect for professionals who want fast and accurate concrete thickness measurements.

Calibration and Measurement

Calibration is a must for accurate thickness measurement and accurate determinations with a concrete thickness gauge. The device supports following standards like ASTM C1383, ensuring it adheres to recognized guidelines in non-destructive testing for integrity. The device can be calibrated at a known thickness location to get the concrete velocity for the job. This concrete velocity allows the gauge to adjust to the type being tested, to get reliable and precise results. The concrete thickness gauge measures concrete thickness using the Impact Echo principle which detects voids, honeycomb areas, cracks and delamination. The device can determine concrete slab thickness in standard and thick mode, with known thickness range of 3.2” to 6‘ (81mm to 1.8m) and 20” to 6‘ (50.8cm to 1.8m) respectively. This makes it suitable for various applications from pavements to tunnel linings. The signal strength indicator ensures accurate determinations by confirming reliable readings, thereby preventing false readings and enhancing the tool’s effectiveness in various conditions.

Concrete Thickness Gauge

The Concrete Thickness Gauge determines concrete slabs, tunnel linings, walls and plate like structures without drilling, coring or excavating. It can determine concrete slab thickness in standard and thick mode, with known thickness range of 3.2” to 6‘ (81mm to 1.8m) and 20” to 6’ (50.8cm to 1.8m) respectively. For those interested in monitoring cracks, consider using a Crack Gauge Card to measure the widths of gaps in concrete structures.

In addition to concrete slab thickness, the gauge can also determine coatings. The gauge can take individual coating thickness measurements, high accuracy and repeatability. It can detect voids, honeycomb areas, cracks and delamination, making it a must have for construction professionals, engineers and inspectors. User friendly, no special training required. Connects to a Windows based computer or tablet for data acquisition and analysis, with the included WinCTG2 software to analyze and report data. Can be used to set up a test grid for accurate coating thickness, to inspect all areas of the structure. The device features replaceable probe tips for enhanced usability.

Meets ASTM C1383 standard, gets accurate and reliable results, widely used in construction and engineering industry. This standard specifies the method for concrete slab thickness using Impact Echo principle, so the device is reliable and precise for various applications.

Reporting and Data Management

The concrete thickness gauge produces a known thickness summary table that can be exported to most spreadsheets in comma separated format. This feature allows users to analyze and report data, a must have for construction professionals and inspectors. The device connects to a user provided Windows based computer or tablet for data acquisition and analysis using the WinCTG2 software. The software features facilitate data acquisition and analysis, enhancing the functionality of the gauge. Also can be used to set up a test grid for accurate coating known thickness, to inspect all areas of the concrete structure. The software also supports instant report generation, allowing users to quickly transfer individual coating thickness measurements to various devices for analysis. This data management feature makes concrete thickness assessment more efficient and accurate.

Standards: ASTM C1383

The Concrete Thickness Gauge meets ASTM C1383 standard which specifies the method to determine concrete slab thickness using Impact Echo. This standard ensures the device gets accurate and reliable results, that's why it's widely used in construction and engineering industry. By following this standard the Concrete Thickness Gauge gives you confidence in structure and known thickness. For additional non-destructive testing methods, consider the ASTM C805 standard for concrete strength evaluation. Discover essential concrete testing equipment for accurate construction quality, exploring tools for strength, slump, and non-destructive testing. Read more!

Technical Specifications

The concrete thickness gauge has the following technical specifications:

• Thickness range: 3.2” to 6‘ (81mm to 1.8m)

• Thick mode thickness range: 20” to 6’ (50.8cm to 1.8m)

• Power: CR123A 3V Lithium battery

• Frequency: 10Hz

• Samples: 4545

• Sampling rate: 45454 samples per second

• Maximum Nyquist frequency: 22700Hz

• Test Head Cable length: 3‘ (910mm)

These features ensure the device gives accurate and reliable results, a must have for professionals. The device is also designed to operate effectively in harsh environments.

The concrete thickness gauge is user friendly, no special knowledge or training required to operate. However training and support is available to get the most out of the device. The manufacturer provides comprehensive training and support, user manuals, instructional videos and technical support. So users can use the device with confidence to determine concrete slab thickness and detect any defects or irregularities in the structure. By providing these resources the concrete thickness gauge prevents false readings and makes assessment more accurate and reliable.

For comprehensive concrete assessment, consider using tools like the Concrete Maturity Meter, 4-Channel, which monitors temperature and strength over time.

NDT with Concrete Thickness Gauge:

• Faster: Measures over 60 readings per minute in standard mode and over 140 readings per minute in scan mode.

• More Accurate: Gives precise and reliable results, no false or incorrect readings.

• Cost Effective: No drilling, coring or excavating required, reduces inspection and maintenance cost.

• Safer: Reduces risk of injury or damage to personnel and equipment, no hazardous materials and procedures.

NDT with Concrete Thickness Gauge makes structure assessment fast, accurate and safe.

Standards: ASTM C1383 for concrete slab thickness

The Concrete thickness gauge will determine concrete slab thickness without drilling. No more drilling, coring or excavating to measure concrete slab thickness. The device comes with easy instructions for setup and operation. The CTG-2 is a non-destructive system to measure thickness and integrity of concrete slabs. The Concrete thickness gauge detects: voids, honeycomb areas, cracks and delamination.

Software:

Olson’s WinCTG-2 software for data acquisition and analysis.* Report: Set up a test grid with X and Y coordinates. Generate a thickness summary table which can be exported to most spreadsheets in csv format. The software also allows for concrete velocity to transfer and analyze individual coating thickness readings, for better data management and reporting. Calibrate the unit at a known thickness location to get the concrete velocity for the job.

TABLET NOT INCLUDED.

Range: 3.2” to 6’ (81mm to 1.8m)

Thick Mode Thickness Range: 20” to 6’ (50.8cm to 1.8m)

Power: CR123A 3V Lithium battery

Frequency: 10Hz

Samples: 4545

Sampling rate: 45454 samples per second

Maximum Nyquist frequency: 22700Hz

Test Head Cable length: 3‘ (910mm)
