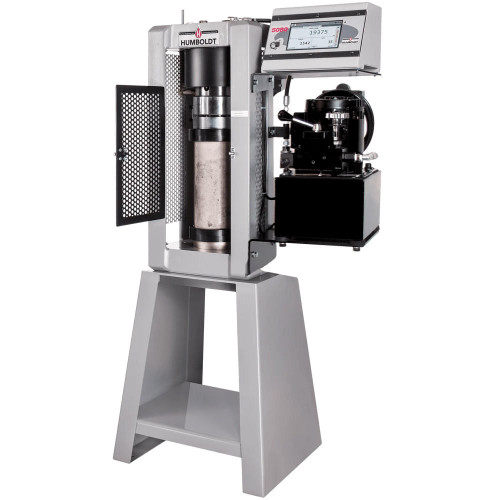

Humboldt HCM-2500iHP 250K Concrete Compression Test Machine, 3/4HP
The Humboldt HCM-2500iHP uses the same 250,000lbf (1,112kN) HCM-2500 frame as the HCM-2500iH but with a larger 3/4HP hydraulic pump in place of the 1/2HP unit. It is set up out of the box for 6x12in cylinders and accepts Humboldt spacers and platens for 4x8in, 3x6in and 2x4in cylinders, cubes, beams and masonry. For the 1/2HP version, see the HCM-2500iH.
Specifications
- Testing range: 500 to 250,000lbf (1,112kN maximum), accuracy ±0.5% of indicated load
- Strength limit: up to 7,000psi on 6in diameter cylinders
- Vertical opening: 19.375in (492mm); horizontal opening: 9.25in (235mm), measured without platens
- Piston stroke: 2.5in (63.5mm); upper and lower platens 6.5in (165mm) diameter
- Overall size with stand: 27 x 17 x 56.312in (686 x 432 x 1,430mm), WxDxH
- Oil reservoir: 2gal (7.6L)
- Pump: 3/4HP, 110V, 60Hz
- Steel protective doors
- Standards: ASTM C39, ASTM E4, AASHTO T 22
HCM-5090 Controller
- HCM-5090 digital indicator with 7in high-resolution color touchscreen, designed for manually operated pumps
- Two load channel inputs (can control two compression frames) and two displacement inputs for compressometer and extensometer testing
- Guided setups for ASTM C39, C78, C293, C469, C496, C1019, C109/C109M and EN 12390-3
Included
- HCM-2500 load frame
- HCM-5090 digital indicator
- 3/4HP hydraulic pump
- Platens for 6x12in (150 x 300mm) cylinders
Platens, Spacers and Test Sets
- HCM-0639 spacer for 4x8in cylinders and HCM-0615 spacer for 2x4in cylinders
- HCM-0023L platen for 3x6in and 2x4in cylinders
- HCM-0101 replacement cylinder platen
- HCM-0120 cylinder splitting set (includes 12.5 x 7in lower bearing plate)
- HCM-0119B flexural beam attachment
- HCM-0106 masonry platen for HCM-2500 series
- HCM-0112A 2in cube set and HCM-0113 6in cube set
- HCM-0135 cylinder loading shelf and feeler gauge set
The mounting stand is not included; Humboldt specifies the HCM-0200 floor stand for this frame. For 6x12in pad capping, add 6in neoprene pad caps, 6in steel retainer set and perpendicularity verification device for 6x12in cylinders.
