Concrete Bucket, Lightweight Low-Profile, 2-1/2 Cubic Yards

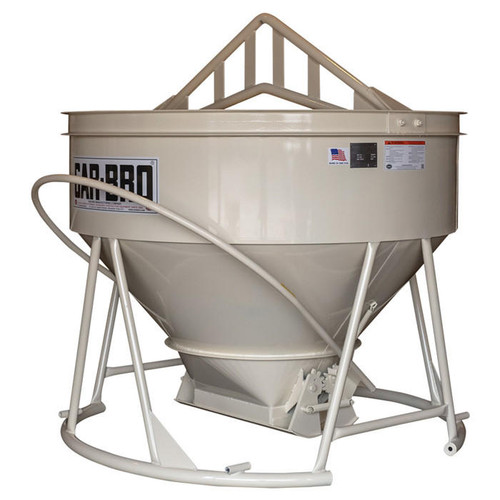

Gar-Bro 469-LP Lightweight Low-Profile Concrete Bucket

The Gar-Bro 469-LP is a 2-1/2 cubic yard concrete bucket from the LP-Series, designed for general contractors who need a high-volume, low-profile, and lightweight solution for concrete placement. Built to meet or exceed ASME design standards, this bucket combines superior capacity with ease of use, making it an ideal choice for demanding job sites.

Key Features

• Low-profile design for maximum volume without sacrificing maneuverability
• Non-jamming, grout-tight, self-closing double clamshell gates (15" x 22") for reliable and controlled discharge
• Large volume, low loading height of 56 inches for faster, more efficient charging
• Exclusive one-piece lifting bail reduces obstructions in the bucket's top opening area, streamlining the charging operation
• Fast-acting bail-type handle for easy and precise control during discharge
• Accommodates optional side discharge chute without removal when resting on the ground — simply remove the pin and chain for quick installation

Optional Attachments

The 469-LP is compatible with a range of optional accessories to suit a variety of job site needs, including:

• Item 409 Rubber Accordion Hoppers for dust-free concrete placement
• Side discharge chutes for flexible directional pouring
• Air-operated gate systems for hands-free operation
• Extension collars to increase bucket capacity

Specifications

• Item No.: 469-LP
• Rated Capacity: 2-1/2 Cu. Yds.
• Level Capacity: 69 Cu. Ft.
• Loading Height: 56 inches
• Inside Diameter: 72 inches
• Gate Size: 15" x 22"
• Weight: 780 lbs.

Trade Dress Notice

Gar-Bro claims the unique overall look and feel of its LP-Series concrete buckets as proprietary trade dress, comprising the configuration and placement of the lifting bail, gate, hooped-type wrap-around gate lever, and gate springs. Unauthorized copying is strictly prohibited.
