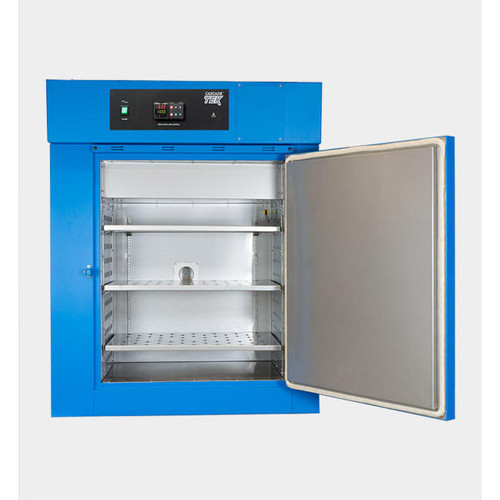

Cascade TEK TFO-10 Digital Lab Oven, 10.6CF, Max Temp 300C

Cascade TEK TFO-10 Digital Forced Air Lab Oven, 10.6CF, Max. Temp 300C

Cascade TEK’s Model TFO-10 is a large capacity forced air drying oven designed to meet both manufacturing and laboratory requirements. Ergonomically designed for easy, comfortable access and top viewing controls, with additional optional lower cabinet storage space.

• Programmable Watlow ramp and soak controller can store and execute different drying profiles.
• Integrated datalogging capabilities available as an upgrade for advanced monitoring and data collection.
• Independent Over Temperature Protection Failsafe
• Rear access port allows for feed through, power cable connections into the oven
• Additional access ports for feedthrough and power connections can be added for enhanced functionality.
• Analog Output
• Adjustable shelves included
• Additional shelves available to increase capacity.
• Custom racks can be provided for specialized needs and improved operational efficiency.
• Door opening options and customizations available for specific application requirements.
• Feedthrough connections can be customized to support complex processes.
• AC power configuration options to match your facility’s requirements.
• FAT insulation for energy efficiency and superior heat retention.
• Ovens are in stock and ready to ship
• Made in the USA

Cascade TEK understands that every requirement is unique. Ask about modifying our ovens to meet your exact requirements. Popular modifications include racks, access ports, controllers, and more. Cascade TEK can tailor ovens for specific application cascade tek needs, ensuring the right solution for your process.

10.6 cu.ft. (300 liters)

29.8” x 20.6” x 30.0 (757 x 524 x 762 mm)

44.1” x 29.9” x 56.8” (1121 x 760 x 1442 mm)

Unit weight: 357 lb (162.8kg)

Shipping weight: 449 lb (204kg)

3 standard, 8 Maximum

3”

220V-240V

15°C above ambient to 306°C

15 minutes to 150ºC

3 minutes to 150ºC

±1.5°C

51 CFM
