ATS Bending Beam Rheometer, Touchscreen Controller

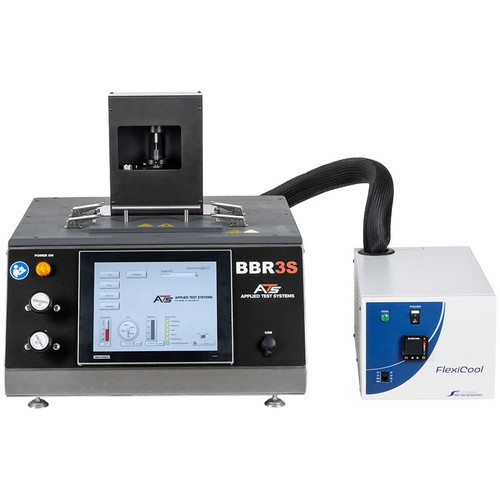

ATS Bending Beam Rheometer 3S (BBR3S) - Touchscreen Controller

The Applied Test Systems (ATS) Bending Beam Rheometer 3S (BBR3S) is the latest and most advanced version of this industry-leading instrument. Designed to perform flexural tests on asphalt binder and similar specimens, the BBR3S meets the requirements of AASHTO T 313, AASHTO TP 87, ASTM D6648, GOST 58400.8-2019, and BS EN 14771 specifications as part of the PG grading system according to Superpave. As an ATS original, the BBR3S is the first of its kind to feature an internal computer system with touch screen technology, making it the most user-friendly and efficient BBR on the market.

System Components

Each BBR3S comes complete with everything you need to get started, including:

• Fluid bath base with built-in touchscreen computer
• Load frame
• External refrigeration unit
• Calibration kit with carrying case

Temperature Range and Measurement

The BBR3S features a -40°C to 25°C temperature range, which is efficiently and accurately calculated by a platinum RTD measuring device. This wide temperature range makes the BBR3S ideal for determining a sample's critical cracking temperature and low temperature PG grade. The 500g load cell and changeable specimen supports make it easy to transition the BBR3S for crack sealant testing.

Touchscreen Technology

The BBR3S features a 12-inch industrial-strength touchscreen display, making it easy to enter and adjust test parameters. Operators can customize a multitude of test parameters, including deflection plot, load plot, bath temperature, stirrer speed, specimen size, testing times, load, and testing company. The built-in Ethernet connection allows users to monitor their equipment remotely using a tablet, smartphone, or other mobile device.

Features

• New and improved LVDT calibration disk and weight pan with enhanced software update (2.8.1 and later)
• 12-inch industrial-strength touchscreen display
• Programmable test parameters including deflection plot, load plot, bath temperature, stirrer speed, specimen size, testing times, load, and testing company
• Changeable specimen supports for easy transition to crack sealant testing
• Remote monitoring capabilities via built-in Ethernet connection
• Compact external chiller with reduced noise during operation
• Customizable report settings, including company logo, notes, and accreditations
• Seven pre-programmed language options: English, Spanish, German, French, Chinese, Italian, and Arabic
• Test data available in CSV and HTML formats

Unit Includes

Specimen Mold Kit (5 Molds)

• Aluminum casing bars, mylar strips, and holding bands
• 127mm length with end piece location marks
• 6.4mm thick, 12.7mm wide

Calibration Kit

• 1 step disk and index
• 4 x 50 gram weights
• 2 x 2 gram weights
• 1 confidence beam
• 1 non-compliance beam
• Wooden storage case

Crack Sealant Mold Kit (6 Molds)

• Holding bands
• Aluminum bars, end pieces, and plate
• 12 x 165.00mm x 19.00mm side bars
• 12 x 12.70mm x 19.00mm spacer bars
• 6 x 177.00mm x 13.00mm bottom plates
• Stylus and clip

Technical Specifications

• Temperature Range: Ambient to -40°F (-40°C)
• Electrical: 115V, 50/60Hz, 2 amps, 1-phase
• Product Dimensions: 49 x 49 x 41in (1,245 x 1,245 x 1,040mm) W x D x H

Meets Test Methods

• AASHTO T313
• AASHTO TP 87
• ASTM D6648
• GOST 58400.8-2019
• BS EN 14771
