Analog Soil Resistance Meter

Soil Resistance Meters are essential tools for conducting soil resistivity testing using the Soil Resistivity Kit. These meters measure the average resistivity of soil to a depth equal to the spacing between electrodes. Available in both analog and digital versions, each meter comes with a NIST Traceable Certificate of Calibration.

Analog Soil Resistance Meter

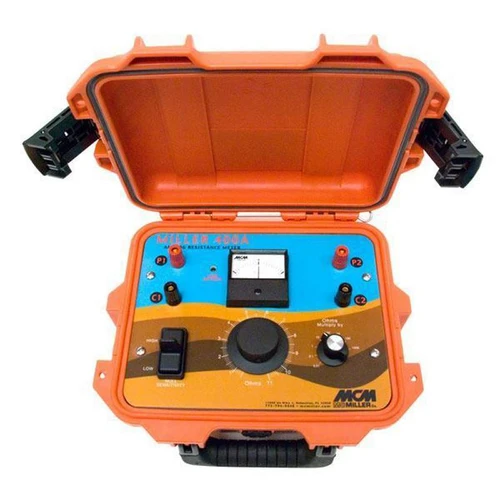

The analog meter provides direct soil resistance readings from a clear, easy-to-read dial, eliminating the need for additional calculations. With a wide measurement range of 0.01 ohms to 1.1 megaohms and high sensitivity, it features a large, user-friendly dial. The device operates on C-cell alkaline batteries for reliable performance.

The meters are housed in lightweight, rugged, weatherproof plastic cases with an IP67 rating, making them durable and safe for outdoor use.

Key Features:

• Quick, straightforward results with no manual calculations
• Durable, weatherproof case for use on wet ground
• Utilizes the 4-Pin Wenner Method for accurate testing

What’s Included:

• Analog or Digital Soil Resistivity Meter
• NIST Traceable Certificate of Calibration

Technical Specifications:

• Accuracy: ±5% of reading
• Temperature Range: -20°C to 54°C (-4°F to 129°F)
• Measurement Range: 0.01 Ohms to 1.1 Mega Ohms
• Frequency: 97Hz
• Power Supply: C-cell industrial alkaline batteries
• Dimensions: 12 x 10 x 5 in (310 x 250 x 127mm)

Standards Compliance: ASTM G57, AASHTO T 288, ASTM G187

Designed for efficiency and reliability, Soil Resistance Meters provide precise measurements to meet your soil testing needs.
