6in Sector Face Tamping Head for Proctor Soil Compactor

6-inch Sector Face Tamping Head

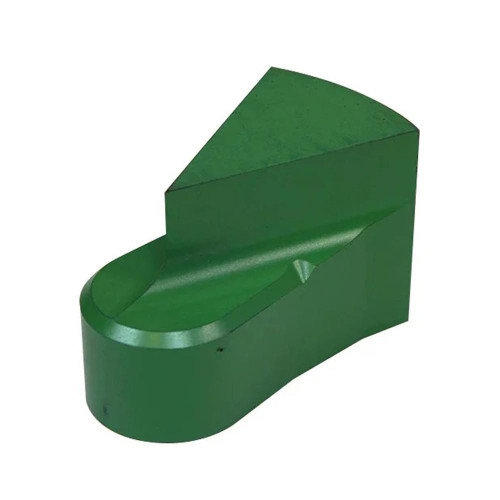

The Rainhart 662-TMP-6S is a 6-inch sector face tamping head specifically designed for use with the Rainhart 662EP Proctor Soil Compactor. Weighing 3 lbs, this tamping head is a crucial component for performing various soil compaction tests with precision and ease.

Seamless Integration with the Rainhart 662EP Proctor Soil Compactor

Rainhart tamping heads are engineered to be fully interchangeable with a single shaft on the 662EP compactor, eliminating the need for costly additional parts and streamlining your testing process. This design allows for quick and easy transitions between different testing standards.

The Rainhart 662EP Proctor Soil Compactor is a leader in the industry, renowned for its versatility, high efficiency, and low maintenance requirements. Its innovative circular compaction pattern automatically adjusts to the specimen height, ensuring uniform blows without manual adjustments between layers. This unique method, where the tamping head revolves around a stationary sample, yields more accurate and repeatable results in shorter cycle times.

Required for Multiple Testing Standards

The 662-TMP-6S is essential for complying with several key industry standards:

• ASTM D698 & AASHTO T99 (Standard Proctor): Requires the use of the 662-TMP-6S and the 662-TMP-4C (4" Circular Face Tamping Head).
• ASTM D1557 & AASHTO T180 (Modified Proctor): Requires the Standard Proctor heads plus the 662-TMP-SW supplemental weight (4.5lb).
• TxDOT TEX-113E: Requires the 662-TMP-6S and the 662-TMP-SW supplemental weight.
• TxDOT TEX-114E: Requires the 662-TMP-6S, the 662-TMP-4S (4" Sector Face Tamping Head), and the 662-TMP-SW supplemental weight.

Rainhart 662EP Key Features & Benefits:

• Broad Standards Compliance: Meets ASTM D698/D1557, AASHTO T99/T180, and various state-specific methods like TxDOT and FLDOT. It's also suitable for LBR and CBR testing.
• Automation and Efficiency: A user-friendly programmable counter allows you to set the desired number of blows. The test runs automatically and stops once the count is reached, freeing up technician time.
• Rapid-Change Design: Switch between Standard Proctor (12" drop) and Modified Proctor (18" drop) heights quickly and easily.
• Simplified Maintenance: Designed for easy repair, all parts on the compactor can be replaced using common hand tools, minimizing downtime.
• SCA Compatible: The only soil compactor compatible with the Soil Compaction Analyzer (SCA) for advanced data collection and analysis.

Technical Specifications (Rainhart 662EP Compactor):

• Weight: 270 lbs
• Dimensions: Approx. 26”W x 24”D x 61”H (shaft lowered), with a max operating height of 81”.
• Motor: Standard 115VAC / 60 Hz, 5.9 FLA. An optional 220VAC / 50 Hz, 3.0 FLA motor is also available.

Available Accessories and Parts:

To create a complete testing solution, Rainhart offers a comprehensive list of accessories:

• Tamping Heads:
  • 662-TMP-6S: 6" Sector Face (3lb)
  • 662-TMP-4C: 4" Circular Face (3lb)
  • 662-TMP-4S: 4" Sector Face (3lb)
• Supplemental Weight:
  • 662-TMP-SW: For Modified Proctor tests (4.5lb)
• Molds, perforated base plates, and finishing tools for any soil compaction requirement.
