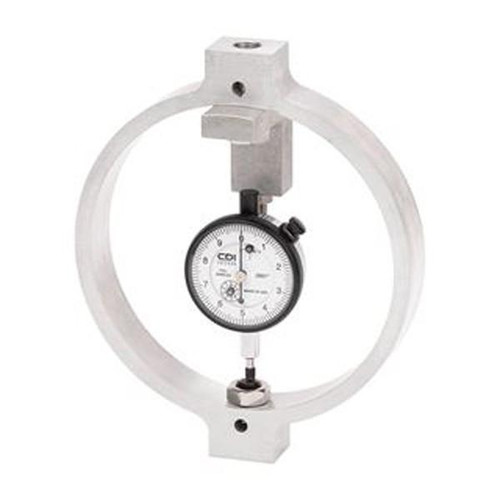

Load Rings, also known as proving rings, are precision instruments designed for accurate force measurement in soil testing and other laboratory applications. Crafted from high-strength aluminum alloy, these rings are built to withstand repeated use while maintaining consistent performance through repeatable elastic deformation.

Each Load Ring is equipped with a mechanical dial indicator with a resolution of 0.0001in, providing force measurements with an impressive accuracy of ±0.5%. A calibration chart is included with every ring, making it easy to convert deformation readings into precise force values — no guesswork required.

Available in eight capacities ranging from 250 to 10,000lbf, Load Rings are incredibly versatile and suitable for a wide range of laboratory tests. The 1/2inx20tpi mounting hole ensures seamless compatibility with Gilson and other manufacturers' load frames and direct shear units, making integration into your existing setup straightforward and hassle-free.

Key Features

Engineered for precise force measurement in laboratory soil tests

High-strength aluminum alloy construction for long-lasting durability

±0.5% accuracy for consistent, reliable performance

Mechanical dial indicator with 0.0001in resolution for detailed readings

Includes a calibration chart for easy and accurate force plotting

Available in eight capacities (250 to 10,000lbf) to suit a variety of applications

Compatible with Gilson and other manufacturers' load frames and direct shear units

What's Included

• Load Ring
• Mechanical Dial Indicator (0.0001in resolution)
• Calibration Chart

Specifications

• Accuracy: ±0.5%
• Load Capacity: 500lbf
• Resolution: 0.0001in
• Material: High-strength aluminum alloy
• Mounting Hole: 1/2inx20tpi

Available Capacities: 250, 500, 1000, 2000, 3000, 5000, 7500 and 10,000lbf
