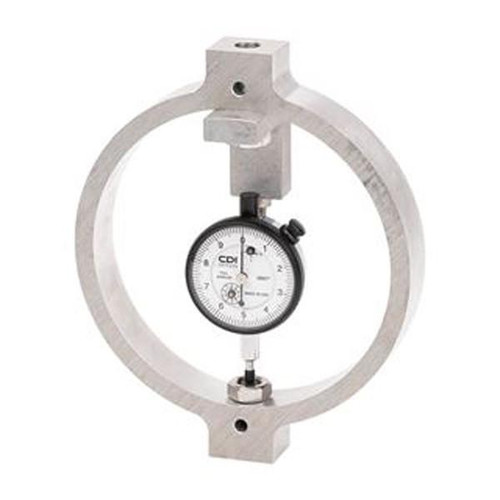

Load Rings, also known as proving rings, are high-precision instruments engineered for accurate force measurement in soil testing and other laboratory applications. Constructed from high-strength aluminum alloy, these rings are built to withstand repeated use while maintaining exceptional accuracy through consistent elastic deformation.

Each Load Ring measures applied forces with ±0.5% accuracy, paired with a mechanical dial indicator offering a fine resolution of 0.0001in. This combination ensures reliable, repeatable readings across a wide range of testing conditions. A calibration chart is included with every unit, making it straightforward to convert ring deformation readings into exact force values — saving time and reducing the risk of errors in the lab.

Available in eight capacities ranging from 250 to 10,000lbf, these Load Rings are versatile enough to suit a variety of testing requirements. The standard 1/2inx20tpi mounting hole ensures seamless compatibility with Gilson load frames and direct shear units, as well as equipment from other leading manufacturers.

Key Features

• Precision-engineered from high-strength aluminum alloy for durability and longevity
• ±0.5% measurement accuracy for reliable, repeatable results
• Mechanical dial indicator with 0.0001in resolution for fine, detailed readings
• Includes a calibration chart for quick and easy force value conversion
• Eight capacity options ranging from 250 to 10,000lbf to suit various testing needs
• Compatible with Gilson and other manufacturers' load frames and direct shear units via 1/2inx20tpi mounting hole
• Ideal for laboratory soil testing, including consolidation and direct shear tests

What's Included

• Load Ring
• Mechanical Dial Indicator (0.0001in resolution)
• Calibration Chart

Specifications

• Accuracy: ±0.5%
• Load Capacity: 1,000lbf
• Resolution: 0.0001in
• Mounting Thread: 1/2inx20tpi
• Material: High-strength aluminum alloy

Available Capacities: 250, 500, 1,000, 2,000, 3,000, 5,000, 7,500, 10,000lbf
