1.4in Diameter Porous Stone, 0.25in Thick

1.4in Diameter Porous Stone, 0.25in Thick

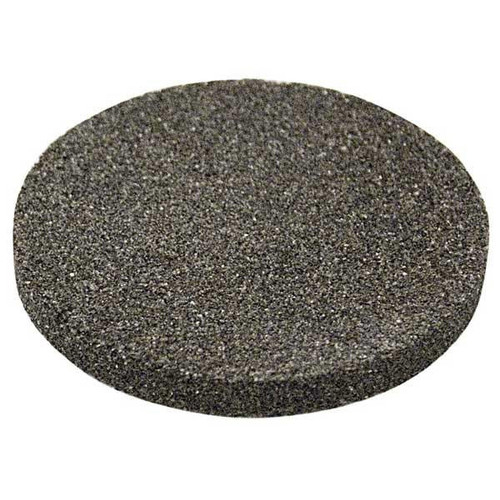

This Porous Stone measures 1.4in (35.6mm) in diameter, 0.25in (6.4mm) in thickness, and is made from durable aluminum oxide material. Designed for geotechnical testing, the rigid disc supports cylindrical soil samples while facilitating two-way fluid flow.

We offer a wide range of Porous Stones for various lab applications, including triaxial shear, permeability, direct shear, consolidation, and more. These stones enable the flow and measurement of water and other permeants during testing while preventing fine particles from contaminating the system. With a permeability range of 15-18ft³ (424-510L) of air per square foot and an average pore size of 179µm, our high-quality porous stones ensure reliable performance. All stones are ready for immediate shipment.

Types of Porous Stones:

• Aluminum Oxide Round Porous Stones: The most popular option, available in a wide range of diameters with thicknesses of 0.25in (6.3mm) or 0.5in (12.5mm).
• Sintered Bronze Round Porous Stones: Offered in popular sizes with thicknesses of 0.125in (3.2mm) or 0.25in (6.3mm).
• Aluminum Oxide Square Porous Stones: 0.25in thick and machined from aluminum oxide, available in sizes from 1.953 x 1.953in (50 x 50mm) to 3.985 x 3.985in (101 x 101mm).

Key Specifications:

• Shape: Round
• Size: 1.4in (35.6mm)
• Thickness: 0.25in (6.35mm)
• Material: Aluminum Oxide

Complies with Test Methods:

• AASHTO T297
• AASHTO T296
• ASTM D2435
• ASTM D4767
• ASTM D2850
• ASTM D5084
