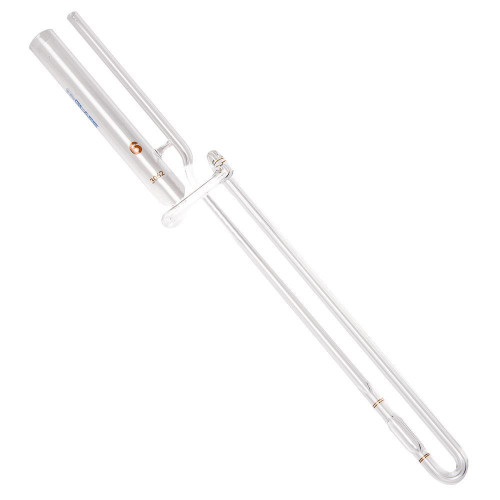

Zeitfuchs Cross-Arm Viscometer, Size 2

Zeitfuchs Cross-Arm Viscometer, Size 2

Zeitfuchs Cross-Arm Viscometers are expertly designed to determine the kinematic viscosity of liquid asphalt (bitumen) and road oils at 140°F (60°C), and asphalt cements at 275°F (135°C), in accordance with ASTM and AASHTO standards. These viscometers are available in various models to accommodate a broad spectrum of product viscosities, ranging from 0.6 to 100,000 centistokes (cSt). Each model guarantees a high degree of accuracy, with a precision of ±0.2% within its stated viscosity range.

One of the key design benefits is the small sample volume requirement, typically between 1 to 3mL. This feature, combined with the cross-arm design, allows for convenient filling, testing, and cleaning while the viscometer remains immersed in a Constant Temperature Viscosity Bath. This eliminates the need to remove the unit from the bath between tests, streamlining the workflow and improving efficiency. For proper operation, a minimum bath immersion depth of 9in (230mm) is required.

To ensure accuracy and traceability, each viscometer is delivered with a unique Certificate of Calibration. A compatible holder with a 2in (51mm) diameter is necessary for operation and is available for separate purchase.

Features:

• Measures a wide viscosity range from 0.6 to 100,000 centistokes (cSt)
• Small sample volume (1–3mL) for efficient testing
• Can be conveniently filled and cleaned while immersed in a temperature bath
• Fully compliant with AASHTO T 201 and ASTM D445, D446, and D2170/2170M standards
• Delivers high precision of ±0.2%

Included Items:

• Zeitfuchs Cross-Arm Viscometer
• Certificate of Calibration

Accessories:

• Plastic Viscometer Holder: Required for securing the viscometer in the bath; purchased separately.
• Constant Temperature Viscosity Bath: Essential for maintaining precise sample temperatures as stipulated by ASTM D445. Features selectable temperature presets and variable control options.

Specifications:

• Meets Standards: AASHTO T 201, ASTM D445, ASTM D446, ASTM D2170/2170M
• Viscosity Range: 2–10 Centistokes
• Approximate Constant: 0.01 cSt/s
• Required Bath Depth: 9in (230mm)
• Required Sample Volume: 1-3mL
