Steel Column Form for Concrete Forming, 36in Diameter x 1ft

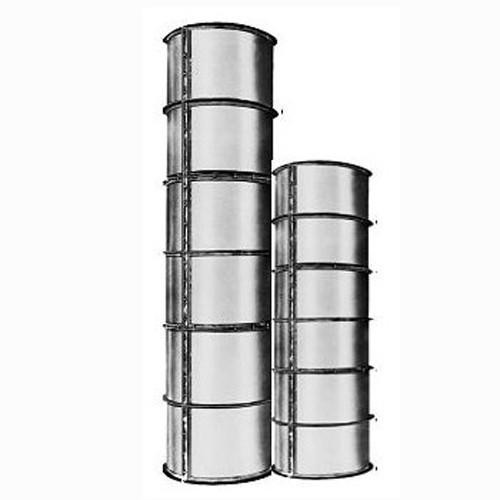

Heavy Duty Steel Column Form for Concrete Forming, 36in Dia X 1ft

Deslauriers Heavy Duty Steel Column forms develop an exceptionally smooth, hard surface remarkably free of voids and with a minimum number of indistinct seams. The forms are galvanized constant radius steel half round sections and quarter round sections (for forms over 48" in diameter) bolted into units for crane handling on the jobsite.

Vertical and horizontal seams, opened and closed with each pour, are connected with high speed bolts to speed setting and stripping.

In addition to the standard column diameters shown, custom diameters and lengths are also available.

Lateral pressure should not exceed 3000 PSF on forms through 36" diameter or 2000 PSF on forms over 36" diameter.

Built-in 1-1/2" lifting holes on most 4ft and 8ft forms. Lifting design of 4000 pound per hole or 8000 pounds assembled. Deslauriers recommends using lifting spreader bar for lifting all column forms.

 Deslauriers Forming Manual





 List of Standard Rental Forms





 Steel Column Forms



View full line of Concrete Forming items and Concrete Tremie Pipe and Products

The Heavy Duty Steel Column Form for Concrete Forming, 36in Dia X 1ft, manufactured by Deslauriers, is the perfect solution for constructing sturdy and smooth concrete columns. These column forms are designed with precision, resulting in a hard surface that is remarkably free of voids and indistinct seams.

The forms are made from galvanized constant radius steel half round sections and quarter round sections (for forms over 48" in diameter), which are bolted into units for easy handling on the construction site. The vertical and horizontal seams of the forms can be opened and closed with high-speed bolts, allowing for quick and efficient setting and stripping.

While the standard column diameters are shown, Deslauriers also offers custom diameters and lengths, providing flexibility to meet specific project requirements. It is important to note that the lateral pressure on the forms should not exceed 3000 PSF for forms through 36" diameter or 2000 PSF for forms over 36" diameter.

For convenient lifting during construction, most 4ft and 8ft forms come with built-in 1-1/2" lifting holes. These forms have a lifting design with a capacity of 4000 pounds per hole or 8000 pounds when assembled. Deslauriers recommends using a lifting spreader bar for lifting all column forms, ensuring safe and efficient handling.

To assist with the proper use and application of the Heavy Duty Steel Column forms, Deslauriers provides a comprehensive forming manual, available for download. Additionally, a list of standard rental forms and steel column forms is also accessible, offering further support and guidance.

In addition to the Heavy Duty Steel Column forms, Deslauriers offers a full line of concrete forming accessories and concrete tremie pipe and products. These products are designed to complement the column forms, providing a complete solution for all concrete construction needs.

When it comes to constructing durable and high-quality concrete columns, the Heavy Duty Steel Column Form for Concrete Forming, 36in Dia X 1ft, from Deslauriers is the ideal choice. With its exceptional construction, ease of handling, and versatility, this column form ensures efficient and reliable results for any construction project.
