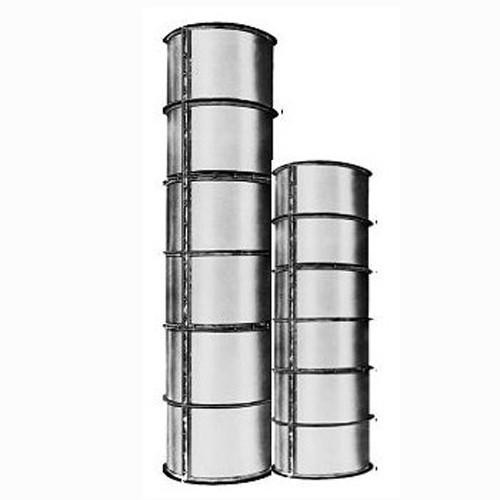

Heavy Duty Steel Column Form for Concrete Forming, 34in Dia X 2ft
Deslauriers Heavy Duty Steel Column forms develop an exceptionally smooth, hard surface remarkably free of voids and with a minimum number of indistinct seams. The forms are galvanized constant radius steel half round sections and quarter round sections (for forms over 48" in diameter) bolted into units for crane handling on the jobsite.
Vertical and horizontal seams, opened and closed with each pour, are connected with high speed bolts to speed setting and stripping.
In addition to the standard column diameters shown, custom diameters and lengths are also available.
Lateral pressure should not exceed 3000 PSF on forms through 36" diameter or 2000 PSF on forms over 36" diameter.
Built-in 1-1/2" lifting holes on most 4ft and 8ft forms. Lifting design of 4000 pound per hole or 8000 pounds assembled. Deslauriers recommends using lifting spreader bar for lifting all column forms.
The Heavy Duty Steel Column Form for Concrete Forming is a reliable and efficient solution for your construction needs. Made by Deslauriers, these forms are designed to produce a smooth and solid surface, free of voids and with minimal seams. They are constructed with galvanized constant radius steel half round and quarter round sections, which are bolted together for easy handling with a crane on the jobsite.
The vertical and horizontal seams can be quickly opened and closed with high speed bolts, allowing for fast setting and stripping. This saves you time and effort during the construction process. Additionally, Deslauriers offers custom diameters and lengths, ensuring that you can find the perfect fit for your specific project.
To ensure proper usage, it is recommended that the lateral pressure on the forms does not exceed 3000 pounds per square foot for forms up to 36" in diameter, and 2000 pounds per square foot for larger forms. Safety is a top priority, which is why the forms feature built-in 1-1/2" lifting holes on most 4ft and 8ft forms. These holes are designed to withstand a weight capacity of 4000 pounds per hole or 8000 pounds when assembled. Deslauriers also advises using a lifting spreader bar for all column forms to ensure secure and safe lifting.
To provide further assistance, Deslauriers offers a comprehensive Forming Manual, which provides detailed instructions on how to use their products effectively. They also offer a List of Standard Rental Forms, as well as other resources such as Steel Column Forms.
If you are in need of other concrete forming accessories or tremie pipe and products, Deslauriers offers a full line of items to complement your construction needs. With their reliable and high-quality products, Deslauriers is a trusted name in the industry and can provide you with the solutions you need for successful concrete forming projects.
