Steel Column Form for Concrete Forming, 14in Diameter x 1ft

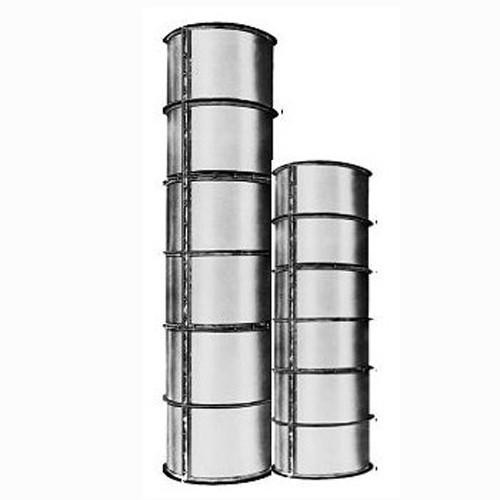

Heavy Duty Steel Column Form for Concrete Forming, 14in Dia X 1ft

Deslauriers Heavy Duty Steel Column forms develop an exceptionally smooth, hard surface remarkably free of voids and with a minimum number of indistinct seams. The forms are galvanized constant radius steel half round sections and quarter round sections (for forms over 48" in diameter) bolted into units for crane handling on the jobsite.

Vertical and horizontal seams, opened and closed with each pour, are connected with high speed bolts to speed setting and stripping.

In addition to the standard column diameters shown, custom diameters and lengths are also available.

Lateral pressure should not exceed 3000 PSF on forms through 36" diameter or 2000 PSF on forms over 36" diameter.

Built-in 1-1/2" lifting holes on most 4ft and 8ft forms. Lifting design of 4000 pound per hole or 8000 pounds assembled. Deslauriers recommends using lifting spreader bar for lifting all column forms.

 Deslauriers Forming Manual

 Steel Column Forms



View full line of Concrete Forming items and Concrete Tremie Pipe and Products

The Heavy Duty Steel Column Form for Concrete Forming is a reliable and durable solution for creating concrete columns with exceptional smoothness and strength. Designed by Deslauriers, these forms are constructed using galvanized constant radius steel half round sections and quarter round sections, ensuring a hard surface that is free from voids.

With high-speed bolts connecting the vertical and horizontal seams, these column forms can be easily set and stripped, making the construction process more efficient. Custom diameters and lengths are also available, allowing for versatility and customization to suit your specific project needs.

It is important to note that the lateral pressure on these forms should not exceed 3000 pounds per square foot for forms up to 36 inches in diameter, or 2000 pounds per square foot for forms over 36 inches in diameter. This ensures the structural integrity of the forms during pouring and curing.

Most 4-foot and 8-foot forms come with built-in 1-1/2 inch lifting holes, allowing for easy crane handling. The lifting design allows for a weight capacity of 4000 pounds per hole or 8000 pounds when assembled. To ensure safe lifting, Deslauriers recommends using a lifting spreader bar for all column forms.

To further assist with the use and installation of these forms, Deslauriers provides a comprehensive Forming Manual which can be downloaded as a PDF. Additionally, a PDF guide specifically for Steel Column Forms is also available for download.

Explore the full range of Concrete Forming items and Concrete Tremie Pipe and Products offered by Deslauriers. These accessories and products are designed to complement the Heavy Duty Steel Column Form and provide a comprehensive solution for all your concrete forming needs.

Choose the Heavy Duty Steel Column Form for Concrete Forming by Deslauriers to ensure a quality construction process and achieve the desired results for your concrete columns. With its exceptional strength, smooth surface, and ease of use, this form is a reliable choice for any construction project.
