Rainhart Soil Compaction Analyzer (SCA)

Take the guesswork out of Proctor and modified Proctor testing with the Rainhart Soil Compaction Analyzer (SCA). Designed exclusively for the Rainhart Proctor Soil Compactor, the SCA is an advanced system that measures, monitors, and controls soil compaction in real time, delivering unparalleled quality assurance for your lab.

Seamless Integration and Automated Control The SCA is engineered for effortless integration. It mounts quickly and easily on top of your Rainhart Proctor Compactor, and once installed, it takes full control. The system automatically manages the start and stop functions of the compactor, guaranteeing that the precise amount of energy is delivered to every sample, every time. This eliminates procedural errors and ensures consistent, repeatable results that meet the highest standards.

Real-Time Data for Immediate Insights As the compactor operates, the SCA instantly captures and displays all relevant data on the connected laptop monitor. By rapidly sampling the rammer's position, velocity, and known mass, it calculates the exact impact energy imparted to the specimen with each blow and lift. This allows you to see a strong correlation with lab-calculated soil moisture-density values as the test happens, ensuring accuracy and confidence in your results.

Approved for Industry-Leading Standards The Rainhart Soil Compaction Analyzer is the only SCA on the market approved by the Texas Department of Transportation (TxDOT) for the TEX-113E analysis of soil compaction testing, making it an essential tool for labs adhering to this critical standard.

Key Features & Benefits:

• TxDOT Approved: The only system approved for the rigorous TEX-113E standard.
• Eliminates Manual Calculations: Automates complex calculations, saving valuable technician time and reducing the risk of human error.
• Enhanced Safety: Equipped with an emergency stop switch for immediate shutdown, adding a crucial layer of safety to your operations.
• User-Friendly Operation: Features a simple setup process and intuitive software that allows you to operate the entire soil compactor from a laptop.
• Comprehensive Data Management: Securely stores all test records digitally. The data recall function allows for easy verification that all test protocols and procedures were followed correctly, perfect for audits and quality control.

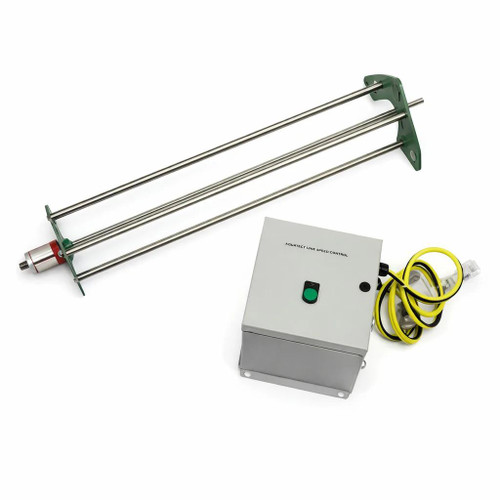

Specifications:

• Laptop Computer & Cables: 8 lbs (20” x 16” x 4”)
• Control Box Assembly & Hardware: 14 lbs (16” x 14” x 14”)
• Sensor Stand & Sensor: 20 lbs (48” x 10” x 10”)
• Power Options: Standard and 220VAC / 50Hz models available.
• Model Number: 662SCA

The Rainhart Soil Compaction Analyzer is the definitive solution for real-time analysis of soil compaction testing, bringing accuracy, efficiency, and safety to your geotechnical lab.
