SmartLoader Asphalt Load Frame, IDEAL for Compression Tests
What is Compression Testing
Concrete Compression Test Machine, Compression testing is a basic method to test the strength, durability and deformation characteristics of materials like asphalt and soil. At the heart of this process is the load frame, a robust device that applies controlled force and measures how materials respond to compression. The SmartLoader Universal Load Frame is the smart solution for these applications, with fully automatic testing process that minimizes human error.
Asphalt Load Frame: SmartLoader Universal for Asphalt and Soil Compression
SmartLoader Overview

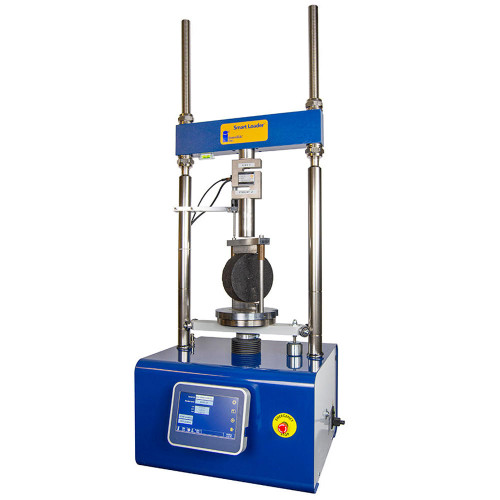

The InstroTek SmartLoader Universal Load Frame is a lab gradetesting solution for raw materials testing labs. The SmartLoader Universal Load Frame is available in different models to meet specific testing requirements and capacities for asphalt and soil testing. This load frame is great for asphalt and soil compression testing, monotonic loading tests and Balanced Mix Design (BMD) testing. With its features and user interface the SmartLoader is a cost effective and efficient option for labs looking to upgrade their testing capabilities. Whether you’re testing soil or asphalt the SmartLoader Universal Load Frame gives you precision and reliability in every test.
SmartLoader Load Frame for Asphalt and Soil Compression
Universal Load Frame for Asphalt and Soil Compression
The InstroTek SmartLoader Universal Load Frame is a lab grade testing solution for raw materials testing labs. This load frame is great for Asphalt and Soil compression testing, monotonic loading tests, Balanced Mix Design (BMD) testing and more. With its features and user interface the SmartLoader is the perfect option for labs looking for a cost effective testing solution.
The SmartLoader Universal Load Frame has advanced data acquisition features to collect data in real-time and precise control during asphalt and soil compression tests.
The SmartLoader meets various industry standards including IDEAL-CT (TTI Method) ASTM D8225, SCB Cracking Tests (TP124, ASTM D8044). The SmartLoader supports the semi-circular bend (SCB) test, which evaluates the fracture energy and cracking resistance of asphalt pavements. SHEAR BOND STRENGTH TEST (Tex-249-F) is also supported, and the SmartLoader can measure shear strength, an important property for assessing material performance under shear forces. TSR (AASHTO T283) is included, and the SmartLoader facilitates TSR testing to assess the tensile strength ratio of asphalt samples, a key indicator of pavement durability. The new IDEAL RT-Jig (Rutting Test) is also available. With its testing capabilities and industry standards the SmartLoader is the perfect option for labs looking for a reliable asphalt testing solution.
Universal Load Frame for Asphalt and Soil Compression Tests
IDEAL-CT (TTI Method) ASTM D8225, SCB Cracking Tests (TP124, ASTM D8044), SHEAR BOND STRENGTH TEST (Tex-249-F), and TSR (AASHTO T283) NEW IDEAL RT-Jig (Rutting Test). Learn more about our non destructive testing equipment for accurate strength assessment and inspections. Learn more about non destructive concrete testing for accurate strength assessment and inspections.
The InstroTek SmartLoader is a variable speed universal load frame that can do a multitude of loading tests including the Lottman test for indirect tensile strength in asphalt testing. It can also do Marshall stability tests which are critical for determining the flow resistance of asphalt mixtures. The SmartLoader measures plastic flow, providing valuable data on the asphalt mixture’s deformation and resistance during Marshall stability and flow tests.
The SmartLoader is great for Balanced Mix Design (BMD) testing and comes with BMD tests preprogrammed including IDEAL-CT (Cracking Test), IDEAL-RT (Rutting Test), IFIT and LSU SCB test. Additional tests can be programmed using the LCD touch screen and saved for later use. Switching between tests is quick and easy using the touch-screen menu. The SmartLoader has 8-input channels and can be operated in load control and displacement control. Compact design fits on any lab benchtop.
The SmartLoader is a affordable load frame with all the accessories, testing and analysis jigs and analysis software to do asphalt and compression tests. Contact an InstroTek representative for more information on the SmartLoader Universal Load Frame.
The SmartLoader - The SMART way to do asphalt loading tests
Asphalt:
-
IDEAL-CT
-
IDEAL-RT
-
SCB (TP124, ASTM D8044)
-
DIRECT SHEAR on asphalt interlayers
-
IDT/TSR
-
MARSHALL
-
indirect tensile strength
-
marshall stability
SmartLoader Features
The InstroTek SmartLoader Universal Load Frame has many features. Some of which are:
-
Fully automatic test process: Automatic testing with minimal user intervention
-
Advanced testing: Asphalt Permeability Test Machines, Asphalt testing, asphalt penetration test, compression tests and more
-
Cost effective: Affordable for labs
-
Easy to use: User friendly interface
-
High precision: High accuracy and reliability
Features
-
Required for stability testing to meet ASTM and AASHTO standards in asphalt material testing
-
Many Test Fixtures Available
-
Color touchscreen; 320 x 240 pixels
-
8-input channels for load, displacement etc.
-
Automatic test process with real-time acquisition and load/displacement or load or deformation vs time curve
-
Removable memory can store 1000s of tests
-
PC analysis software available for tests
InstroTek SmartLoader Universal Load Frame for Asphalt and Soil Compression Tests
-
Weight: 130kg (300lbs)
-
Height: 145cm (66")
-
Foot Print: 50cm W x 55cm D (20" W x 22" D)
-
Power: 110/120V (220V optional)
-
Max Compression: 50kN (11,000lbs), Optional [10 KN (2200 Ibs)]
-
Max Tension: 25kN (5,600lbs)
-
Ram Speed: 0.01 to 51 mm/min (0.0004 to 2.0 in/min)
-
Ram Travel: 100 mm (4")
Specifications
The SmartLoader is designed to be robust and flexible for all testing needs. With a load capacity of 50 kN (11,000 lbs) and an optional 10 kN (2,200 lbs) model, it can do standard and special tests. For additional equipment to assist when moving heavy loads, consider the Electric Power Tugger. It operates on 110/120V power and has an optional 220V configuration. material testing equipment
-
Max Compression: 50 kN (11,000 lbs)
-
Max Tension: 25 kN (5,600 lbs)
-
Ram Speed: 0.01 to 51 mm/min (0.0004 to 2.0 in/min)
-
Ram Travel: 100 mm (4")
-
Dimensions: 50cm W x 55cm D (20" W x 22" D)
-
Height: 145cm (66")
-
Weight: 130kg (300lbs)
The SmartLoader has an LCD touch screen and touch screen menu. 8-input channels for load, displacement etc. Load control and displacement control modes. Automatic test process with real-time acquisition and load/displacement or load or deformation vs time curve. Removable memory can store 1000s of tests. PC analysis software available for tests.
Conclusion
The SmartLoader is the SMART way to do asphalt and soil tests. Automatic test process, adjustable load capacity and wide speed range. Compact design and user friendly interface. Analysis software included.Get the SmartLoader Universal Load Frame for your lab and upgrade your testing capabilities. It’s compatible with many test fixtures and accessories (IDEAL-CT and IDEAL-RT jigs) to meet changing testing standards and protocols. Get accurate, fast and reliable results for material quality and safety. The SmartLoader is the SMART way to boost your lab’s compression testing.
