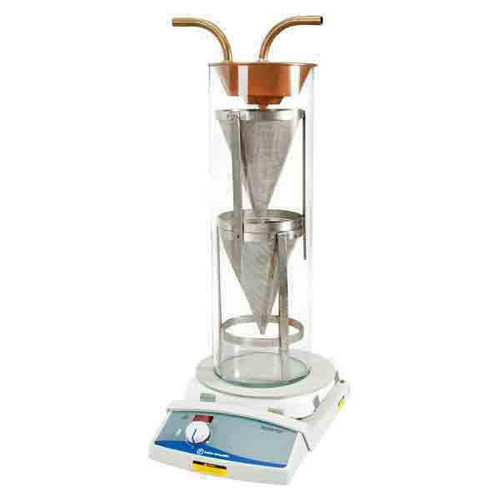

Reflux Extractor, 1,000g Capacity
Reflux Extractors are the go-to tool for reflux extraction, designed to accurately determine asphalt content in bituminous pavement mixtures. As one of the most cost-effective methods available, they are a staple in pavement testing laboratories.
How It Works
The extraction process begins with hot plates generating solvent vapor that passes around and through a sample contained in two wire mesh cones lined with filter paper. The reflux solvent then condenses on the water-cooled condenser and percolates through the sample repeatedly until all the bitumen has been fully extracted. This thorough process ensures accurate and reliable results every time.
What's Included
Each Reflux Extractor comes as a complete, all-in-one solution, including everything you need to get started right away:
- Reflux Extractor (available in 1,000g or 2,000g capacity)
- Hot Plate
- Glass Extraction Jar with ground top
- Two interlocking wire Mesh Cones with bail handles
- Copper Condenser with water inlet/outlet tubes
- Filter Paper
- Insulating Pad
- Instructions
Technical Specifications
- Sample Capacity: 1,000g or 2,000g
- Hot Plate Diameter: 6in (152mm)
- Electrical: 115V or 230V, 50/60Hz, 7 amps
- Jar Dimensions: 6 x 18in (152 x 457mm), dia. x H
- Weight: 26.0lb (11.79kg)
Meets Standards
Reflux Extractors meet the following industry standards, ensuring your results are always accurate and compliant:
- AASHTO T 164
- ASTM D2172/2172M
