Pin Type Adapters for Sanwa Multimeters and Insulation Testers

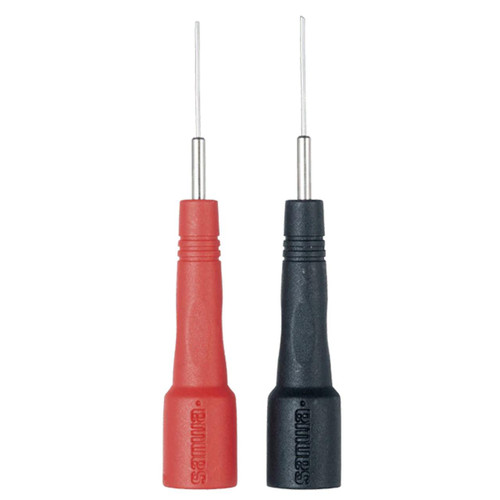

Pin Type Adapters for Sanwa Multimeters and Insulation Testers (Model TL-21A)

Enhance the precision and versatility of your Sanwa testing equipment with the TL-21A Pin Type Adapters. Specifically designed for accessing hard-to-reach test points, these adapters are an essential accessory for professionals working with intricate circuitry and high-density components.

The fine, shape-memory alloy pin tip allows for reliable contact with even the smallest leads, ensuring accurate measurements every time. Its durable construction is built to withstand the demands of daily use in the field or on the bench.

Key Features & Specifications:

• Model: TL-21A
• Total Length: Approx. 60mm
• Pin Tip Material: Shape-memory alloy for flexibility and durability
• Pin Tip Dimensions: ⌀ 0.7mm x 15mm
• Safety Notice: For current measurements, the operating range is limited to under 1A when using the 0.7mm pin tip to ensure safety and prevent damage.

Compatible Sanwa Models:

These adapters are designed to fit a wide range of Sanwa instruments, including:

Digital Multimeters

• PC Series: PC7000, PC710, PC700, PC720M, PC773, PC20
• CD Series: CD772, CD771, CD770, CD732, CD800b, CD800F, CD800a
• RD Series: RD700, RD701
• PM Series: PM300, PM3, PM11

Analog Multimeters

• EM7000
• TA55
• CX506a, YX-361TR
• SP21, SP20, SP-18D
• AP33

Clamp Meters

• DCM/DCL Series: DCM60R, DCM660R, DCL1200R, DCM400, DCL1000, CAM600S, DCM600DR, DCM400AD
• DLC460F

Insulation Testers

• HG/MG Series: HG561H, MG1000, MG500
• PDM/DM Series: PDM1529S, PDM5219S, DM1009S, DM509S, PDM509S
